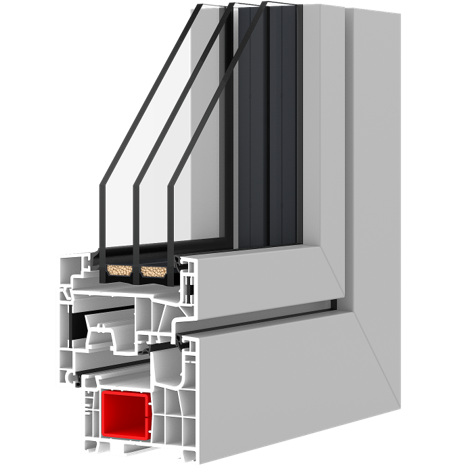

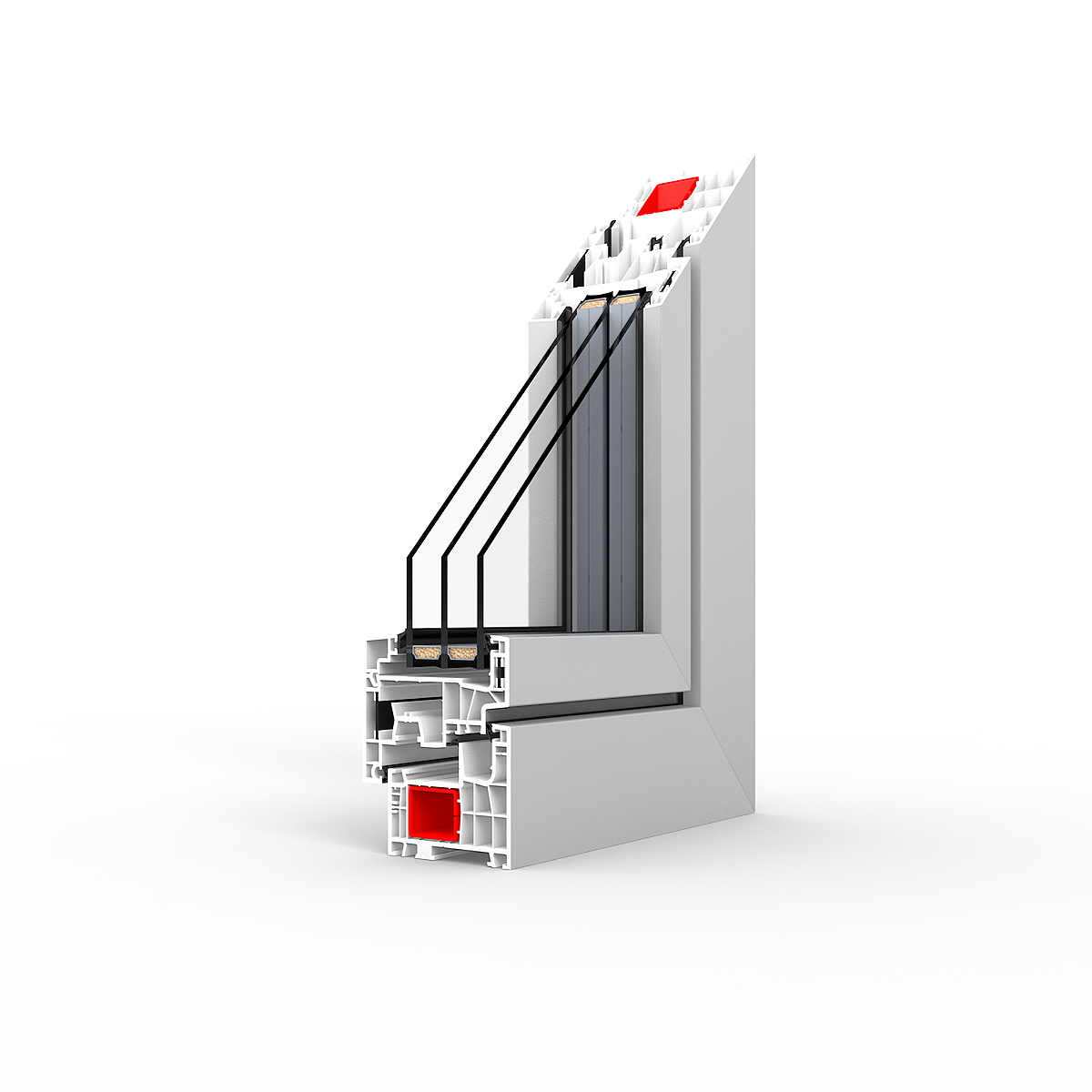

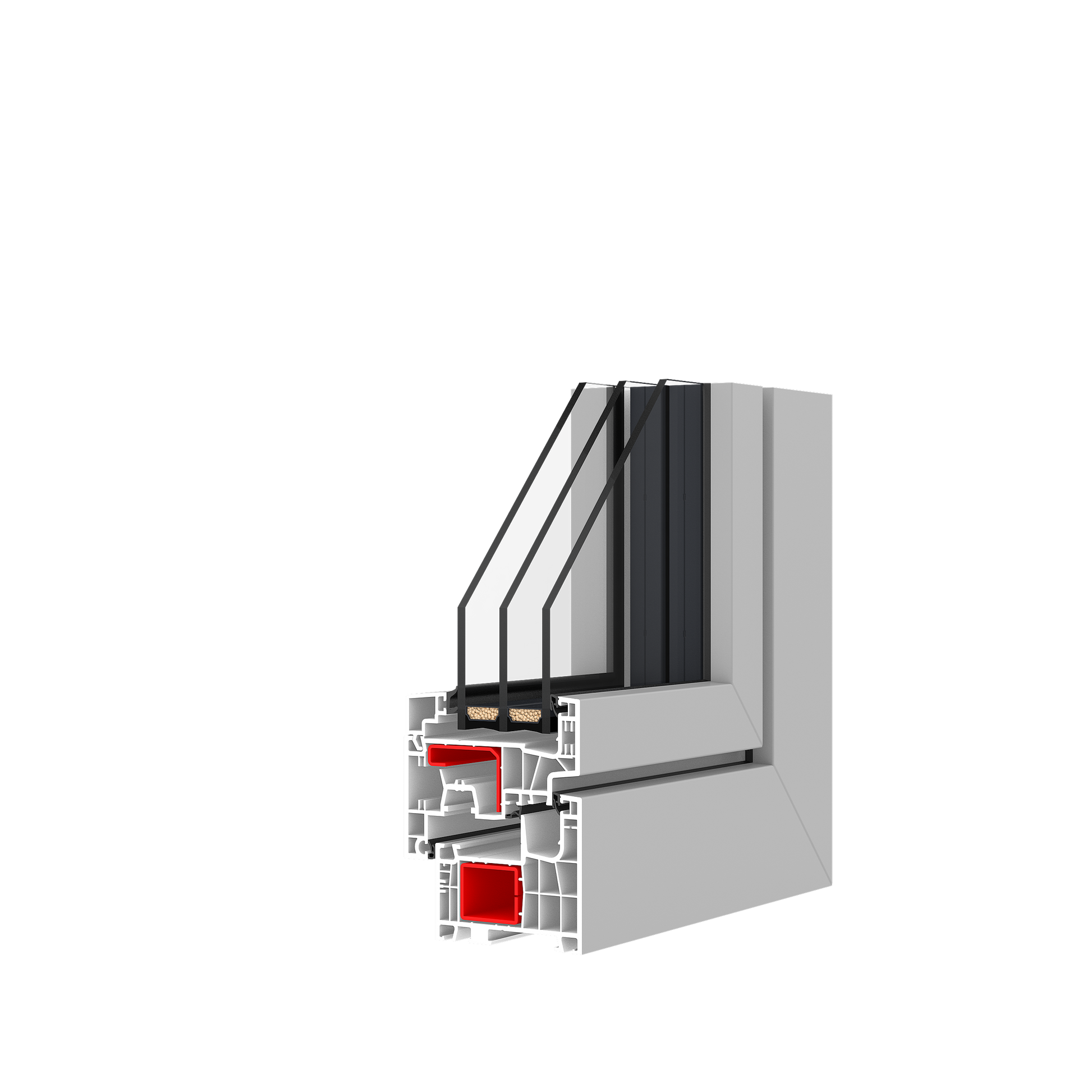

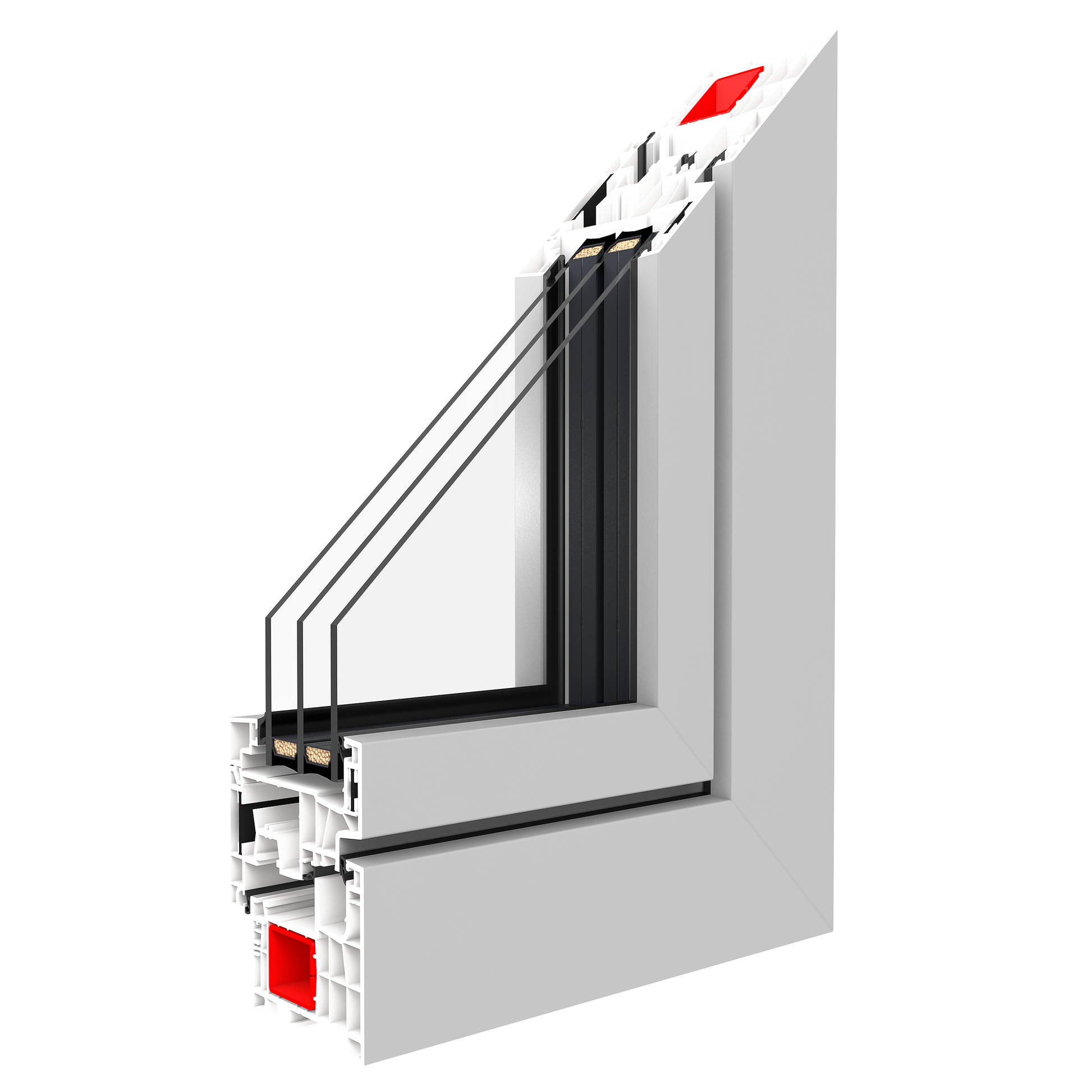

IDEAL NEO MD-FS

• double-chamber glazing package Ug = 0,5 W/(m2K)
• Swisspacer Ultimate plastic warm frame - as a free elective option
• 4 anti-theft strikers according to the size of the sash and the hardware system
• microventilation
• aluminium window handle
• handle misplacement locking mechanism
• perimeter, glazing and central gaskets in black or grey
• filling of the lower hardware groove

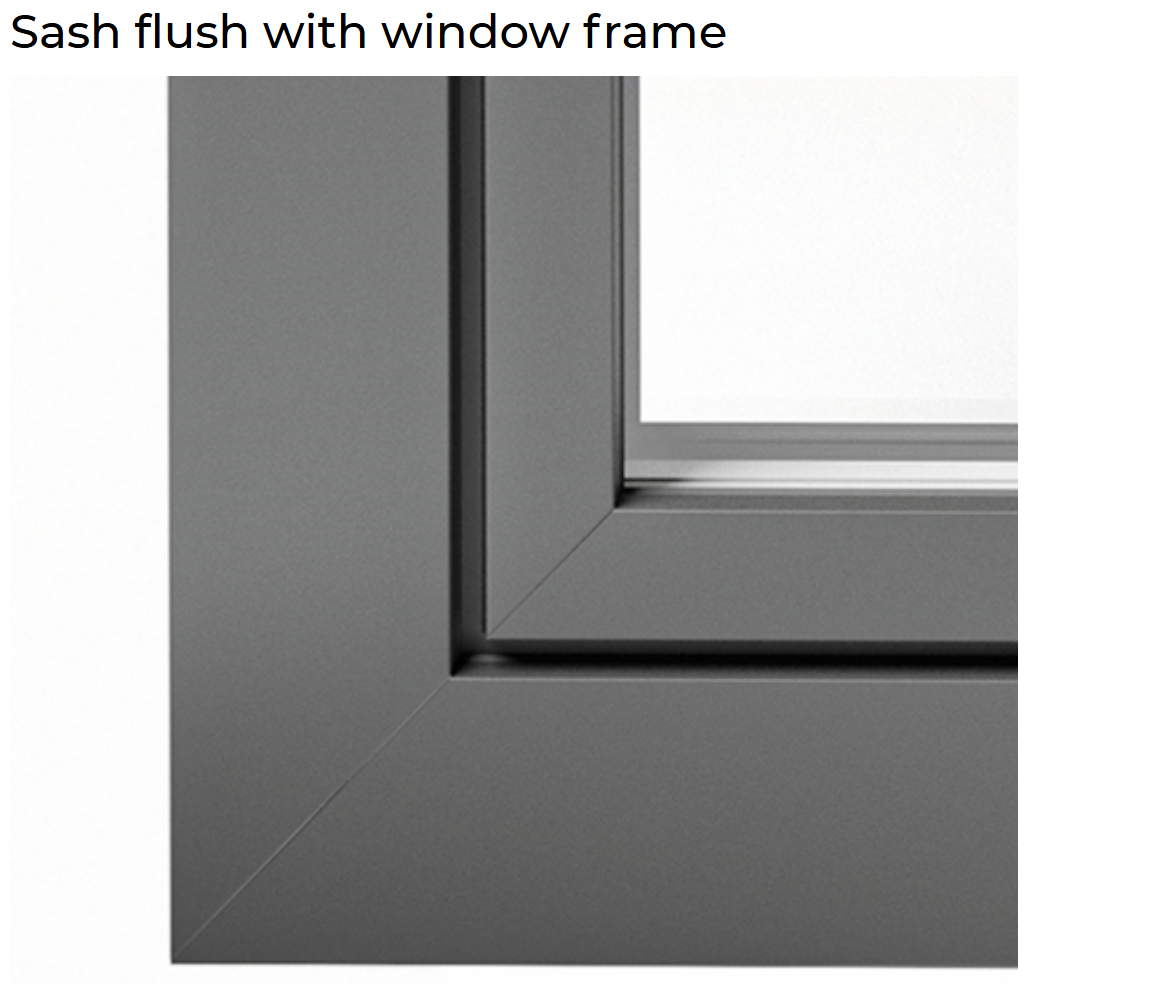

IDEAL NEO MD-FS is an extremely attractive design proposition for customers who value timeless style. A simple, symmetrical, cubist shape is the distinguishing feature of the system. Sharpes angles and geometric architecture, and at the same time visual lightness of the structure.

Sound insulation:

dB = 36

THERMAL TRANSMITTANCE:

Uw = 0,73 W/(m2K)*

NUMBER OF CHAMBERS:

6

INSTALLATION DEPTH:

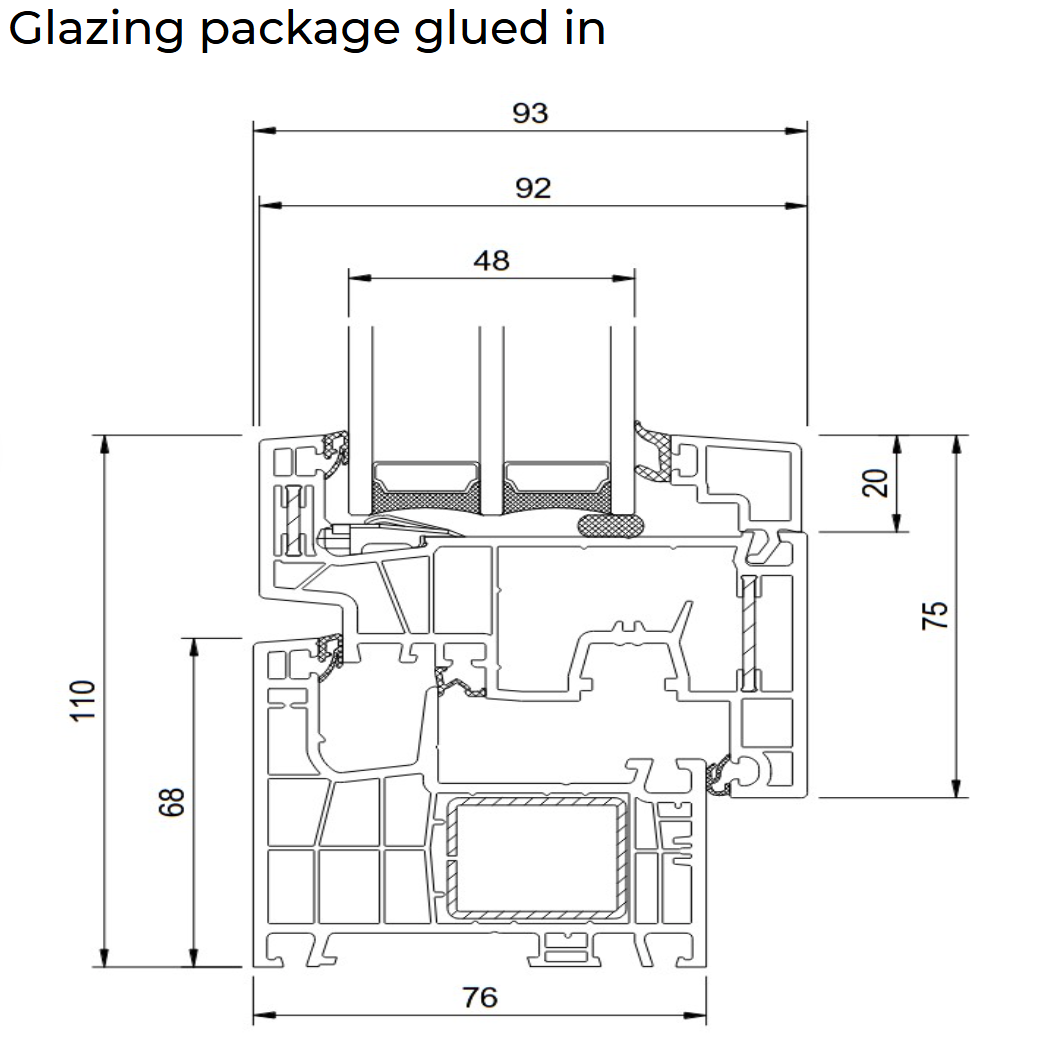

76 mm

Gaskets:

3

Glass packages:

36-68 mm
