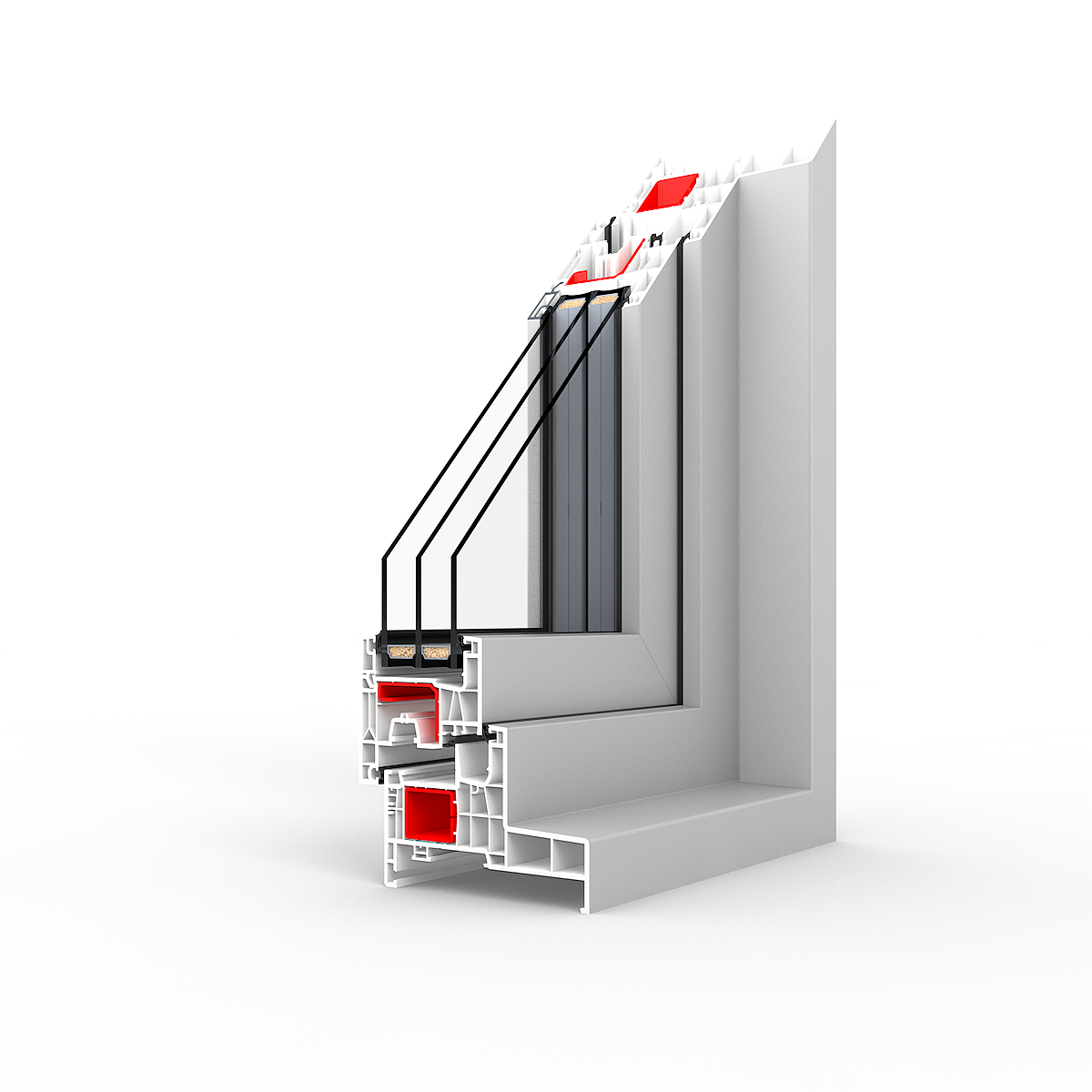

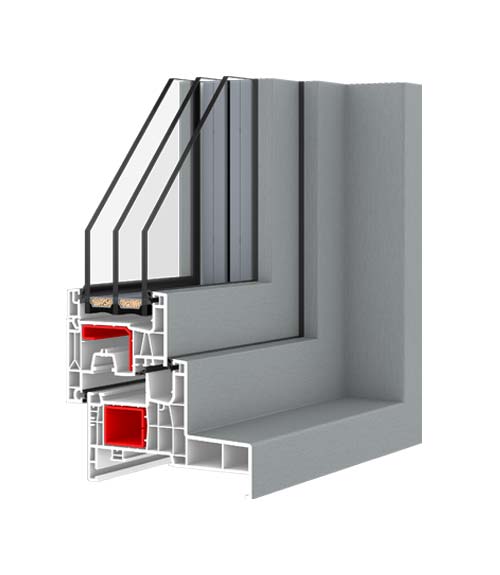

IDEAL NEO MD MONOBLOCK

• double-chamber glazing package Ug = 0,5 W/(m2K)
• Swisspacer Ultimate plastic warm frame - as a free elective option
• 4 anti-theft strikers according to the size of the sash and the hardware system
• microventilation
• aluminium window handle
• handle misplacement locking mechanism
• perimeter, glazing and central gaskets in black or grey
• filling of the lower hardware groove

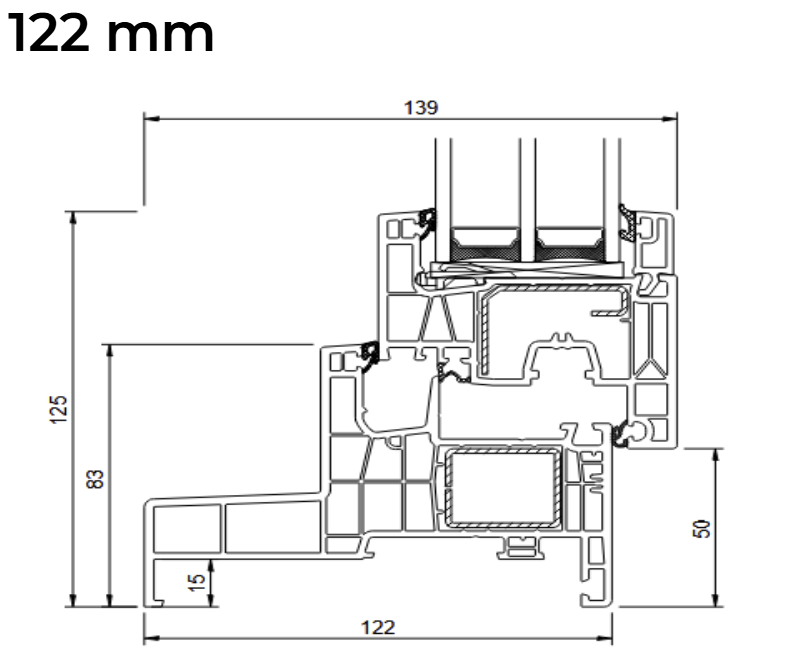

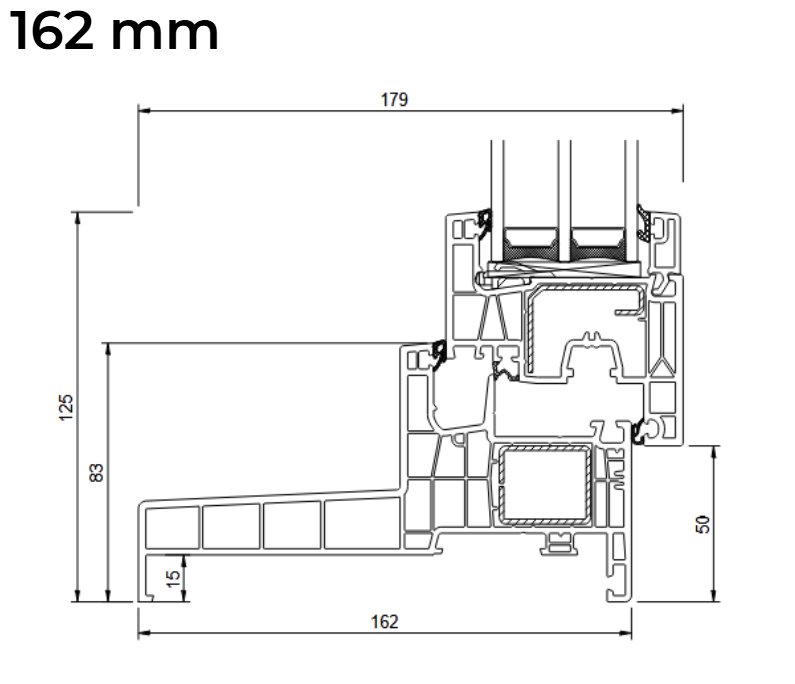

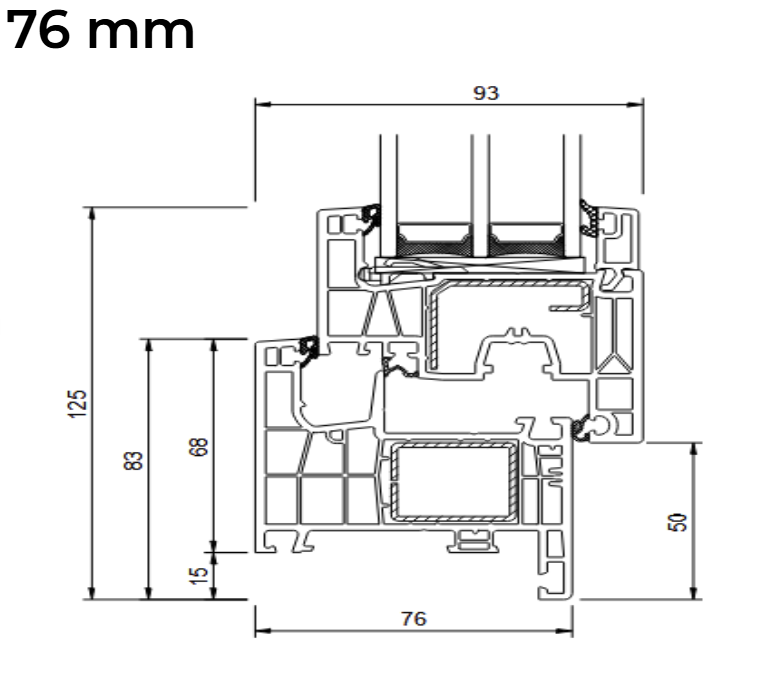

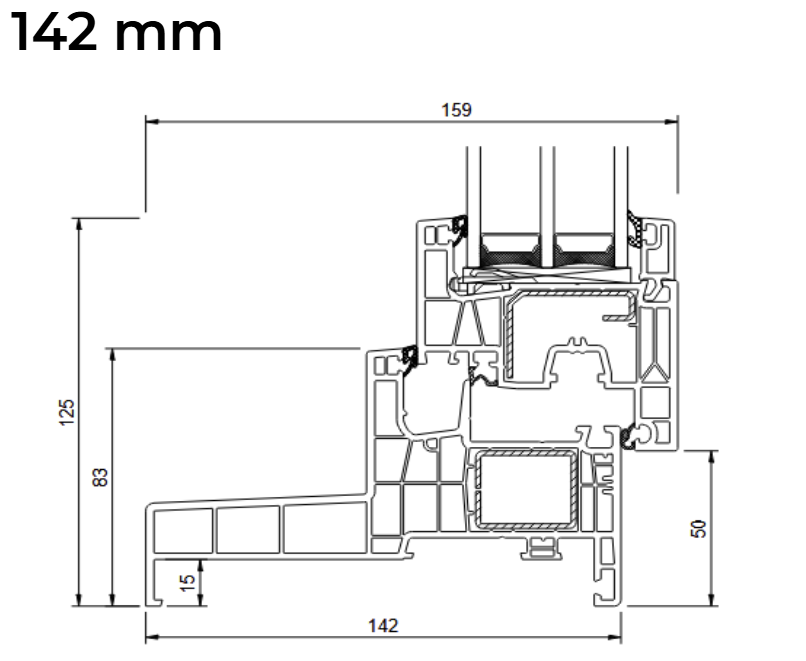

Monoblock frames are designed for the construction of windows, which are installed in a layer of insulation. The wide range of Monoblock frames (76 mm, 122 mm, 142 mm, 162 mm) allows their appropriate selection depending on the thickness of the insulation. A special shelf (window sill) located from the outer side of the frame in an aesthetic manner masks the insulation around the perimeter of the window avoiding the formation of thermal bridges. The inner rebate of the Monoblock frame ensures aesthetic installation from the inside of the room without the need of gypsum treatment.

Sound insulation:

dB = 36

THERMAL TRANSMITTANCE:

Uw = 0,76 W/(m2K)*

NUMBER OF CHAMBERS:

6

INSTALLATION DEPTH:

76 mm / 122 mm / 142 mm / 162 mm

Gaskets:

3

Glass packages:

24-52 mm
