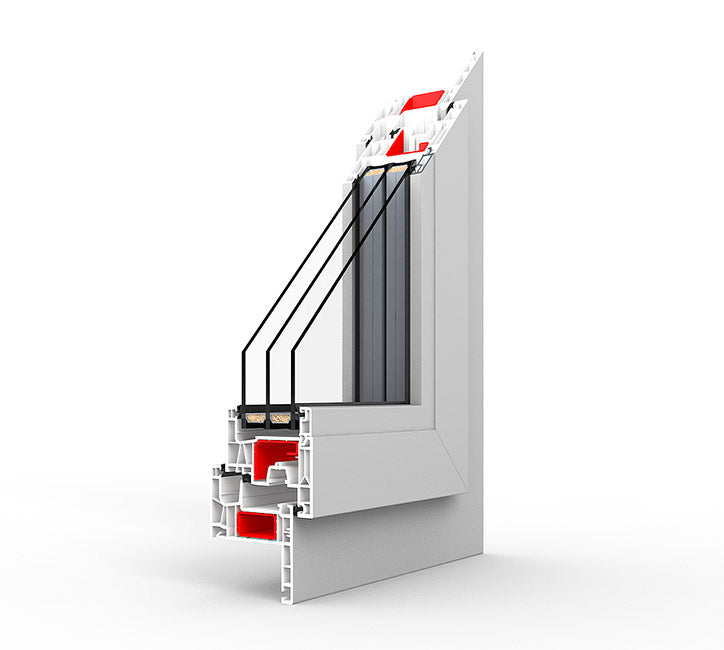

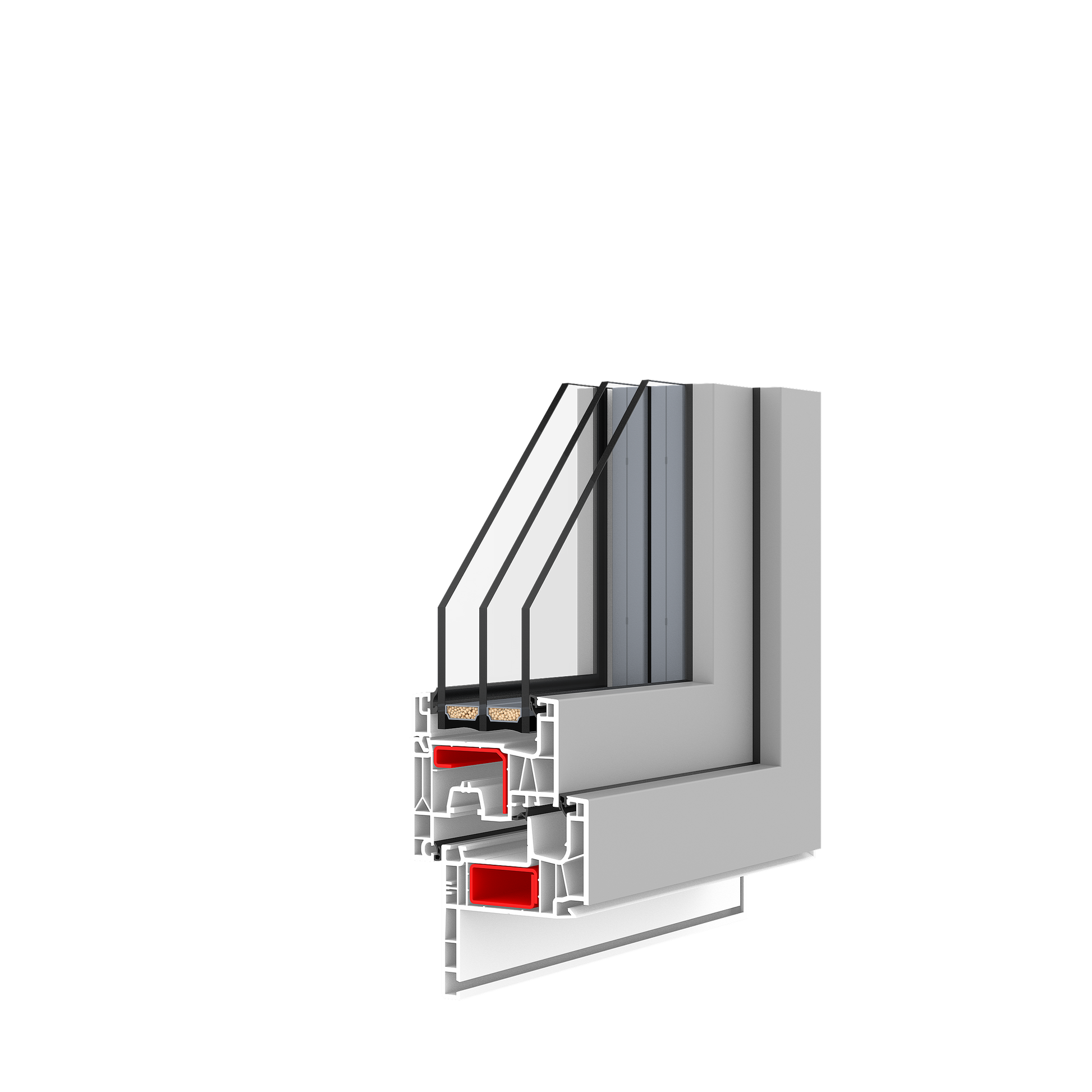

IDEAL NEO MD RENOVATION

• double-chamber glazing package Ug = 0,5 W/(m2K)
• Swisspacer Ultimate plastic warm frame - as a free elective option
• 4 anti-theft strikers according to the size of the sash and the hardware system
• microventilation
• aluminium window handle
• handle misplacement locking mechanism
• perimeter, glazing and central gaskets in black or grey
• filling of the lower hardware groove

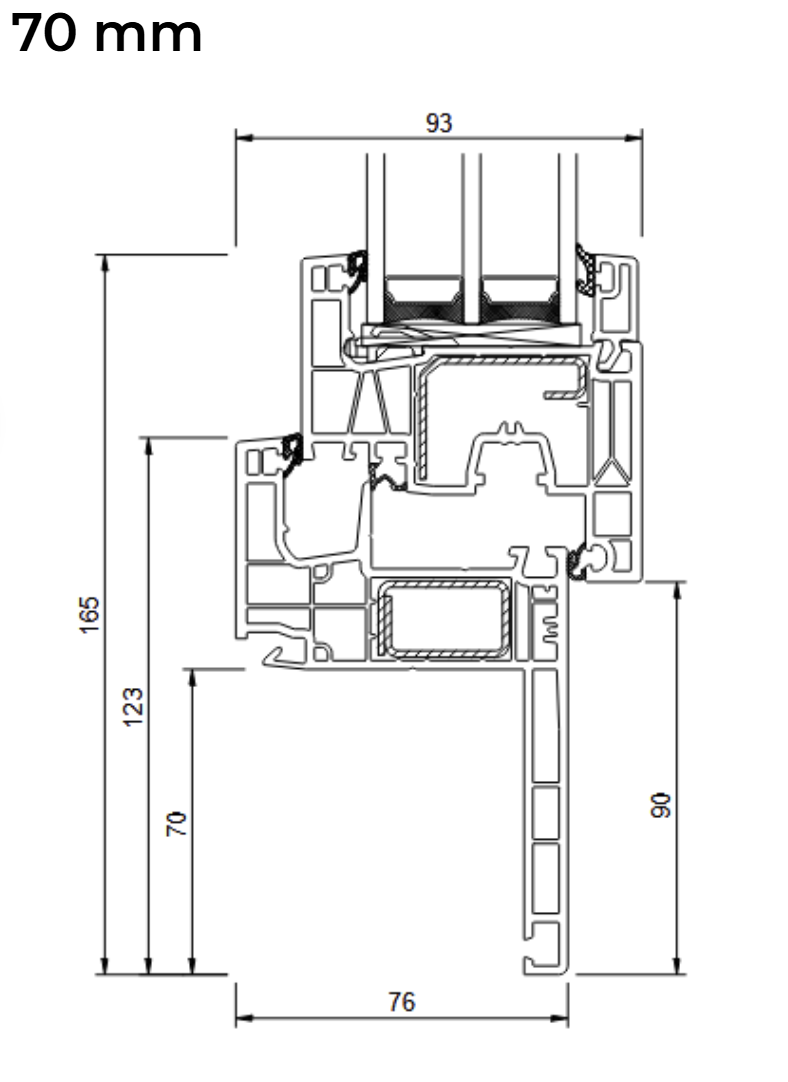

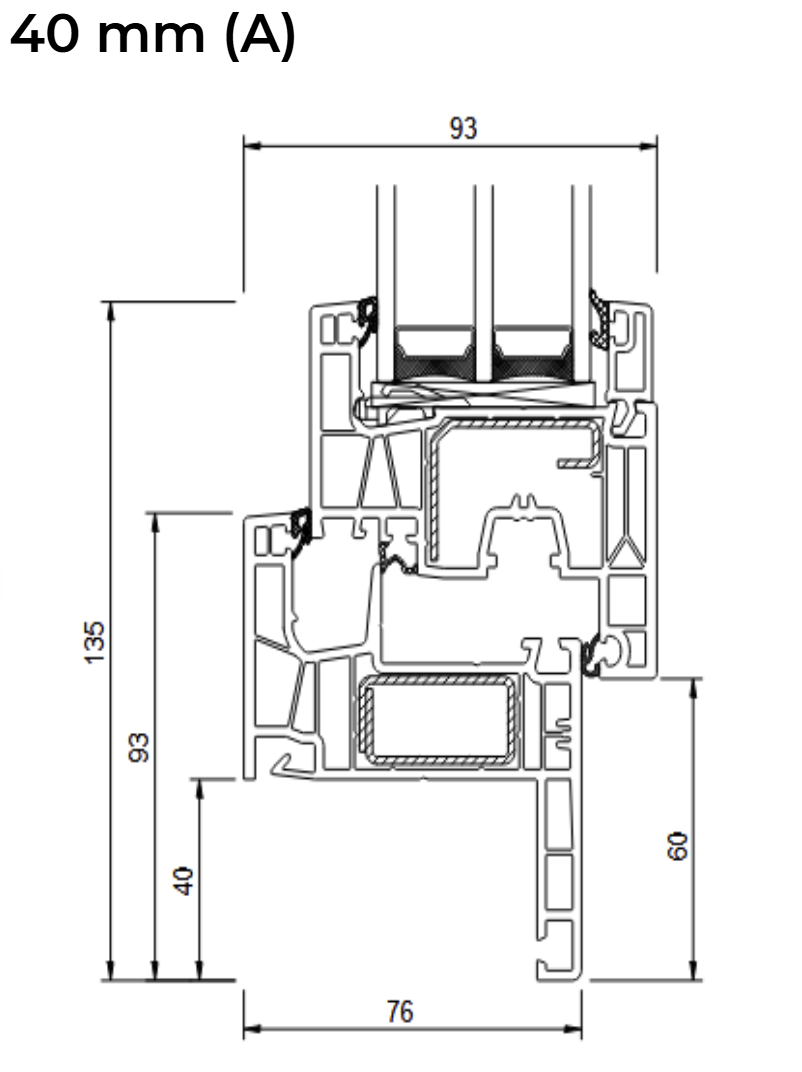

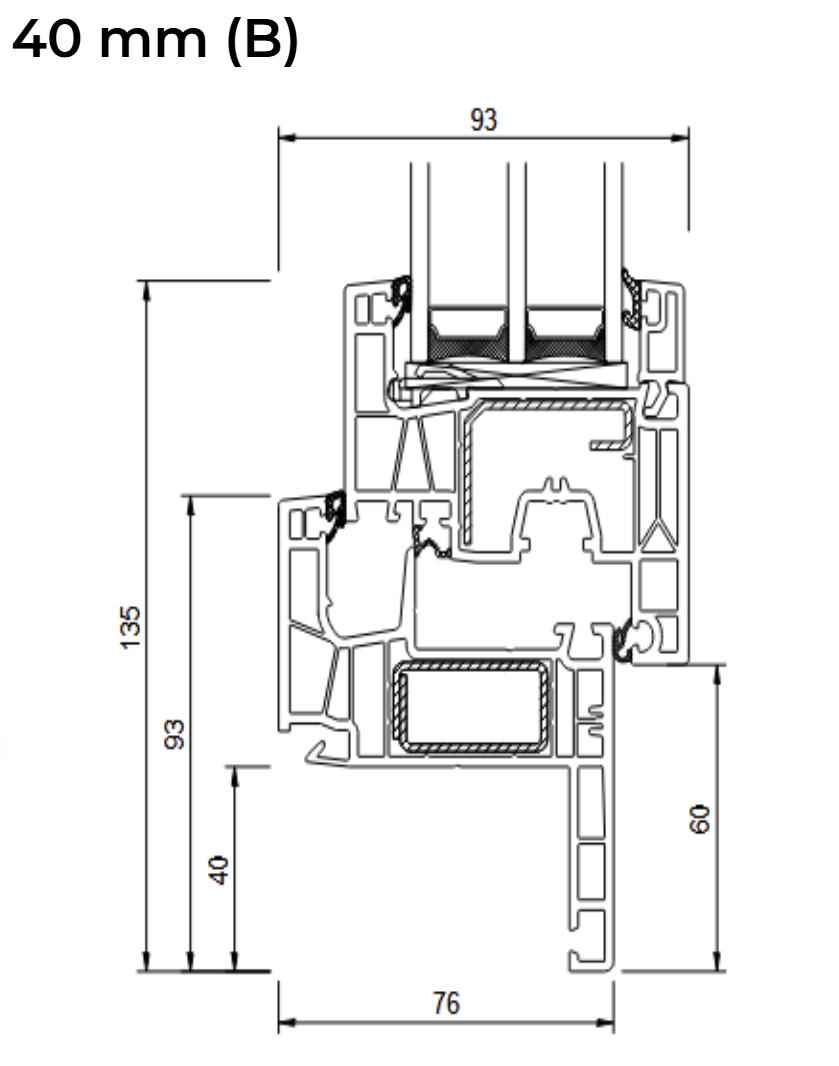

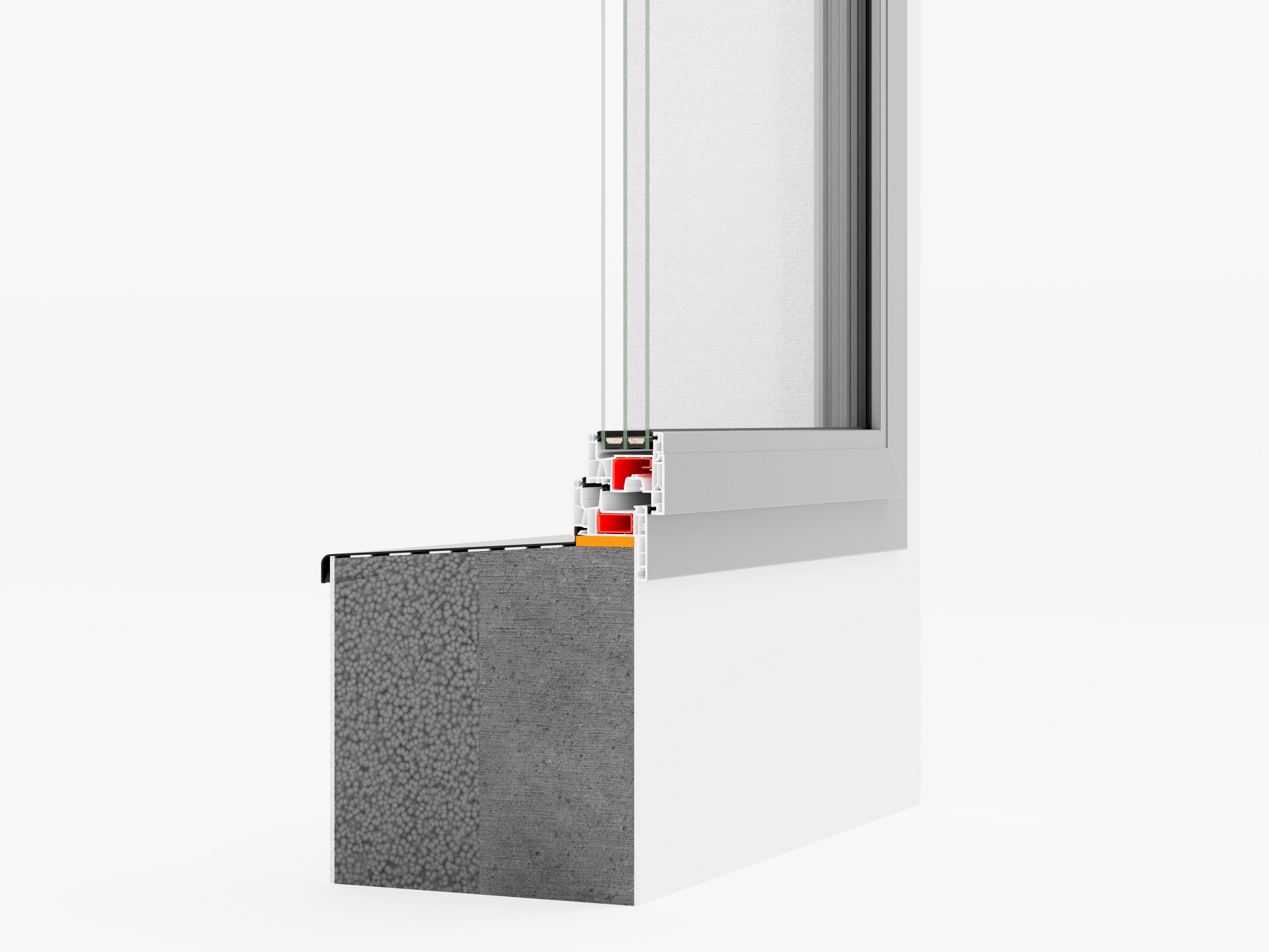

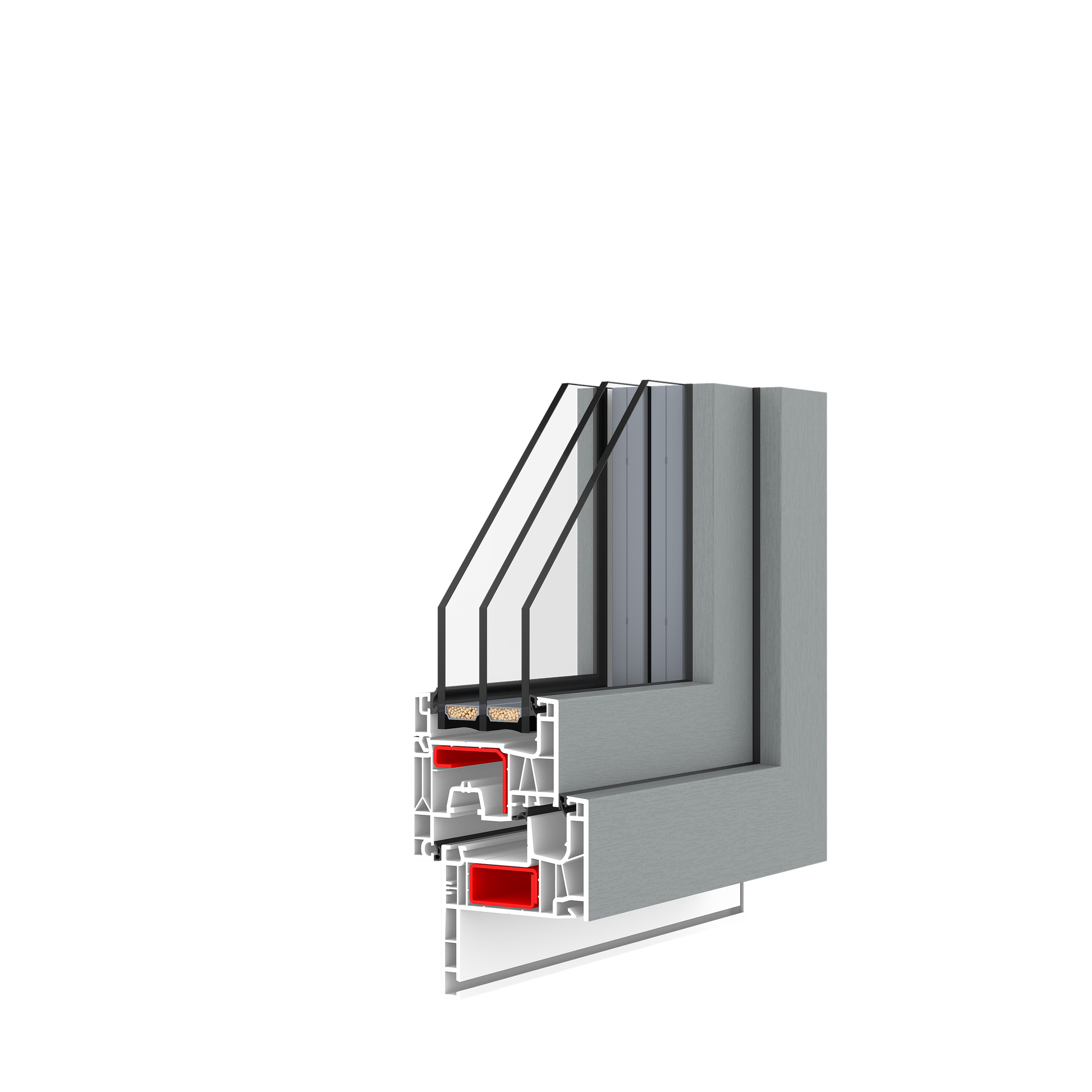

The renovation frame system is used for window installation without the need to dismantle old frames. The specificity of this type of windows is based on the use of special renovation frames with a so-called masking profile, which encompasses the wooden frame, creating a characteristic band from the inside, and on the outside we can use special housing profiles. The masking profiles in the framework have different widths (40 mm, 70 mm), but it is also possible to cut them for specific needs.

Sound insulation:

dB = 36

THERMAL TRANSMITTANCE:

Uw = 0,76 W/(m2K)*

NUMBER OF CHAMBERS:

5/6

INSTALLATION DEPTH:

76 mm

Gaskets:

3

Glass packages:

24-52 mm
