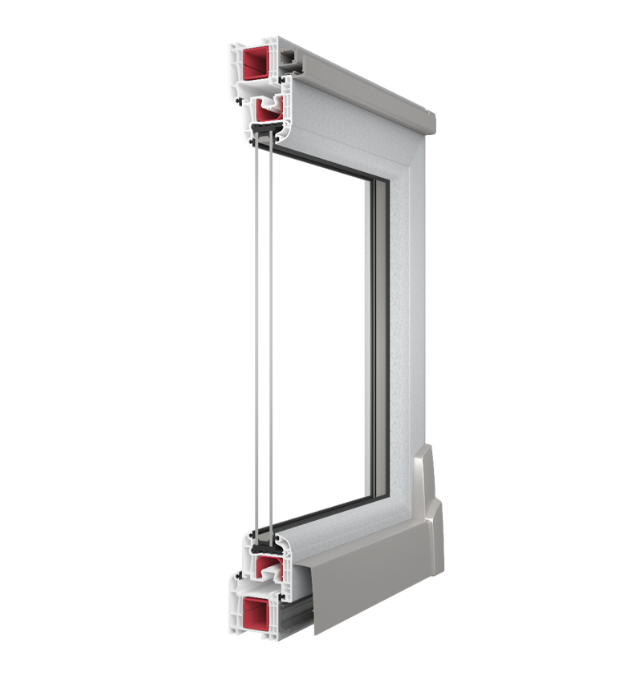

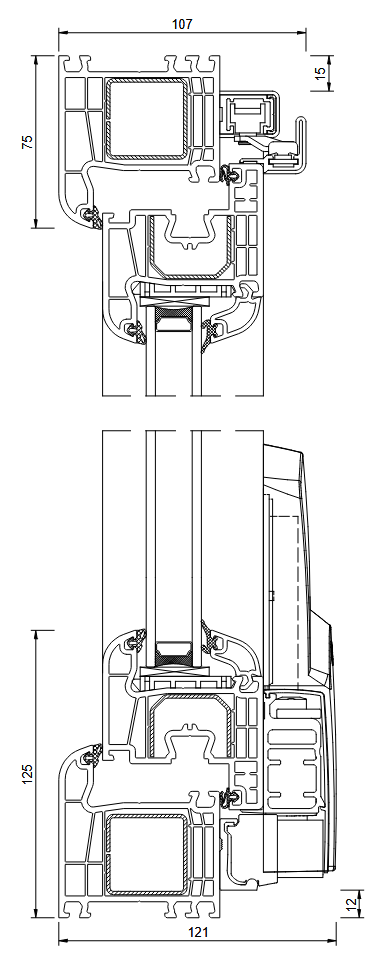

IG5 CLASSIC PSK UPVC Tilt and Glide Patio doors

• MACO SKB-S System Standard fittings for window sashes weighing up to 160 kg
• 2-glazed (1-chamber) units infilled with argon gas with Ug = 1.1 W/(m²K)
• Rail cover available in 4 colours: silver, white, light brown and brown
• profile core in white
• galvanised steel glass-pane spacer optional Swisspacer Ultimate glass-pane spacer
• frame profile height 75 mm
• 2 EPDM gaskets in black (external and internal)
• gasket filling the lower fittings groove
• 1.5 mm full (closed) steel frame reinforcement, 2 mm ,,c”-shaped steel sash reinforcement
• aluminium handle, available with key option
• 5-chamber PVC under-sill trim with gasket

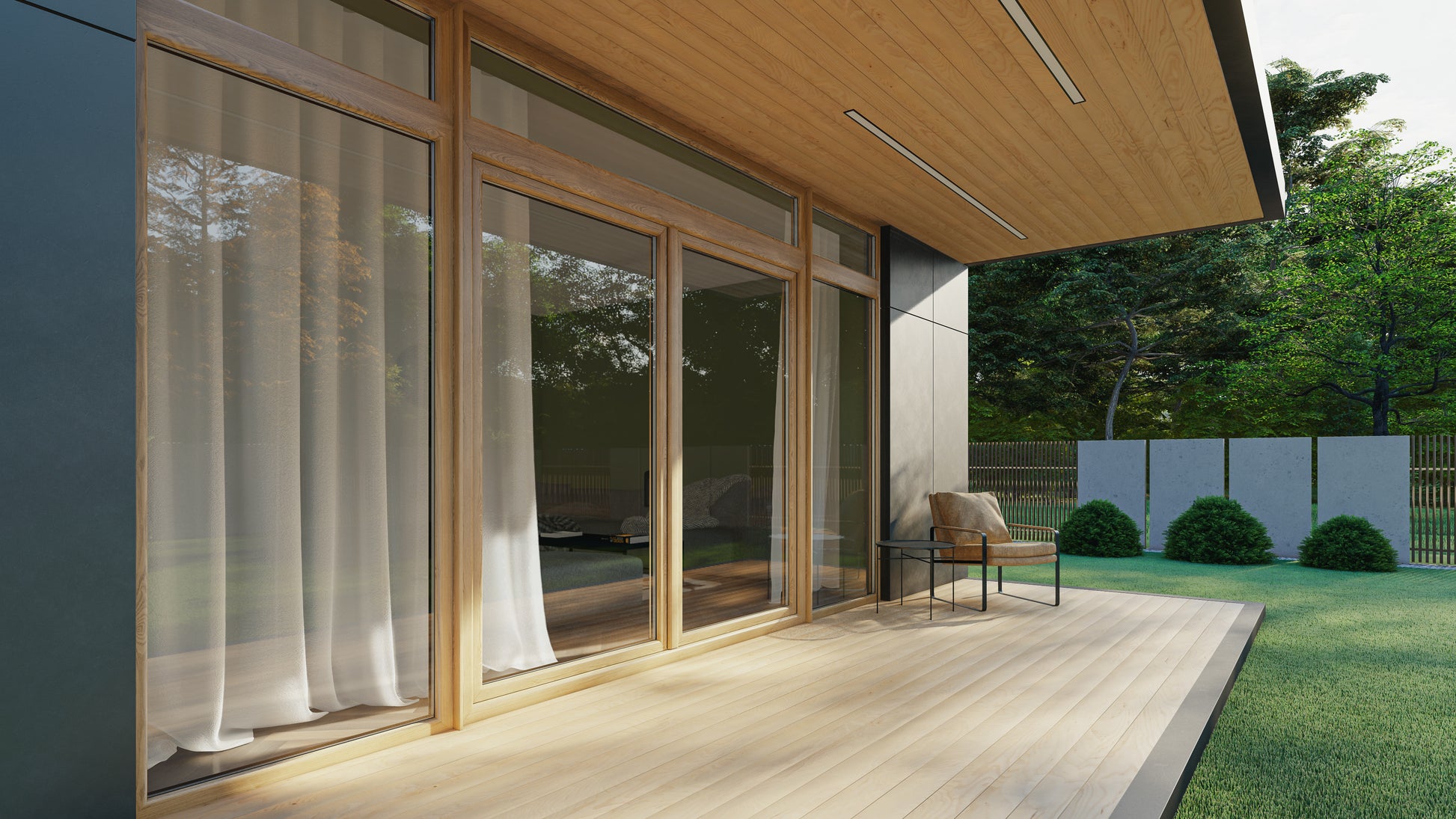

Perfect solution, that ensures big access to daylight both in small and big rooms, maintaining great thermal insulation at the same time.

EPDM gaskets:

2

THERMAL TRANSMITTANCE:

Uw = 0,81 W/(m2K)*

NUMBER OF CHAMBERS:

5

Glass packages:

24-40 mm

Class profile:

A
