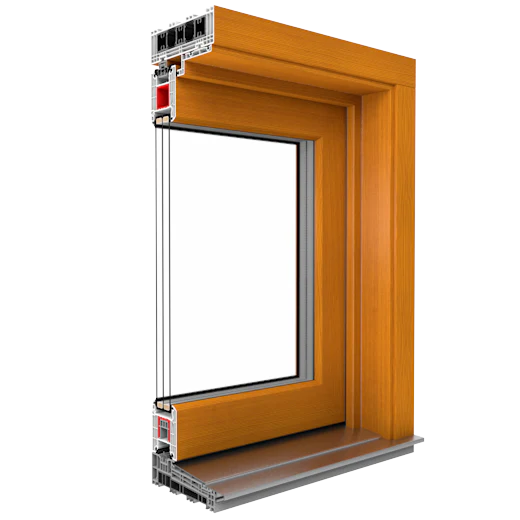

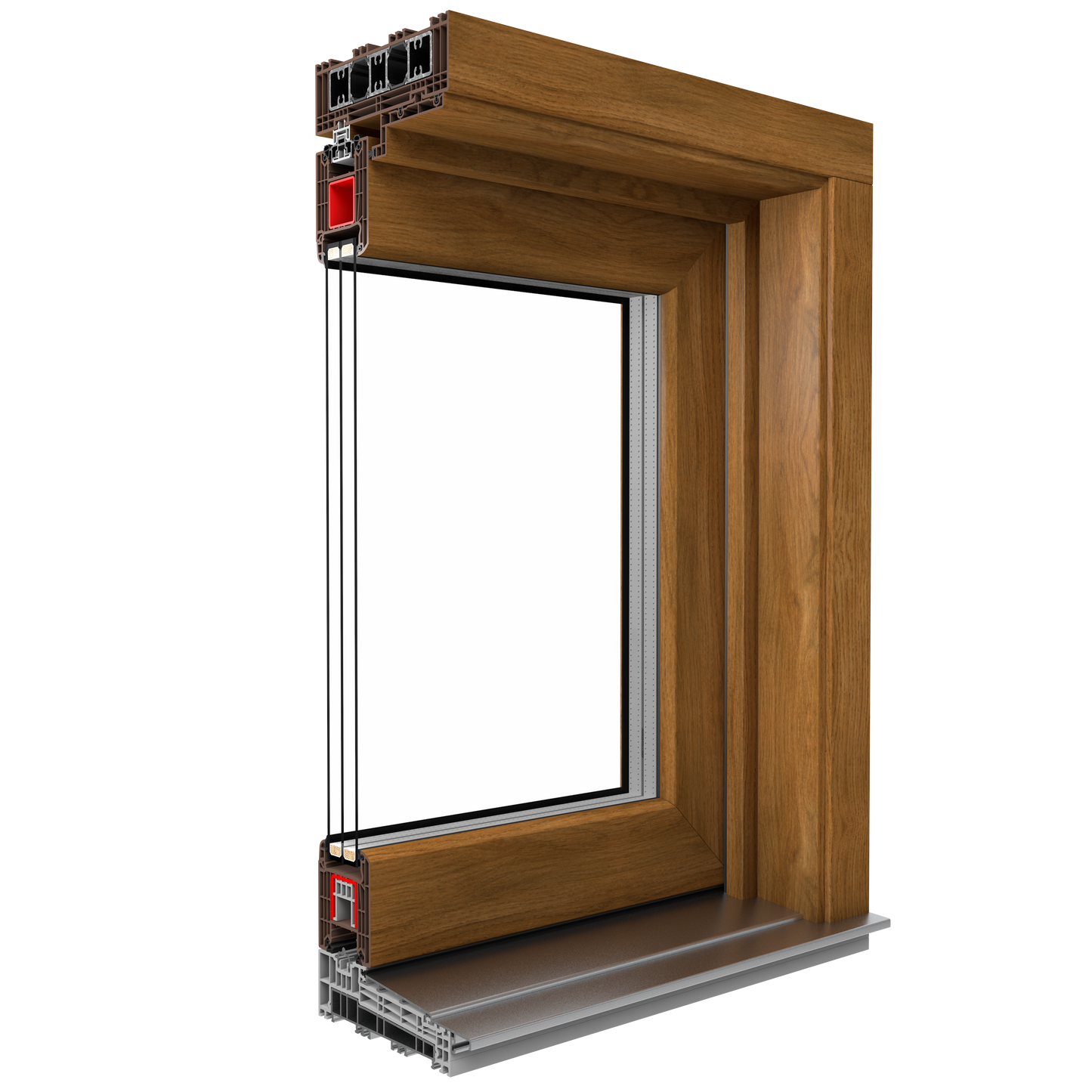

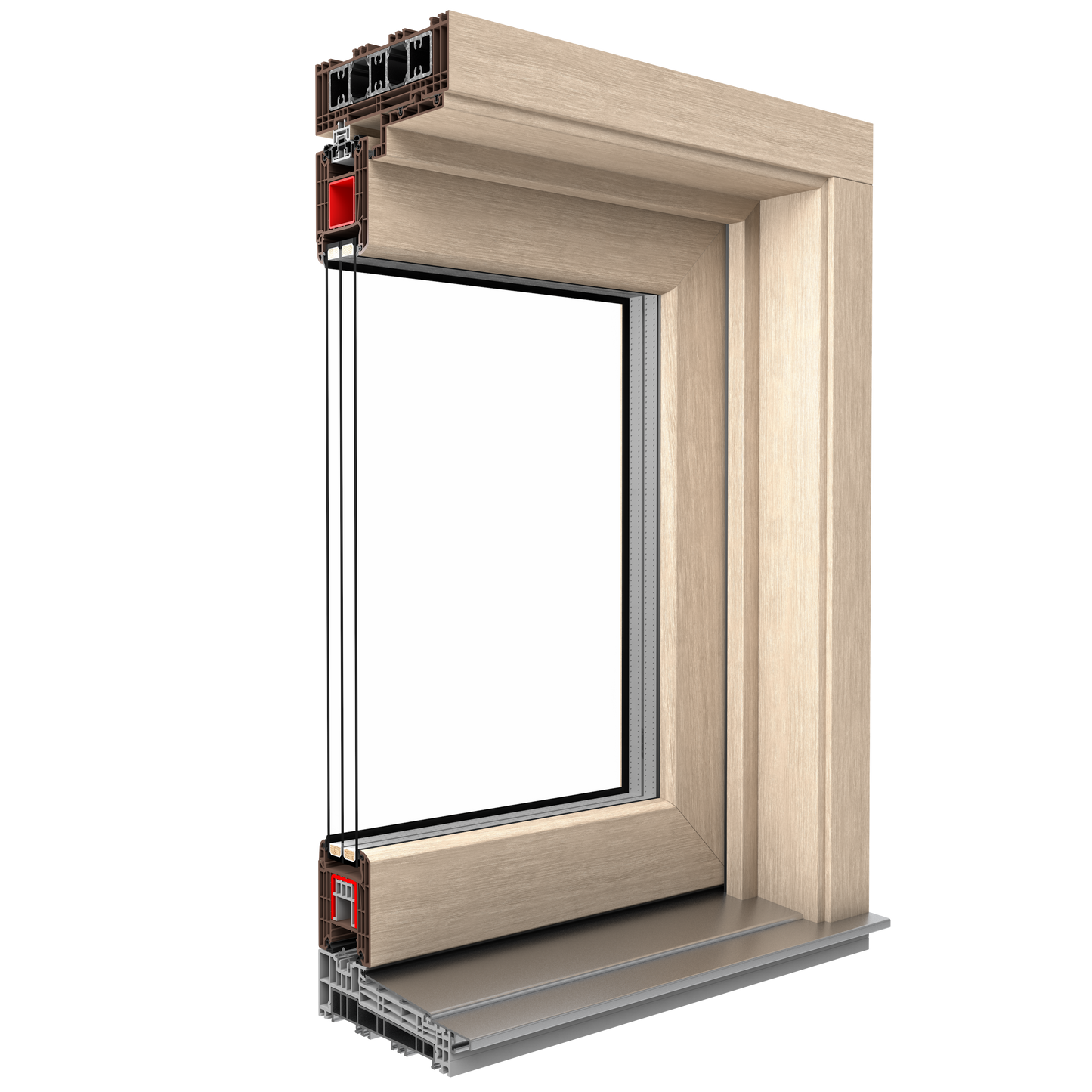

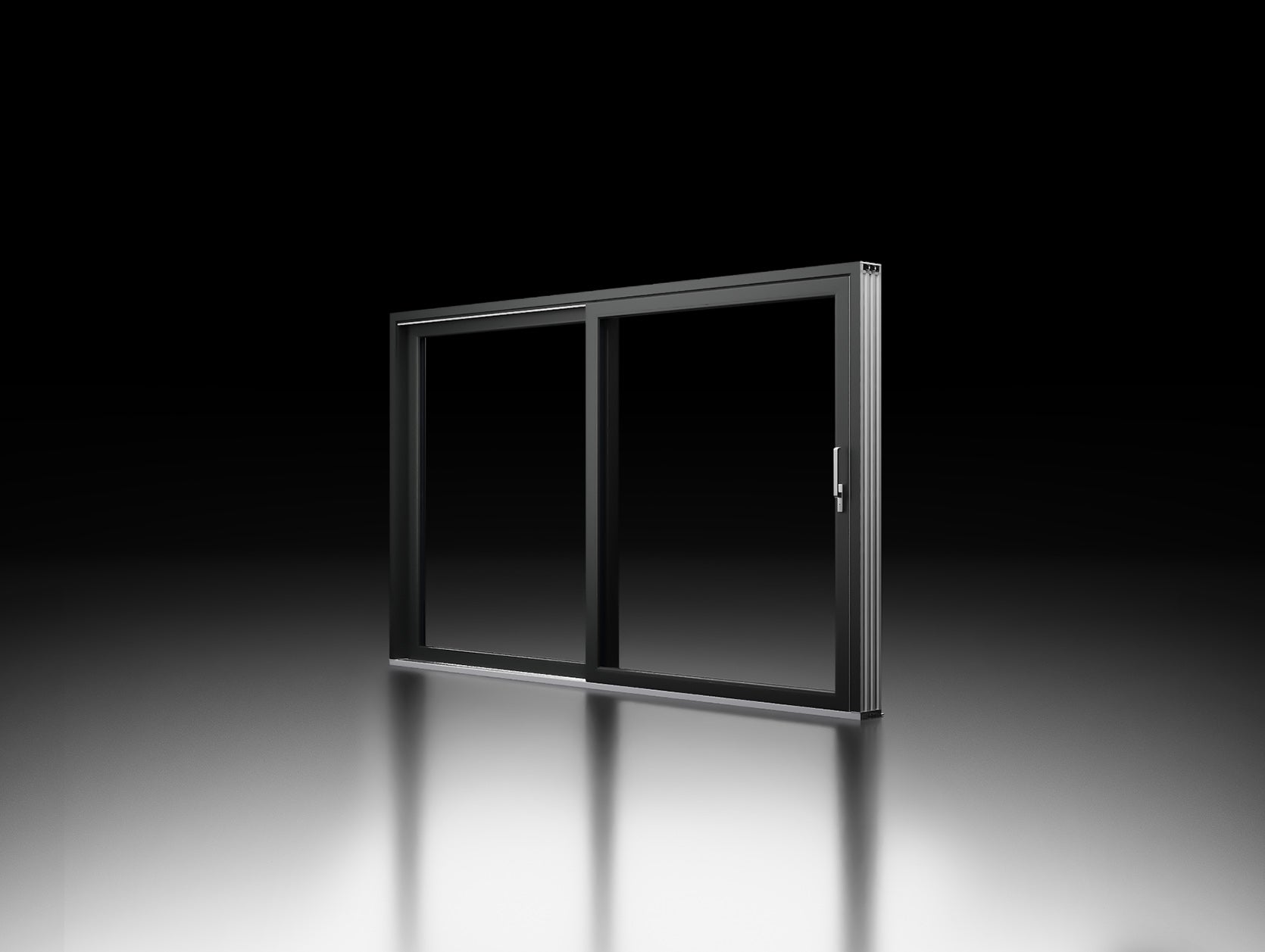

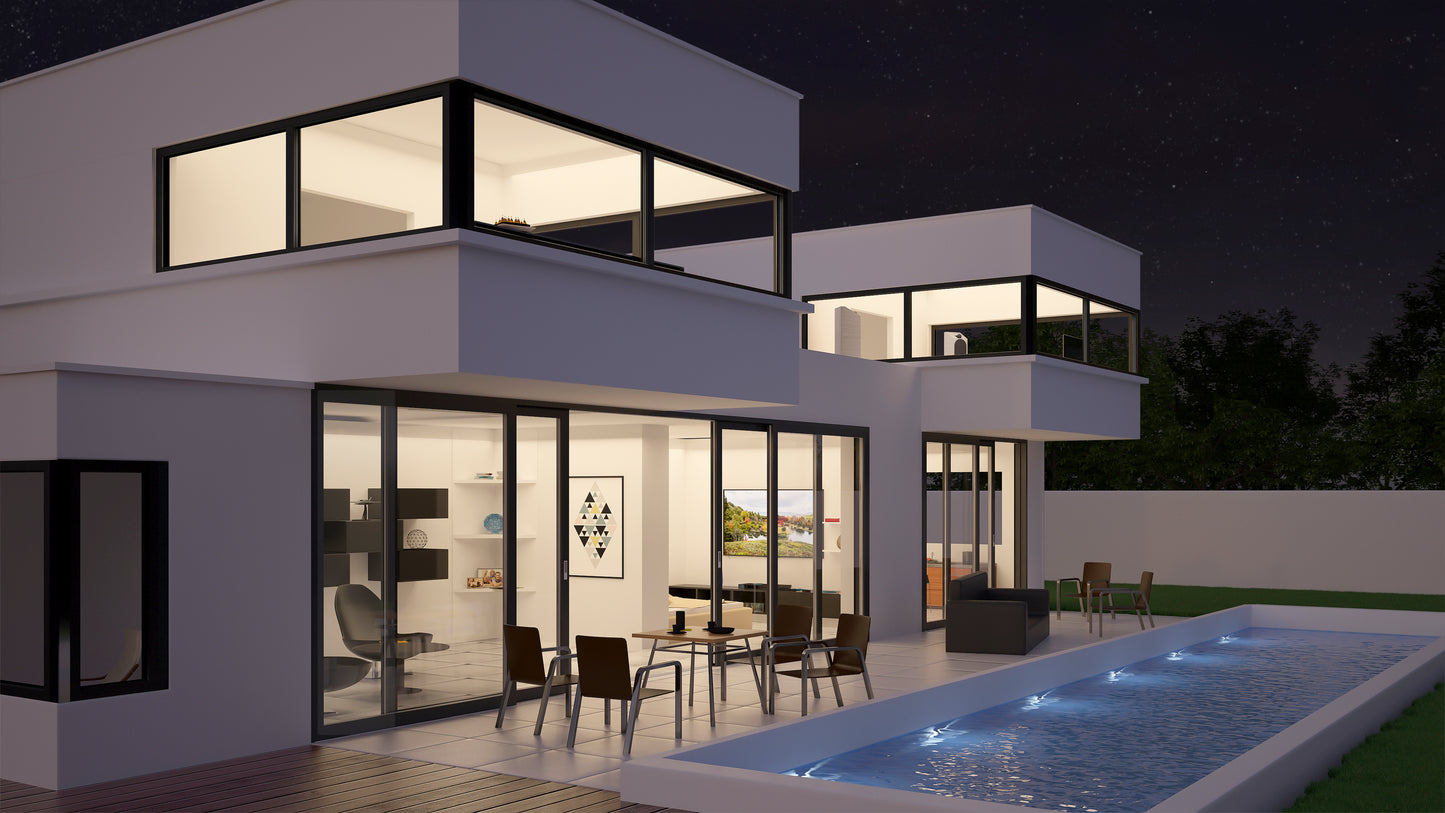

IG5 HS Lift and Glide 4 part Patio doors

• G-U lift and slide fittings with 3 locking bolts
• micro-ventilation striker
• aluminium handle on the inside, recessed grip on the outside
• 3-glazed (2-chamber) units infilled with argon gas, with Ug = 0.5 W/(m²K)
• Swisspacer Ultimate plastic warm frame - as a free elective option
• internal velour gasket, external EPDM and brush gasket in black
• frame reinforcement made of high quality aluminium sections with thermal breaks, sash reinforcement: top and vertical - full (closed) steel, 2 mm thick; bottom - steel, channel-shaped, 3 mm thick
• profile core in white
• system carts with a load capacity of 300 kg
• PVC low threshold with aluminium reinforcement and overlay

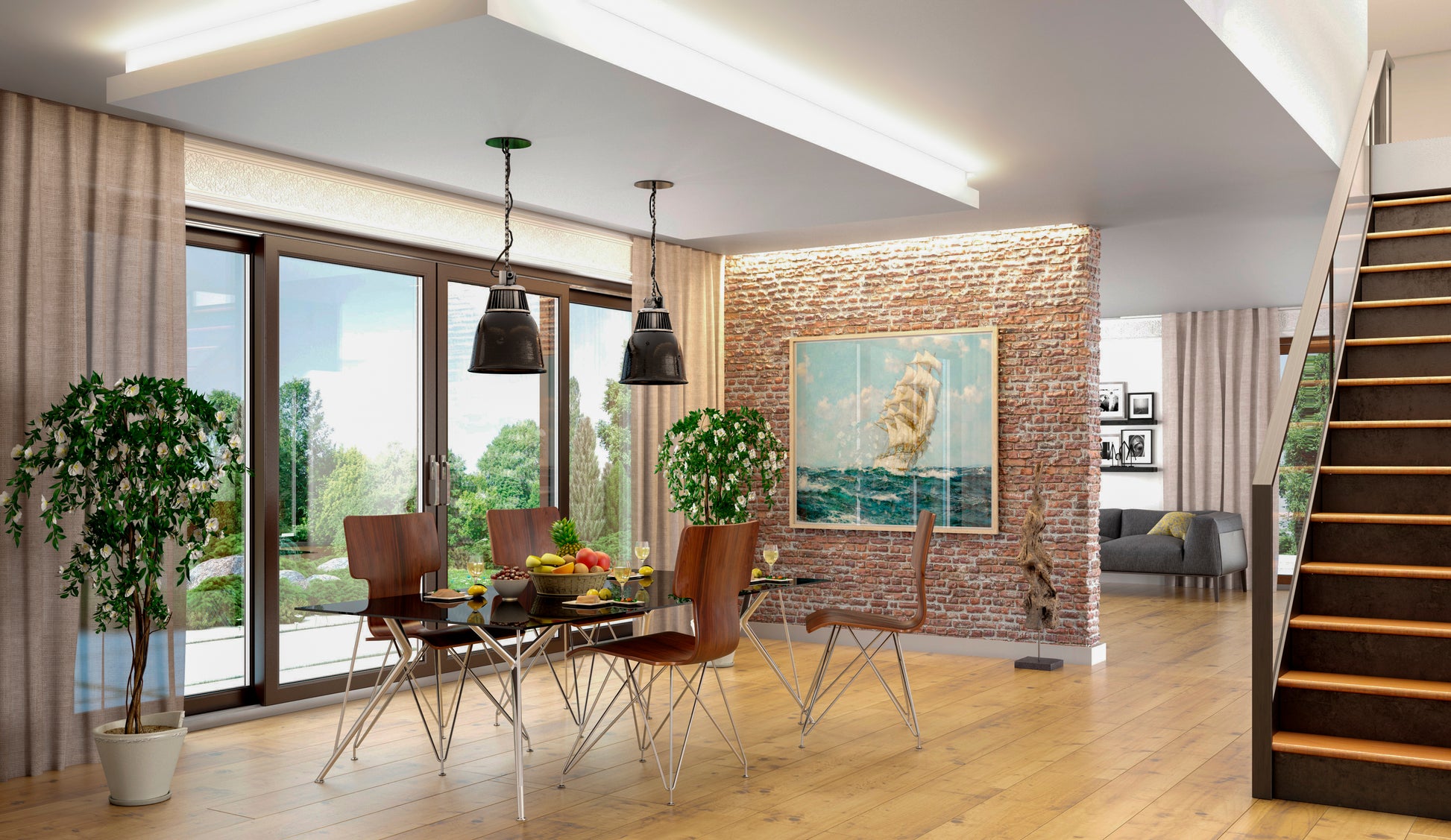

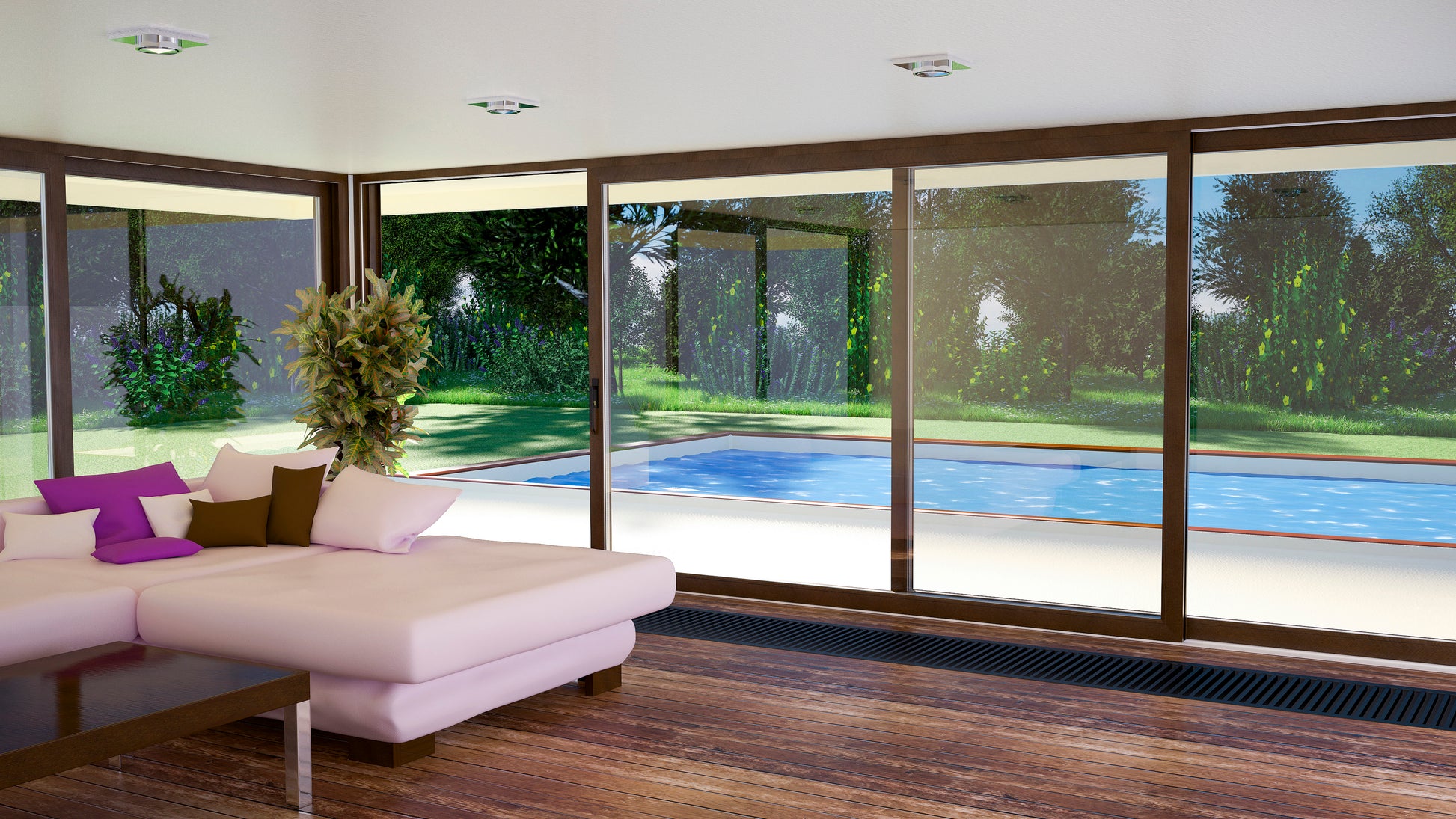

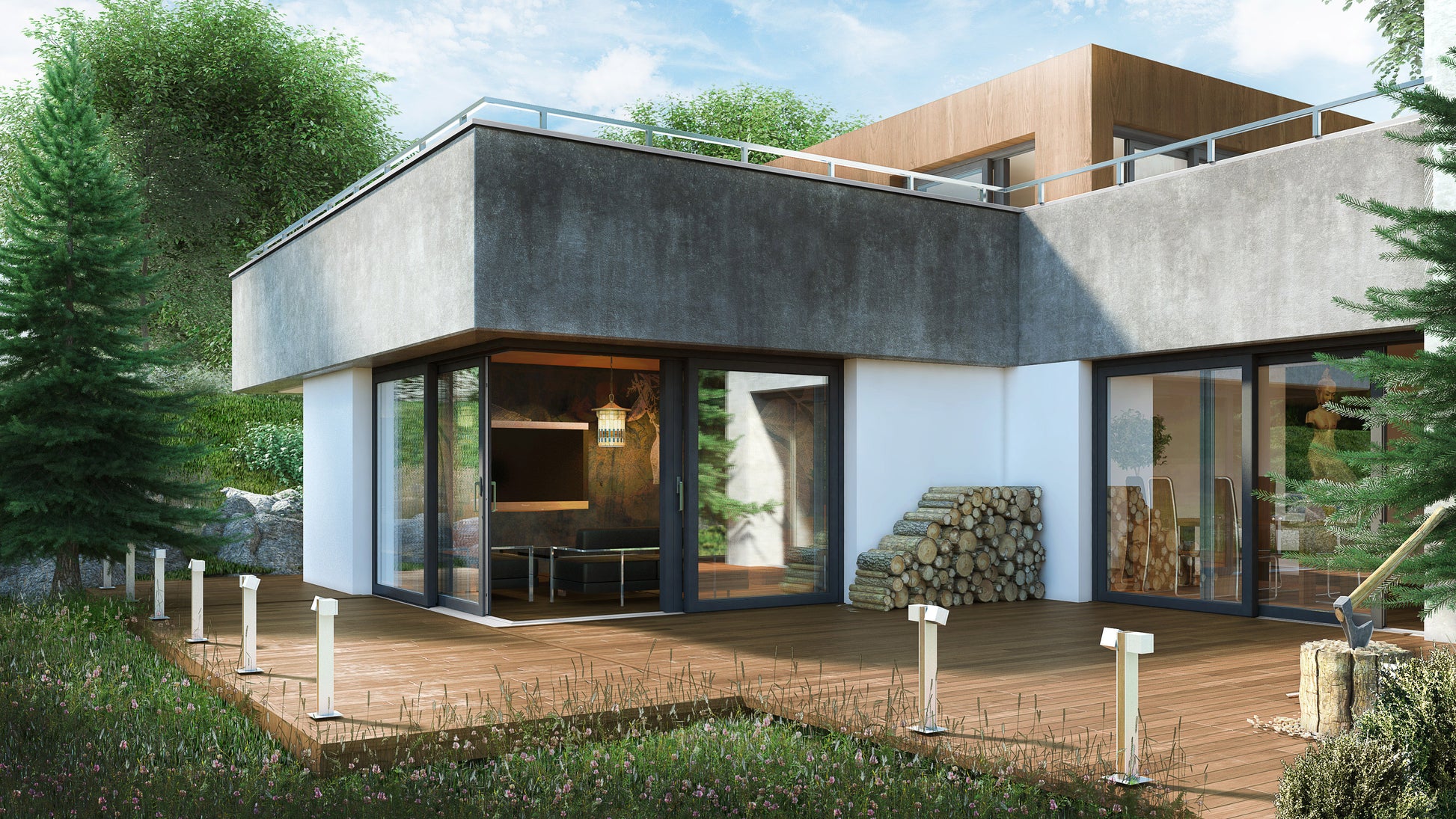

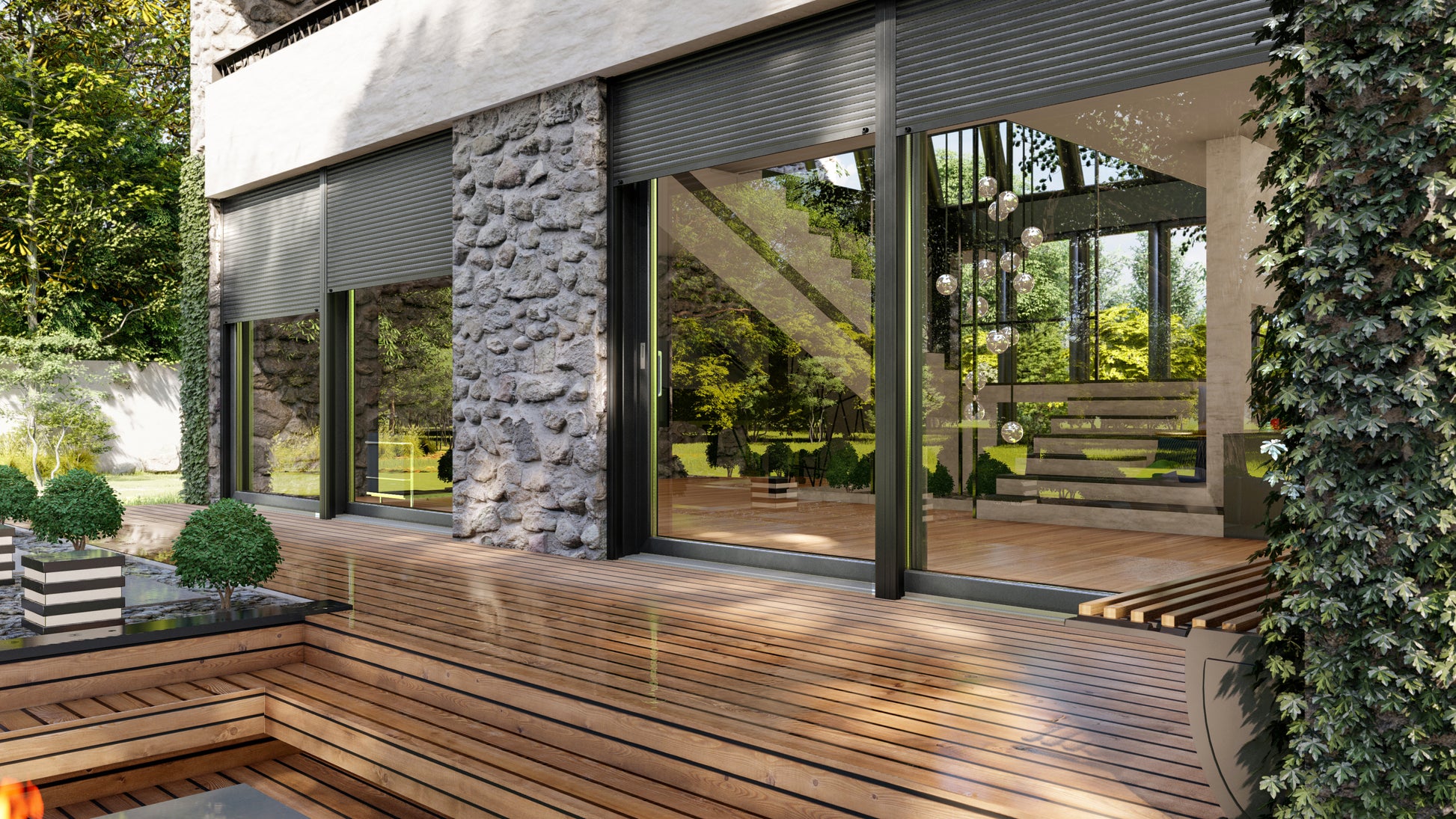

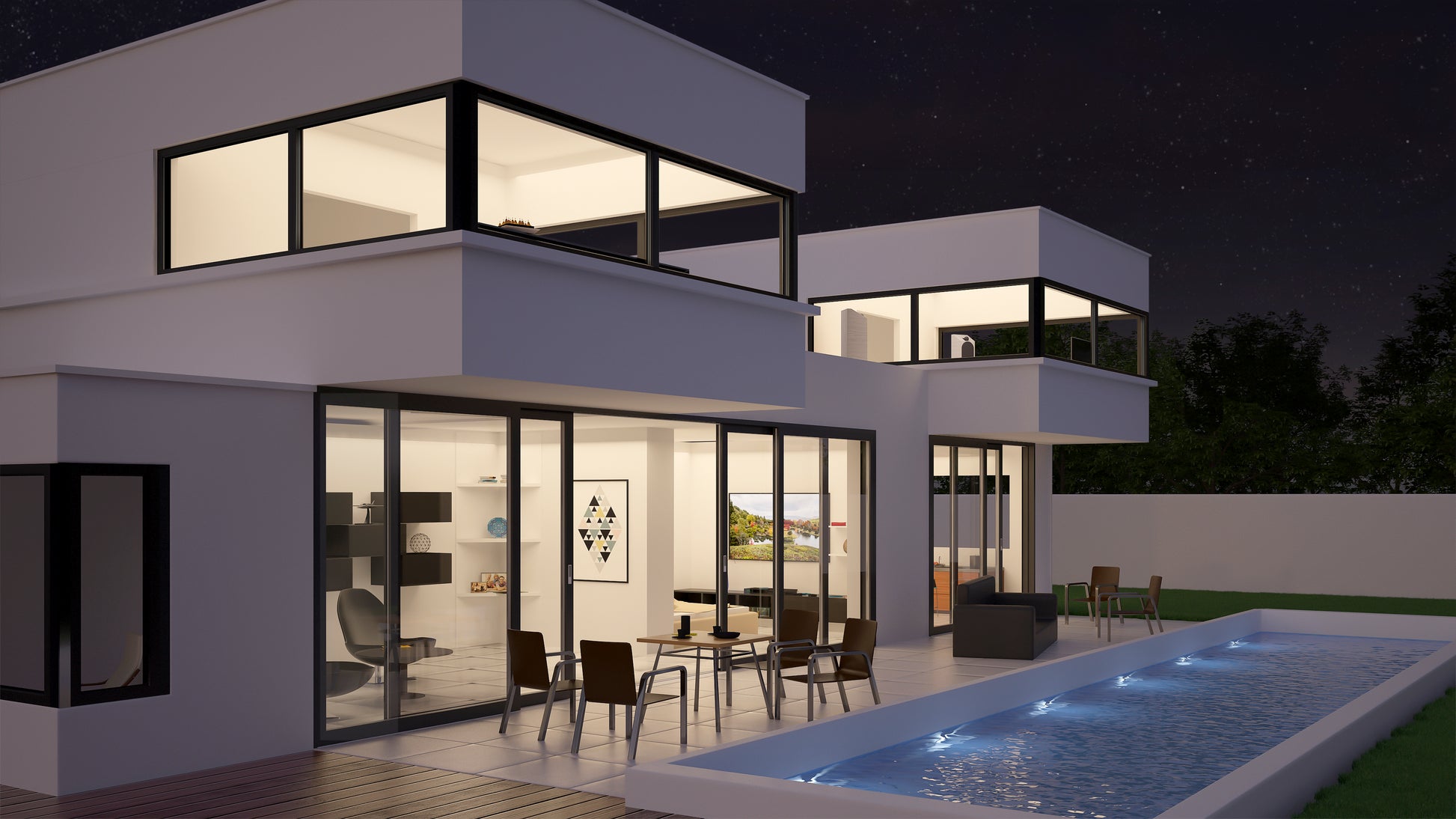

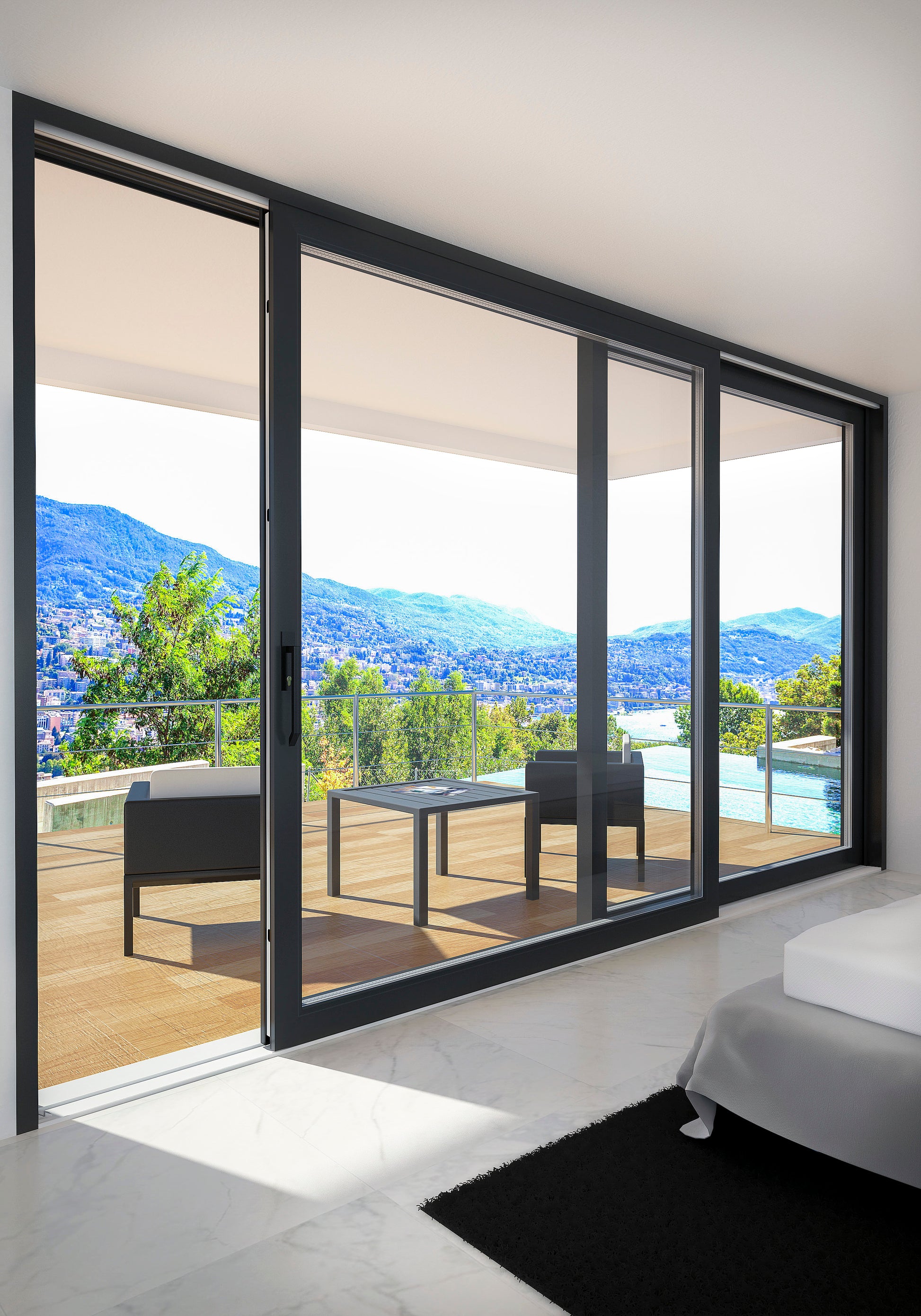

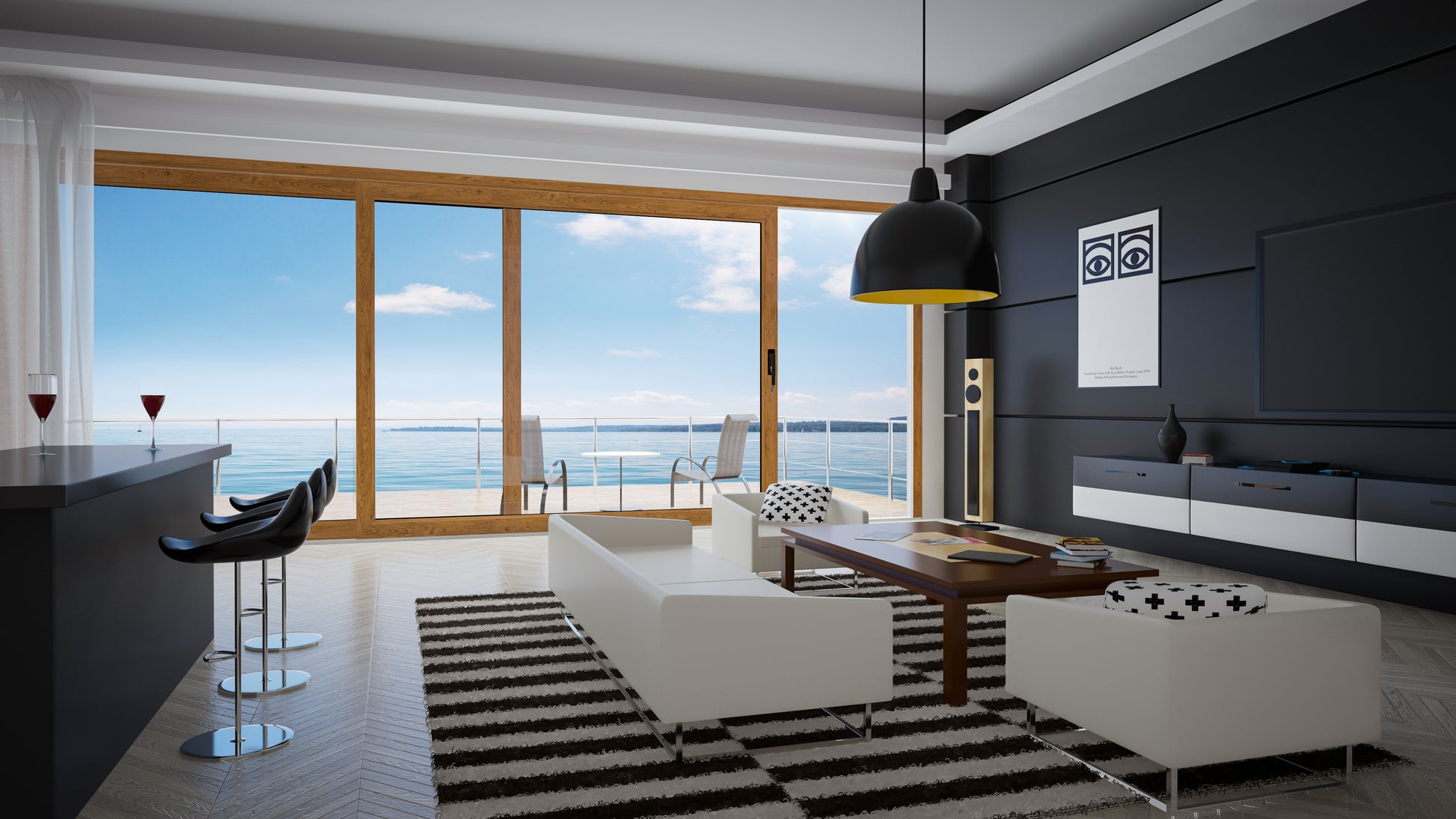

An ideal solution to create trendy, large-size terrace and balcony glazing to give interiors a unique feel.

With its extremely durable structure, this terrace system supports leaves up to 400 kg. A low aluminium threshold that can be hidden in the floor adds to its excellent functionality.

EPDM gaskets:

3

THERMAL TRANSMITTANCE:

Uw = 0,71 W/(m2K)*

NUMBER OF CHAMBERS:

7

INSTALLATION DEPTH:

194 mm

Glass packages:

36-52 mm

Class profile:

A
