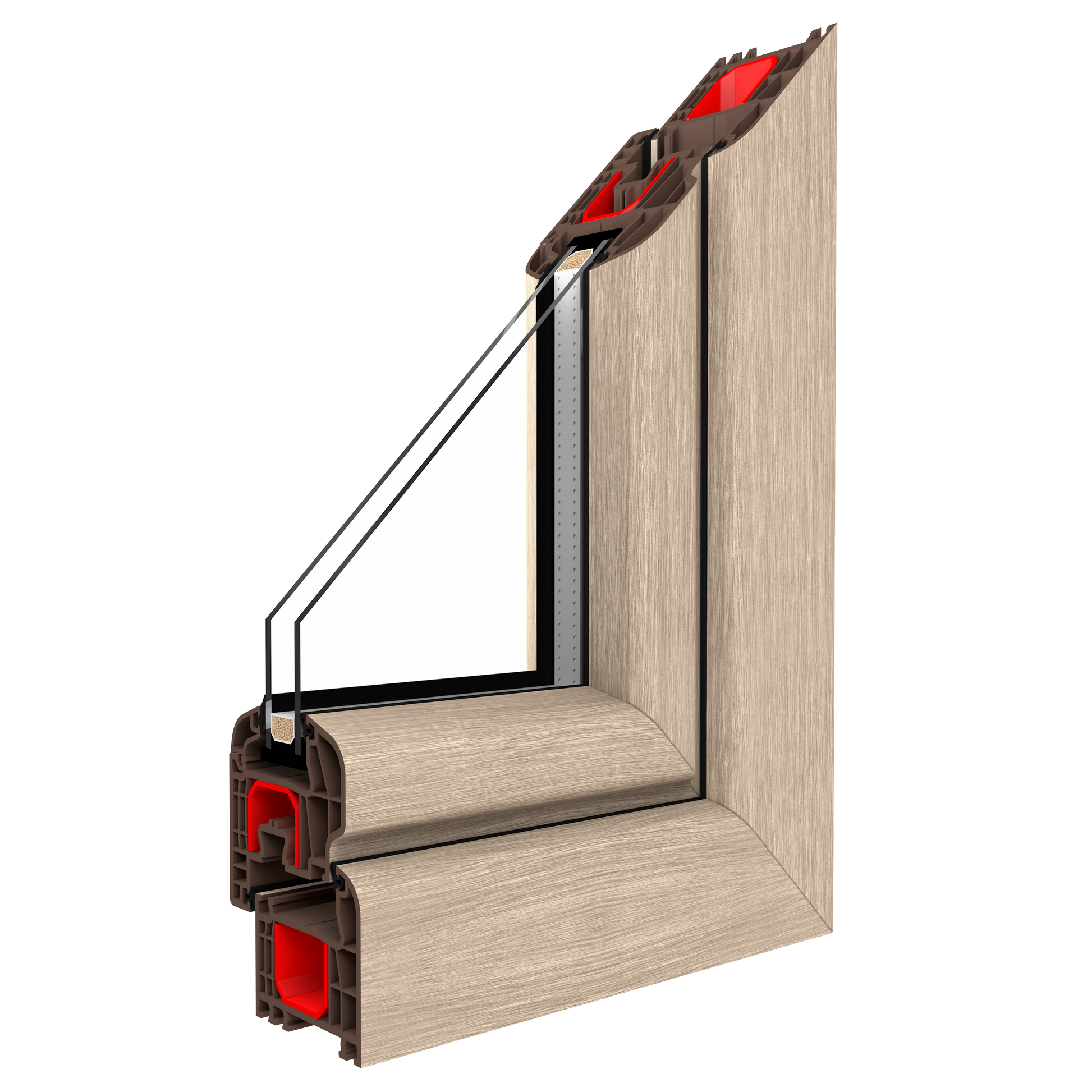

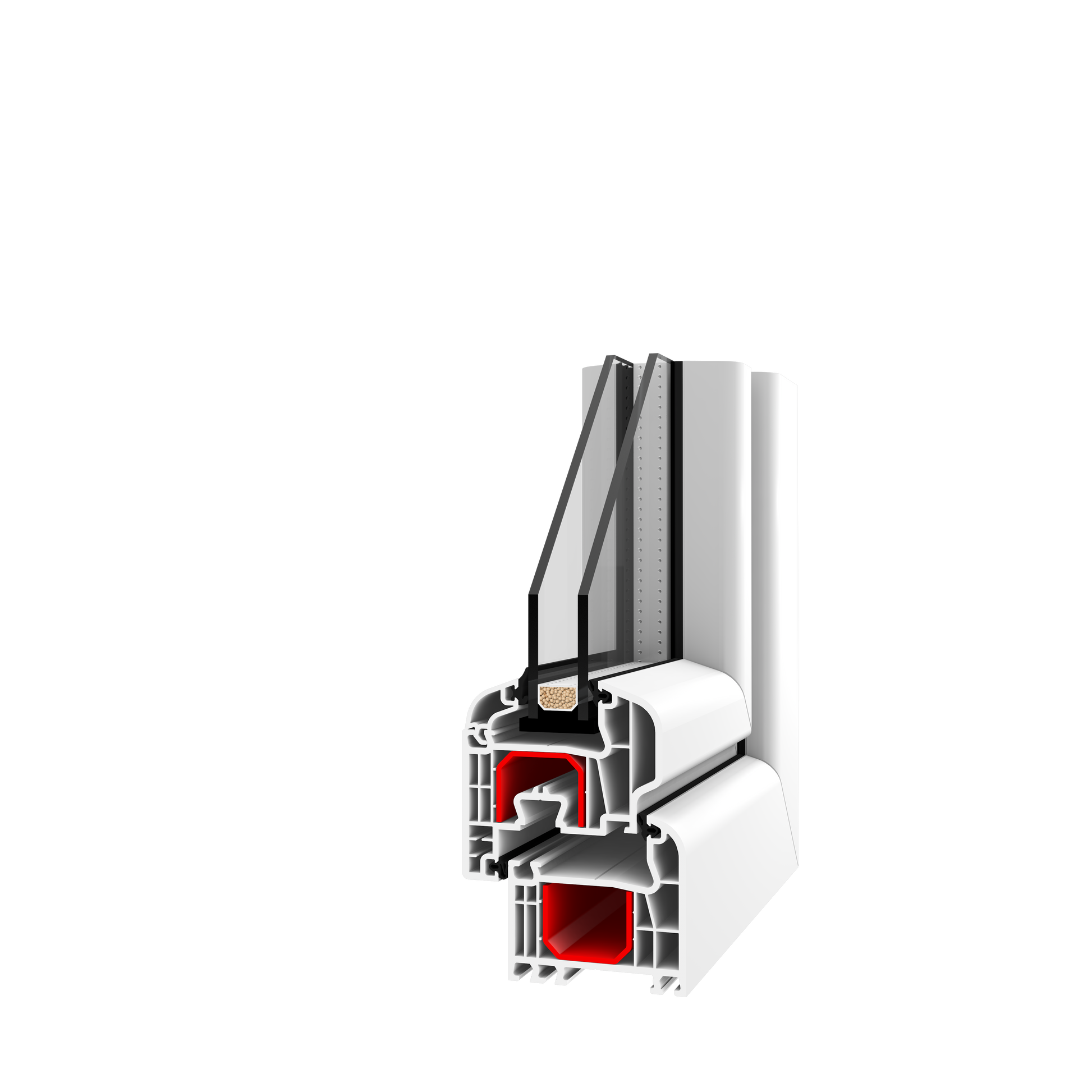

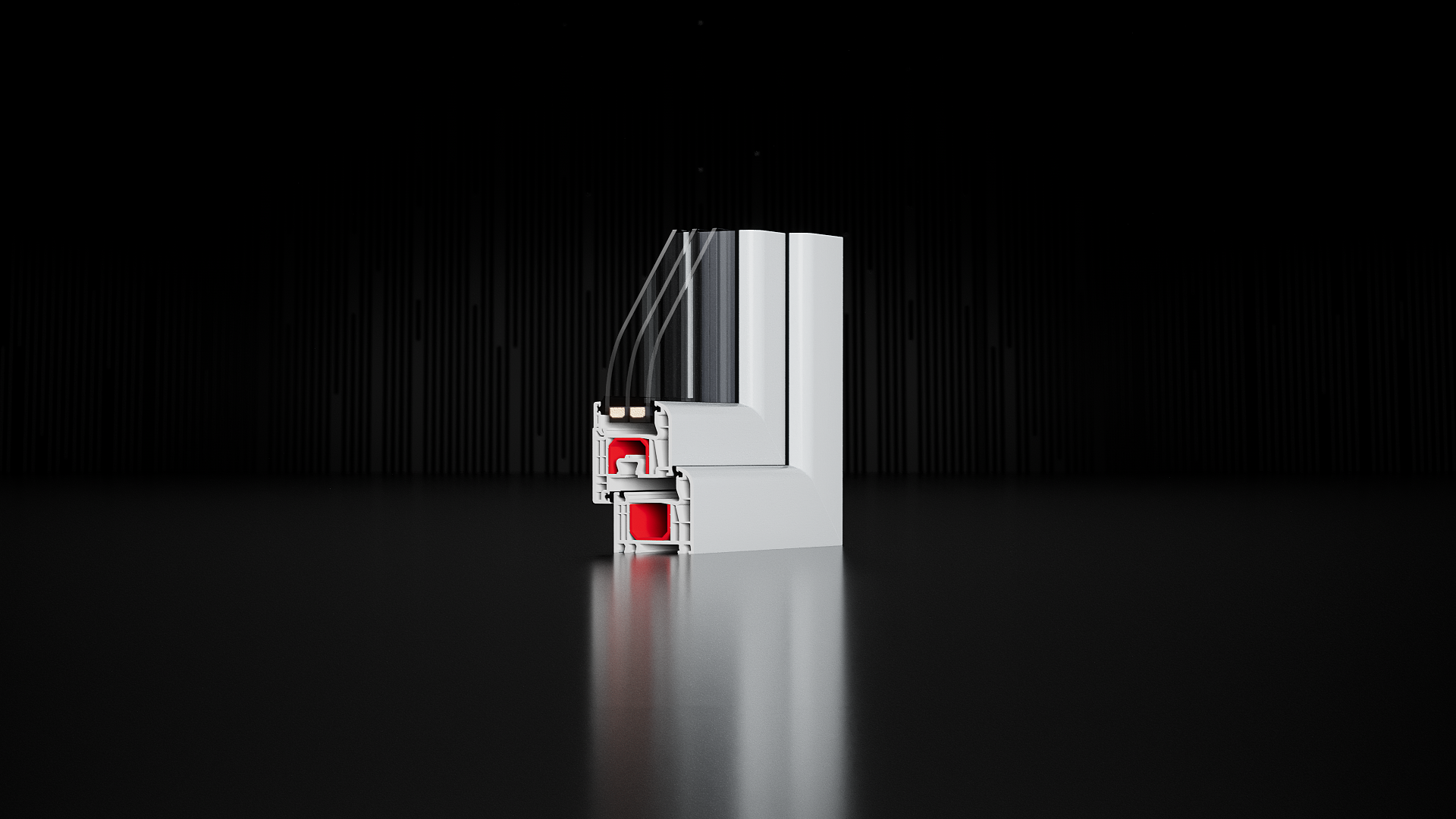

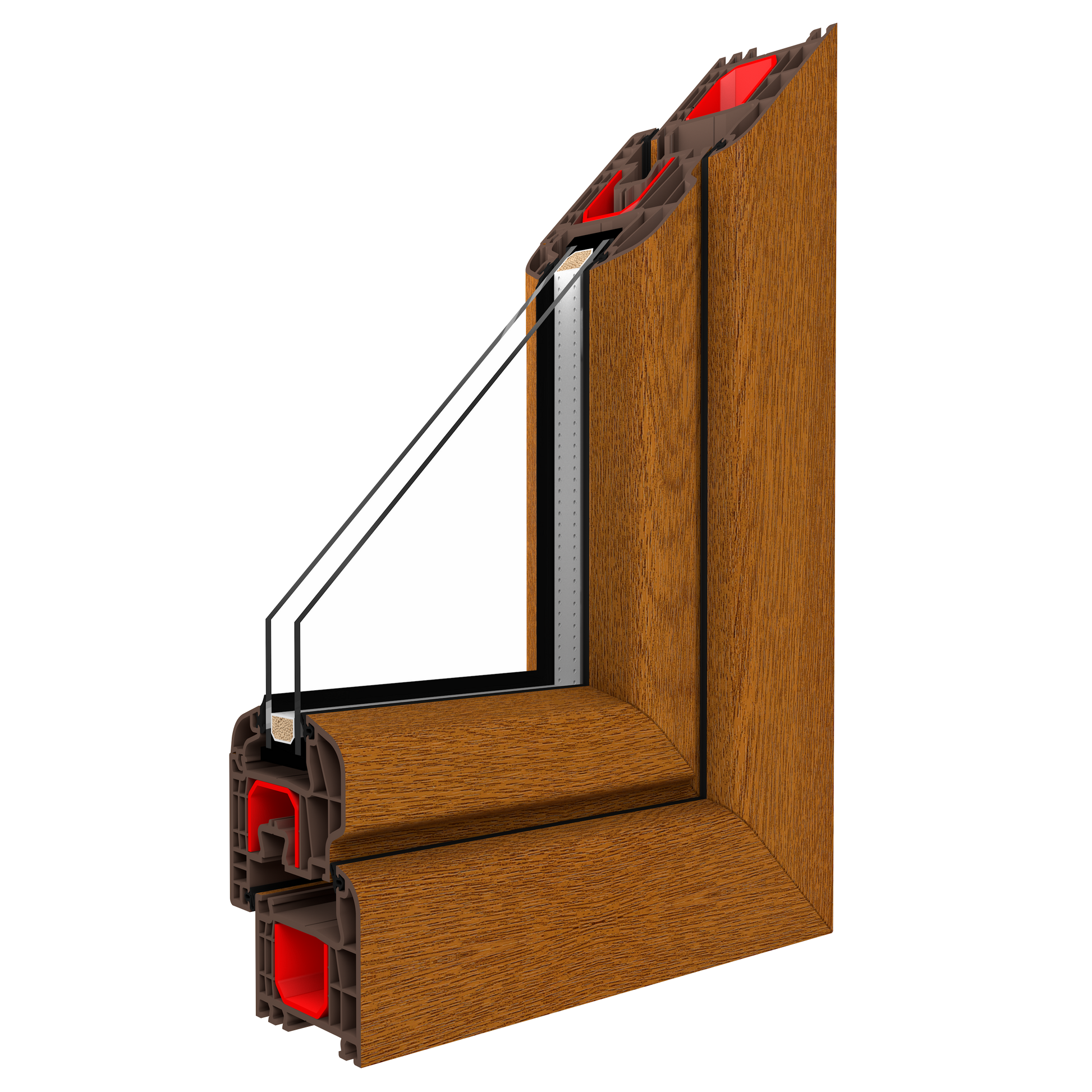

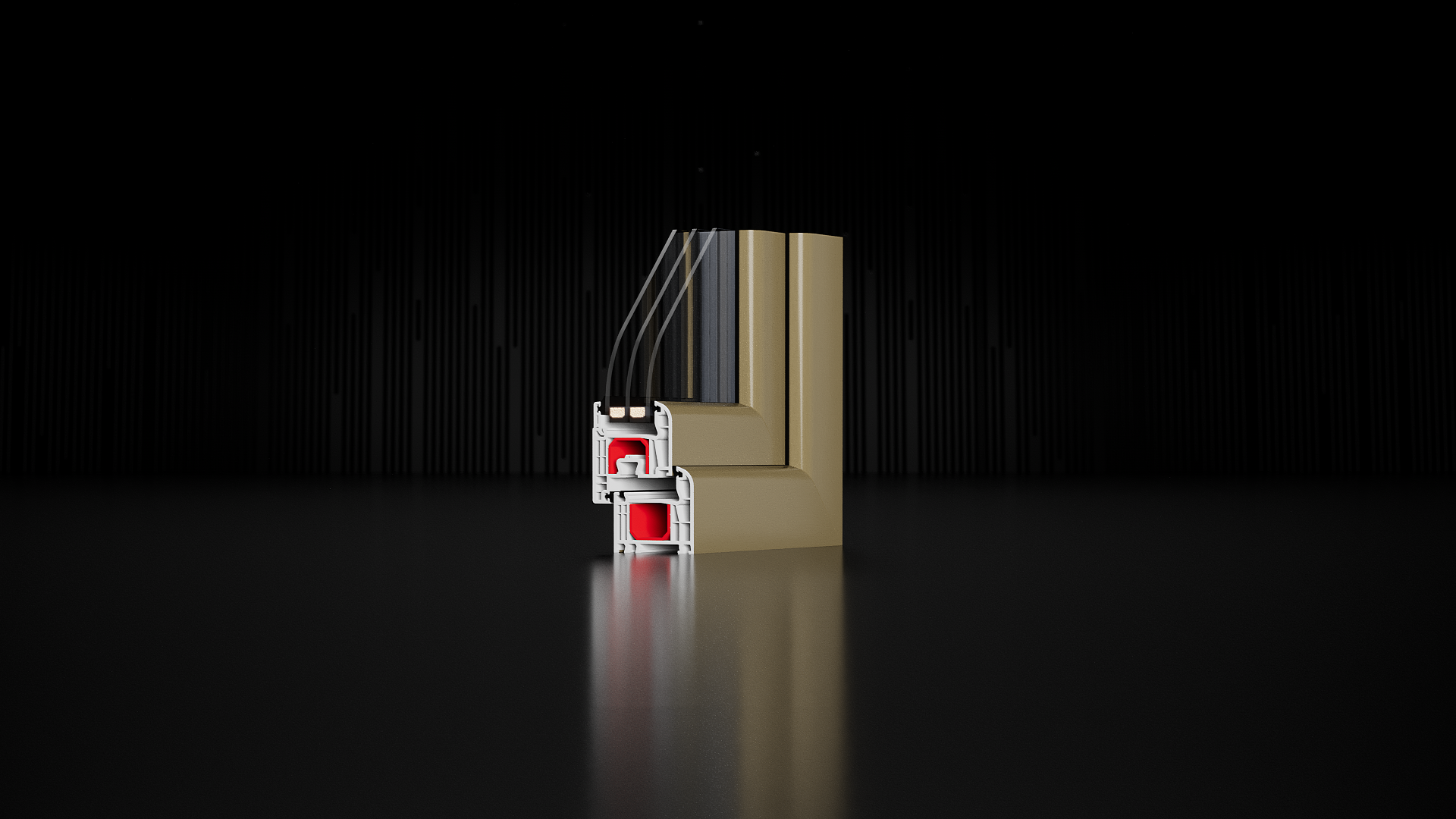

IGLO 5 Windows

• MACO MULTI-MATIC KS fittings with 2 anti-theft strikers with Silber-Look anticorrosion coating for long-lasting protection and smooth operation of the fitting
• sash lifter (lifting mishandling device - depending on window height
• microventilation in tilt and turn windows
• hinge covers in 4 colours: white, silver, light brown, brown

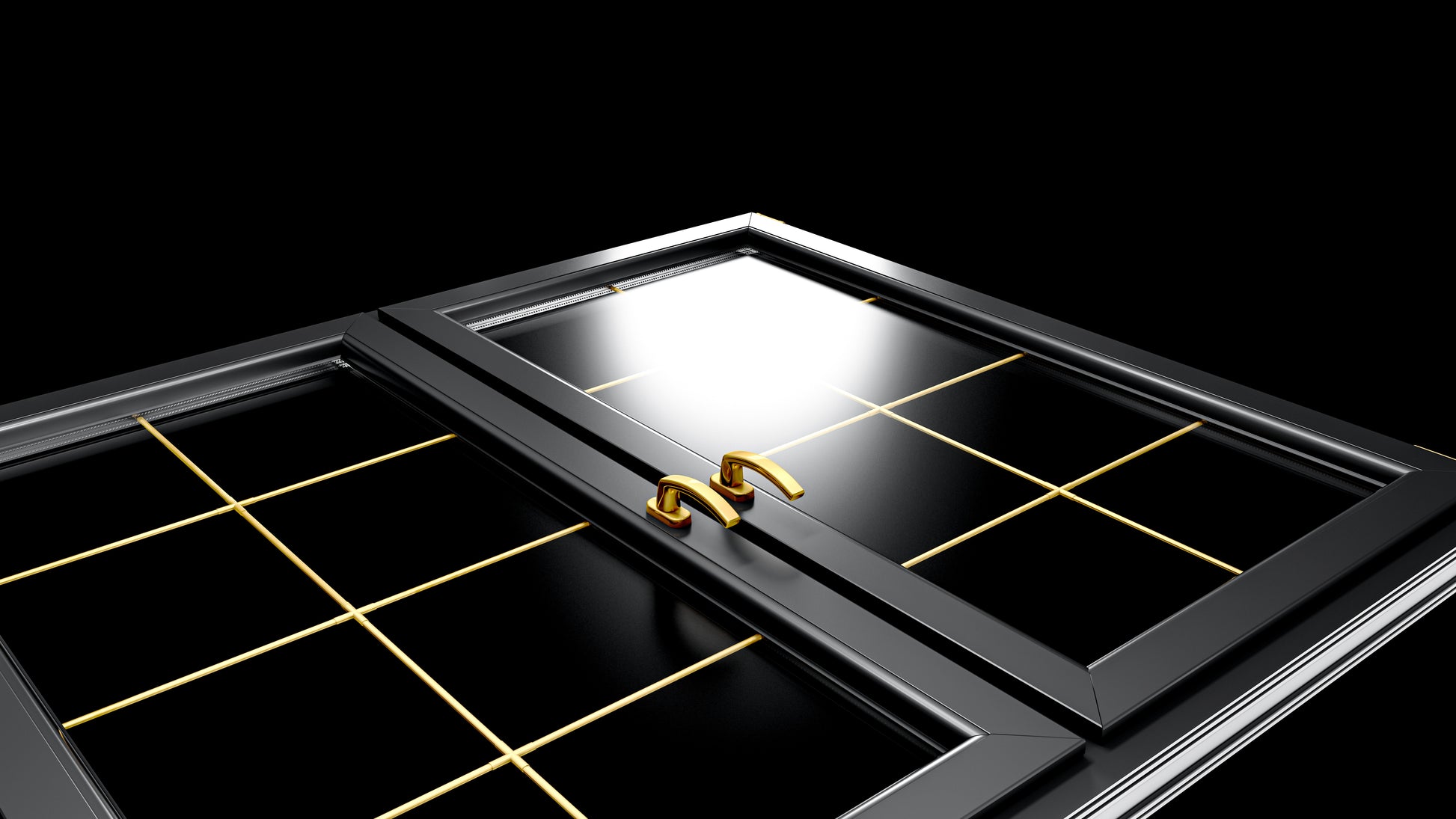

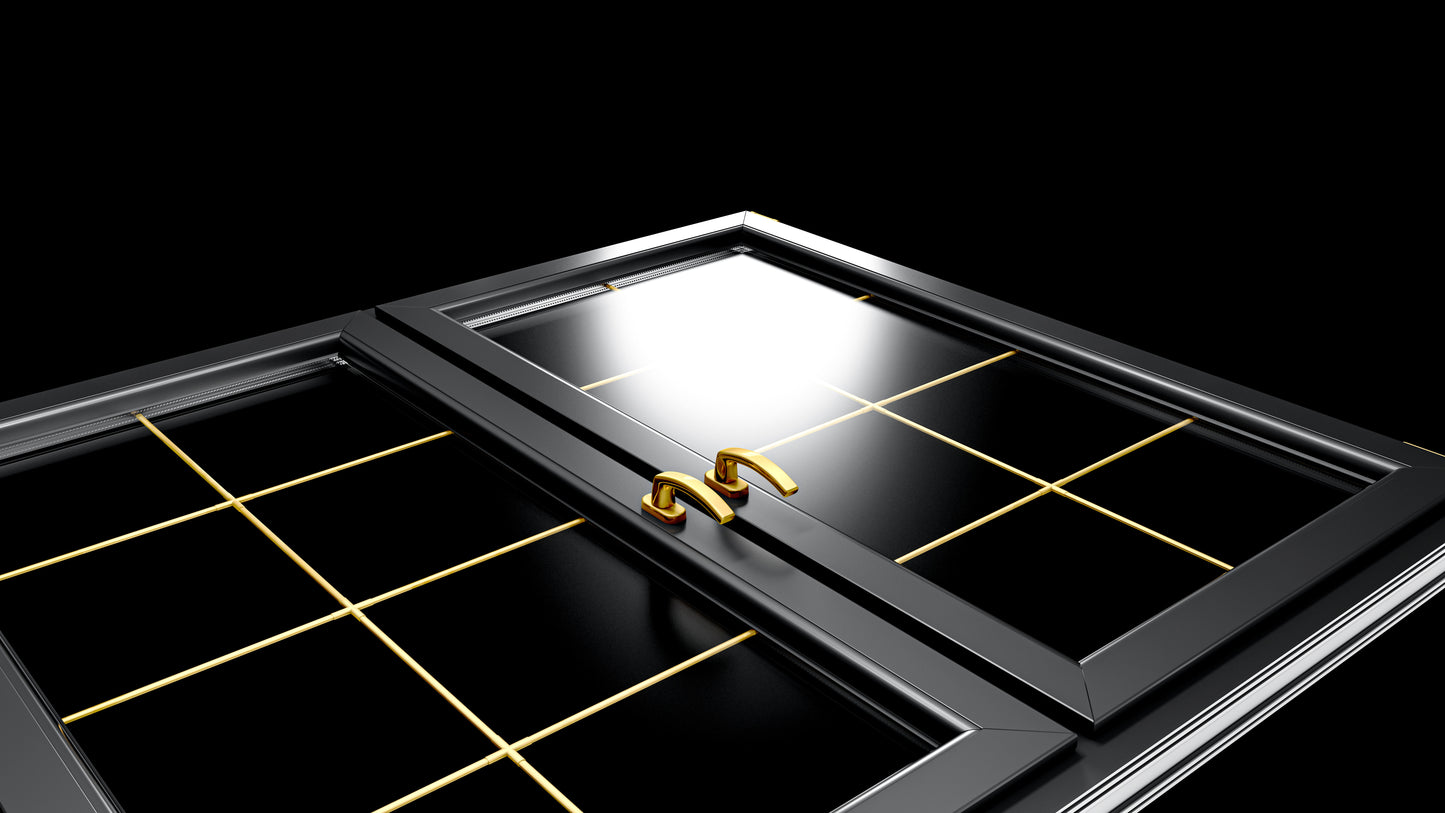

• aluminium handle
• 2-glazed (1-chamber) units infilled with argon gas with Ug = 1.1 W/(m²K)
• galvanised steel glass-pane spacer optional Swisspacer Ultimate glass-pane spacer
• 2 EPDM gaskets in black (external and internal)
• gasket filling the lower fittings groove

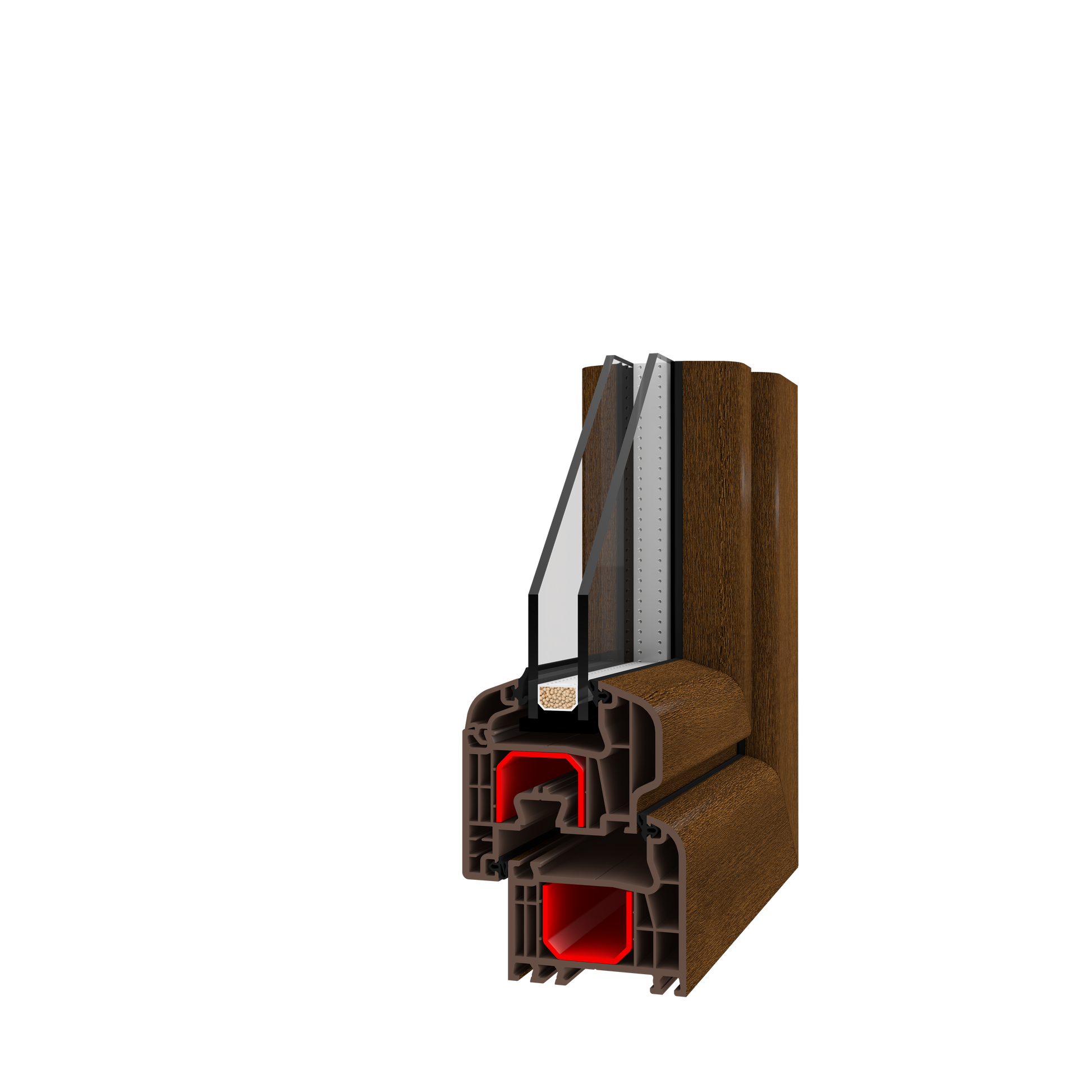

• 1.5 mm steel reinforcement for frame and sash (2 mm for balcony door sash), ,,c”-shaped
• profile core in white
• 5-chamber PVC under-sill trim with gasket
• The profile is available in two colours: white and brown.

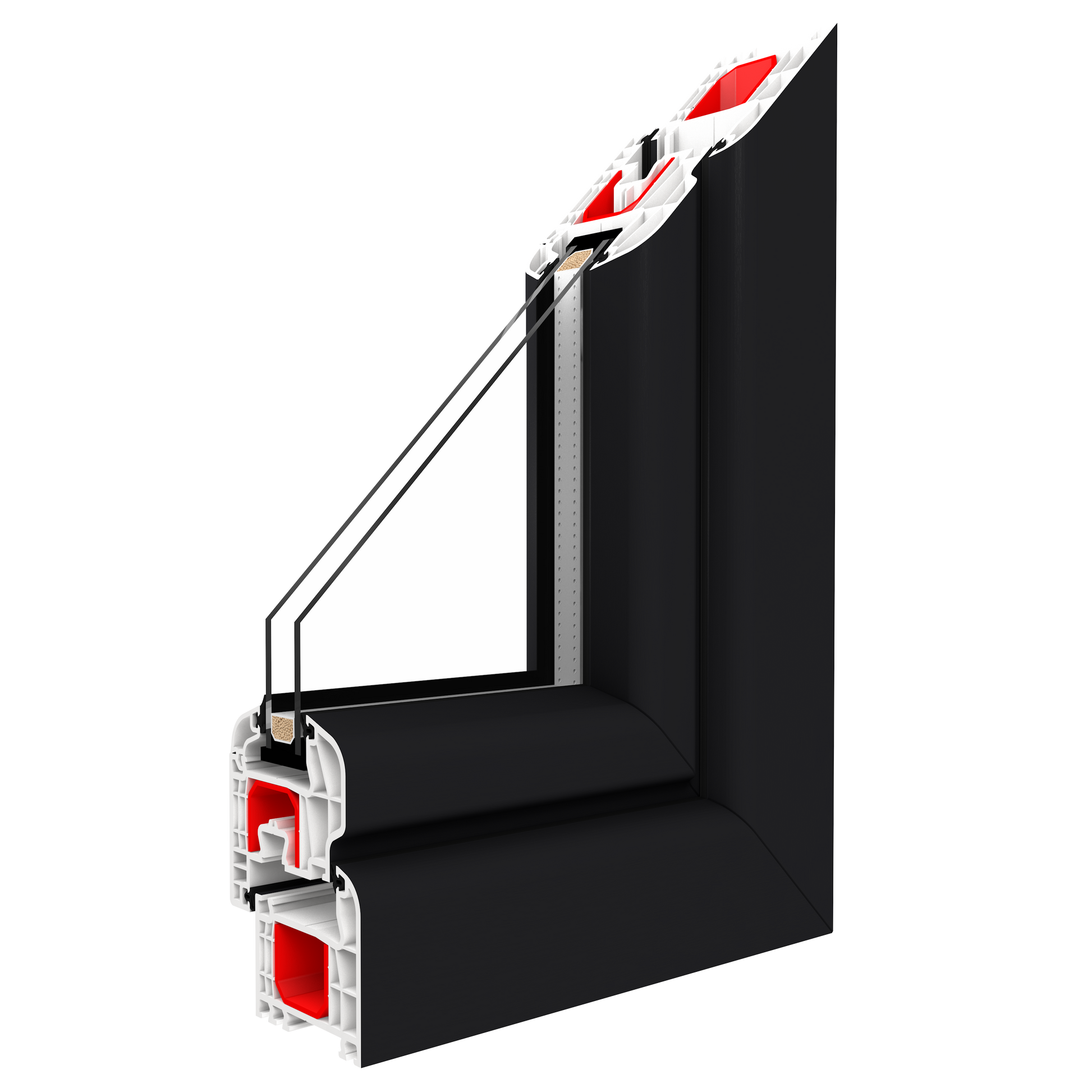

A 5-chamber system features very good thermal insulation parameters. Our innovative solution is based on a snow-white A-class profile made exclusively of primary materials to ensure the highest quality. These windows are perfect for both warm and cold climates.

Sound insulation:

dB = 36-44

EPDM gaskets:

2

THERMAL TRANSMITTANCE:

Uw = 0,89 W/(m2K)*

NUMBER OF CHAMBERS:

5

INSTALLATION DEPTH:

70 mm

Class profile:

A
