IGLO EDGE Windows

• double-chamber glazing package Ug = 0,5 W/(m2K)
• Swisspacer Ultimate plastic warm frame
• V-perfect weld
• 4 anti-theft strikers according to the size of the sash and the hardware system
• microventilation
• DUBLIN aluminium window handle
• handle misplacement locking mechanism
• perimeter, glazing and central gaskets in black or grey
• filling of the lower hardware groove
• sill trim
• wide selection of pvc veneer colours
• 3 profile colours to choose from: white, brown or anthracite

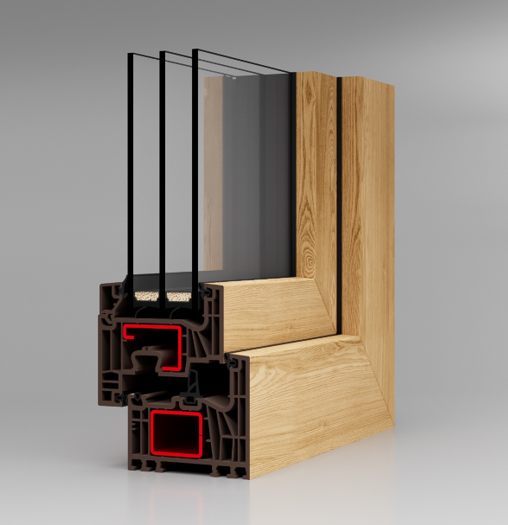

Our new, most technologically advanced window is distinguished by an excellent thermal insulation parameter of Uw = 0,66 W/(m2K)* and a modern, angular profile shape. The extremely good thermal insulation parameters are due, among other things, to the 7-chamber profile design and 3 EPDM gaskets, including the central gasket. Standard Equipment:

Sound insulation:

36-47 dB

EPDM gaskets:

3

THERMAL TRANSMITTANCE:

Uw = 0,66 W/(m2K)*

NUMBER OF CHAMBERS:

7

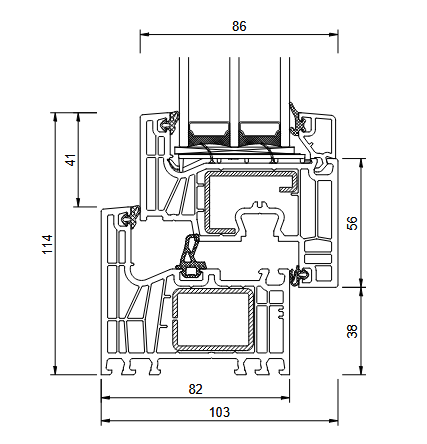

INSTALLATION DEPTH:

82 mm

Class profile:

A
