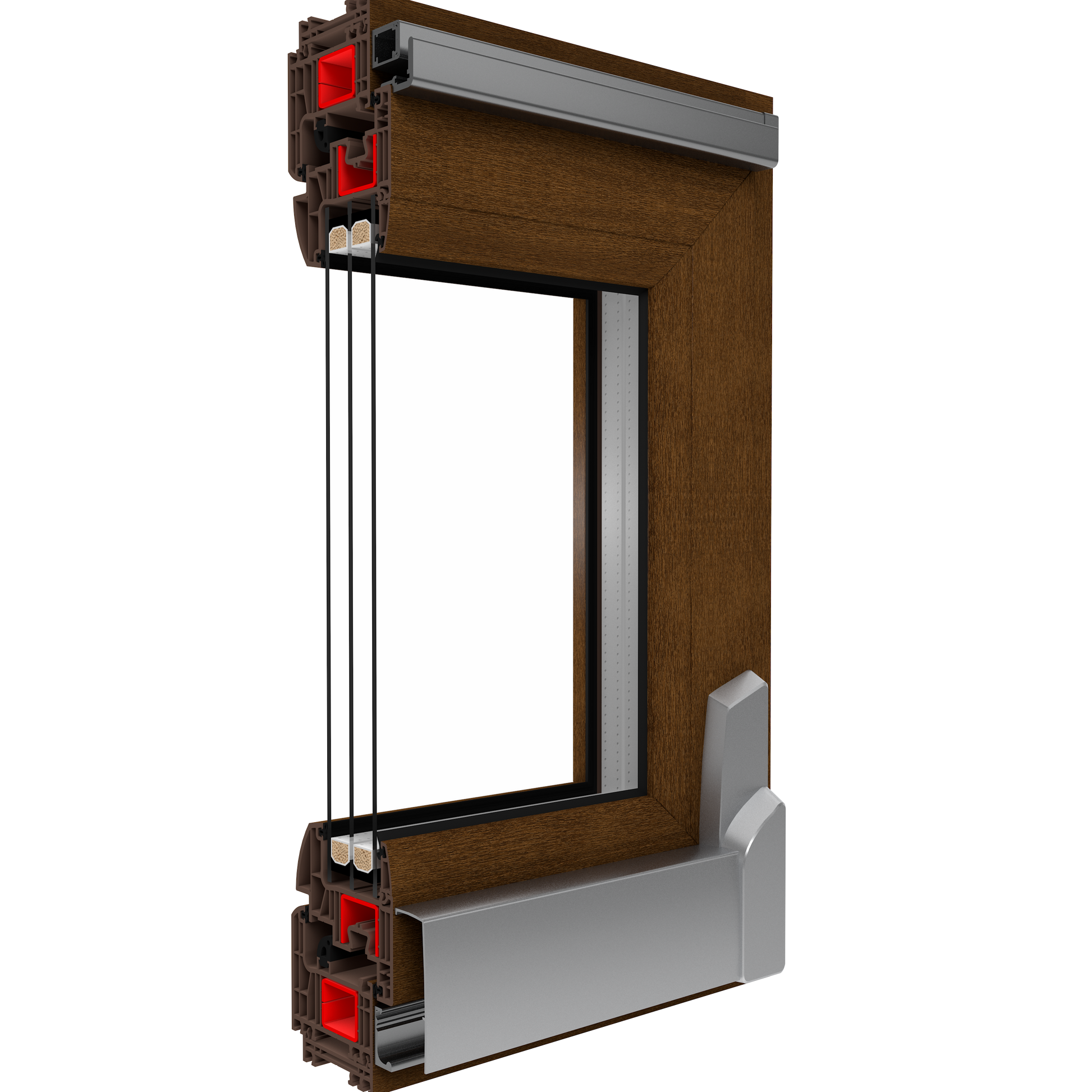

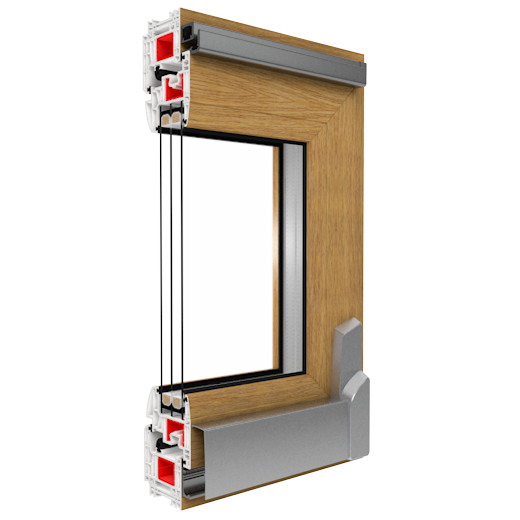

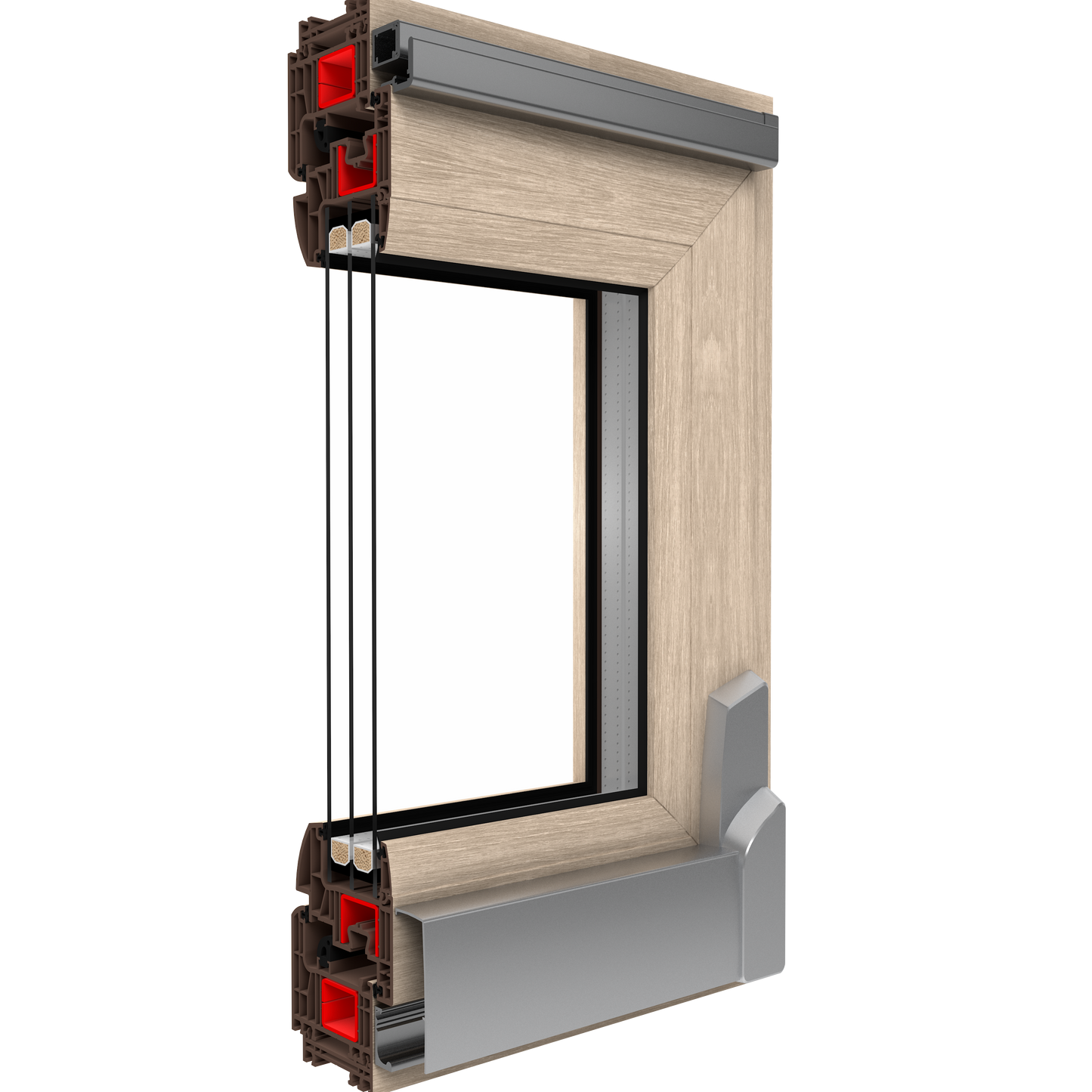

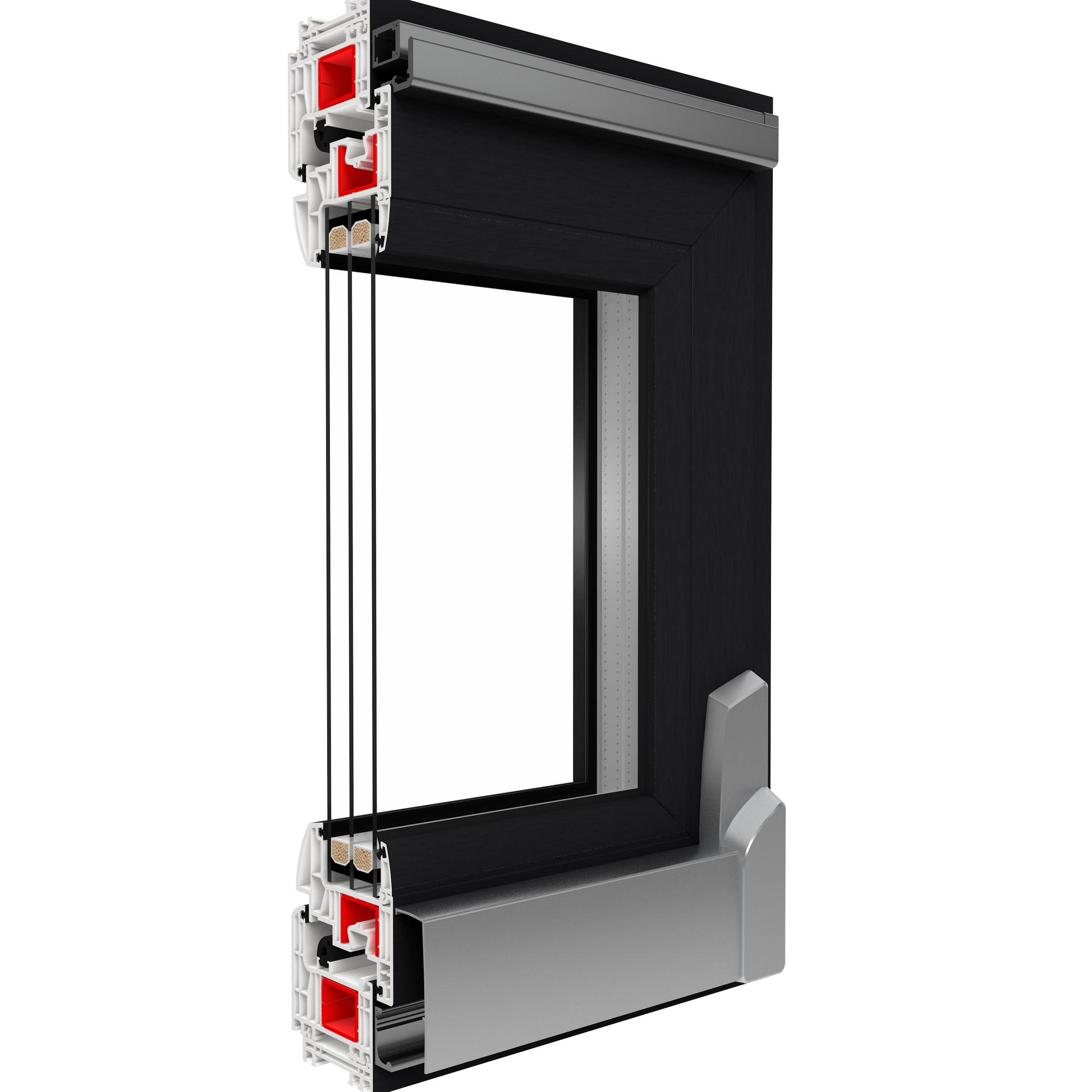

IGLO ENERGY PSK UPVC Tilt and Glide Patio doors

• MACO SKB-S System Standard fittings for window sashes weighing up to 160 kg
• 3-glazed (2-chamber) units infilled with argon gas, with Ug = 0.5 W/(m²K)
• profile core in white
• galvanised steel glass-pane spacer optional Swisspacer Ultimate glass-pane spacer
• 2 EPDM gaskets in black (external and internal) + 1 central gasket made of foamed EPDM, gaskets available in black
• gasket filling the lower fittings groove
• 2 mm full (closed) steel frame reinforcement, „c”-shaped steel sash reinforcement
• aluminium handle
• rail cover available in 4 colours: silver, white, light brown and brown
• 5-chamber PVC under-sill trim with a gasket

This 7-chamber tilt and slide half aligned terrace system with excellent thermal insulation properties will give every flat a unique feel. Innovative solutions and excellent thermal insulation properties ensure lower heating bills.

EPDM gaskets:

3

THERMAL TRANSMITTANCE:

Uw = 0,65 W/(m2K)*

NUMBER OF CHAMBERS:

7

INSTALLATION DEPTH:

82 mm

Glass packages:

24-48 mm

Class profile:

A
