IGLO Light Windows

• MACO MULTI-MATIC KS fittings with 2 anti-theft strikers with Silber-Look anti-corrosion coating for long-lasting protection and smooth operation of the fitting
• sash lifter (lifting mishandling device - depending on window height)
• microventilation in tilt and turn windows
• hinge covers in 4 colours: white, silver, light brown, brown
• aluminium handle
• 2-glazed (1-chamber) units infilled with argon gas with Ug = 1.1 W/(m²K)
• Swisspacer Ultimate plastic warm frame - as a free elective option
• glass-pane spacer made of galvanised steel
• 2 EPDM gaskets in black (external and internal)
• gasket filling the lower fittings groove/li>
• 1.5 mm steel reinforcement for frame and sash (2mm for balcony door sash), „c”-shaped
• profile core in white
• 5-chamber PVC under-sill trim with gasket
• V-Perfect welding

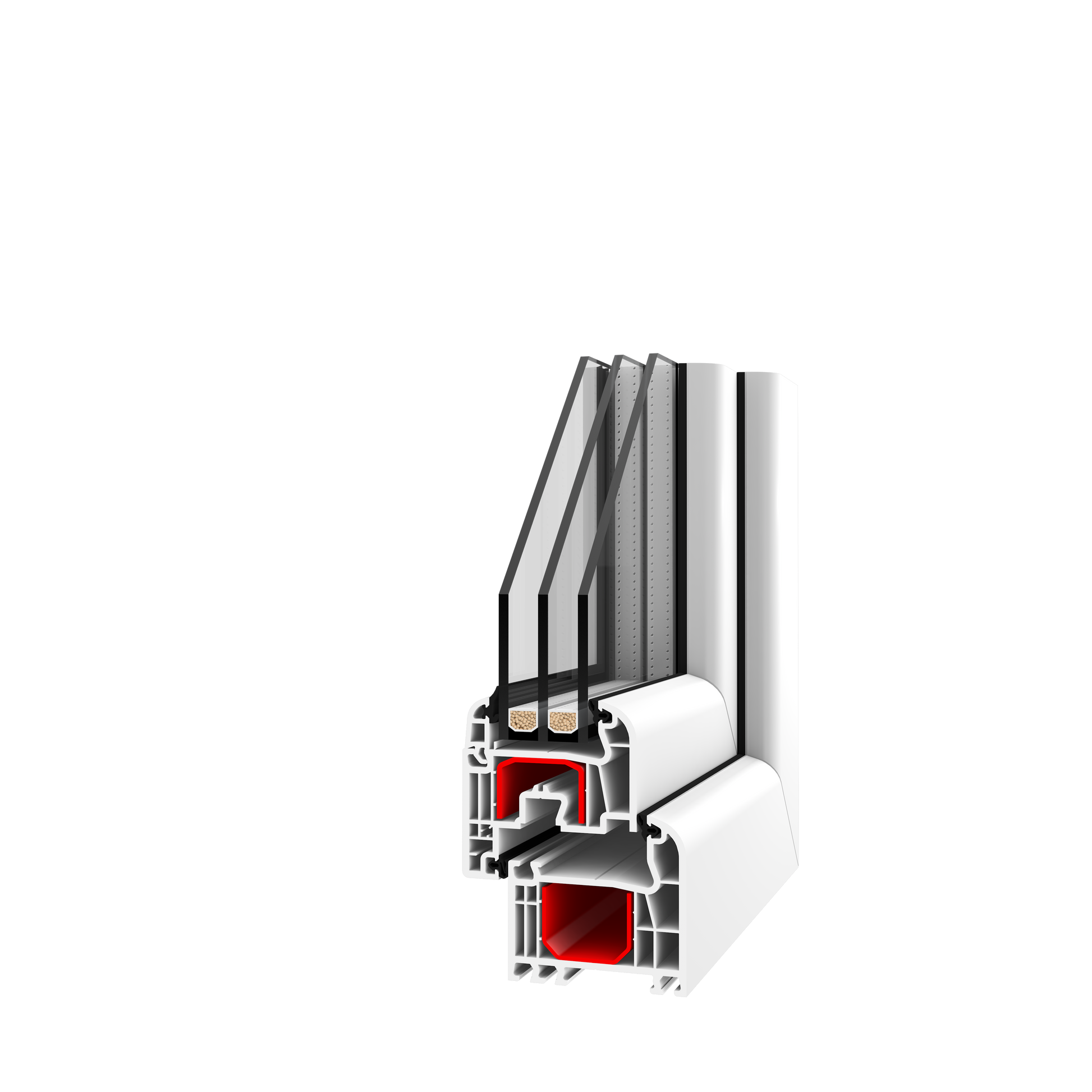

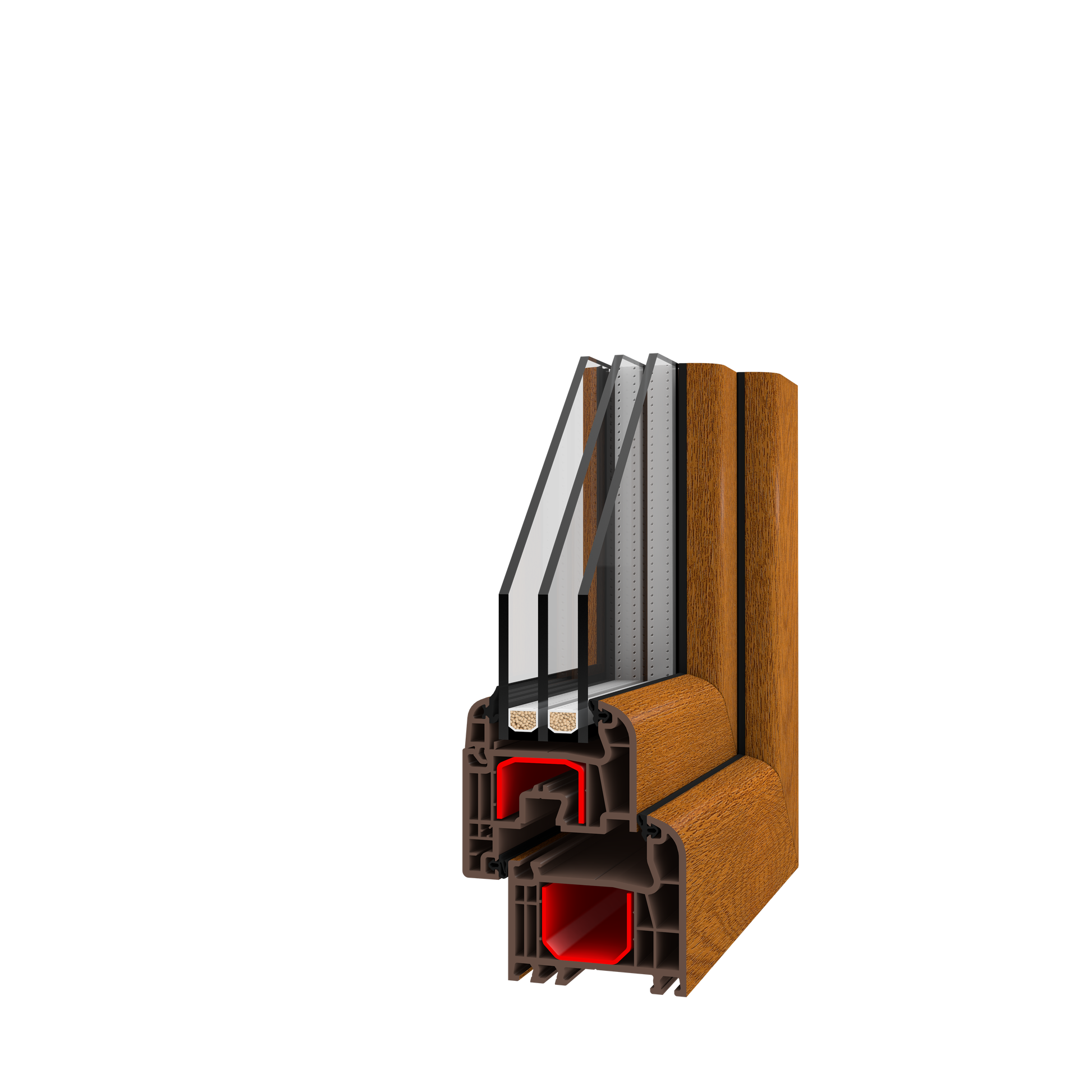

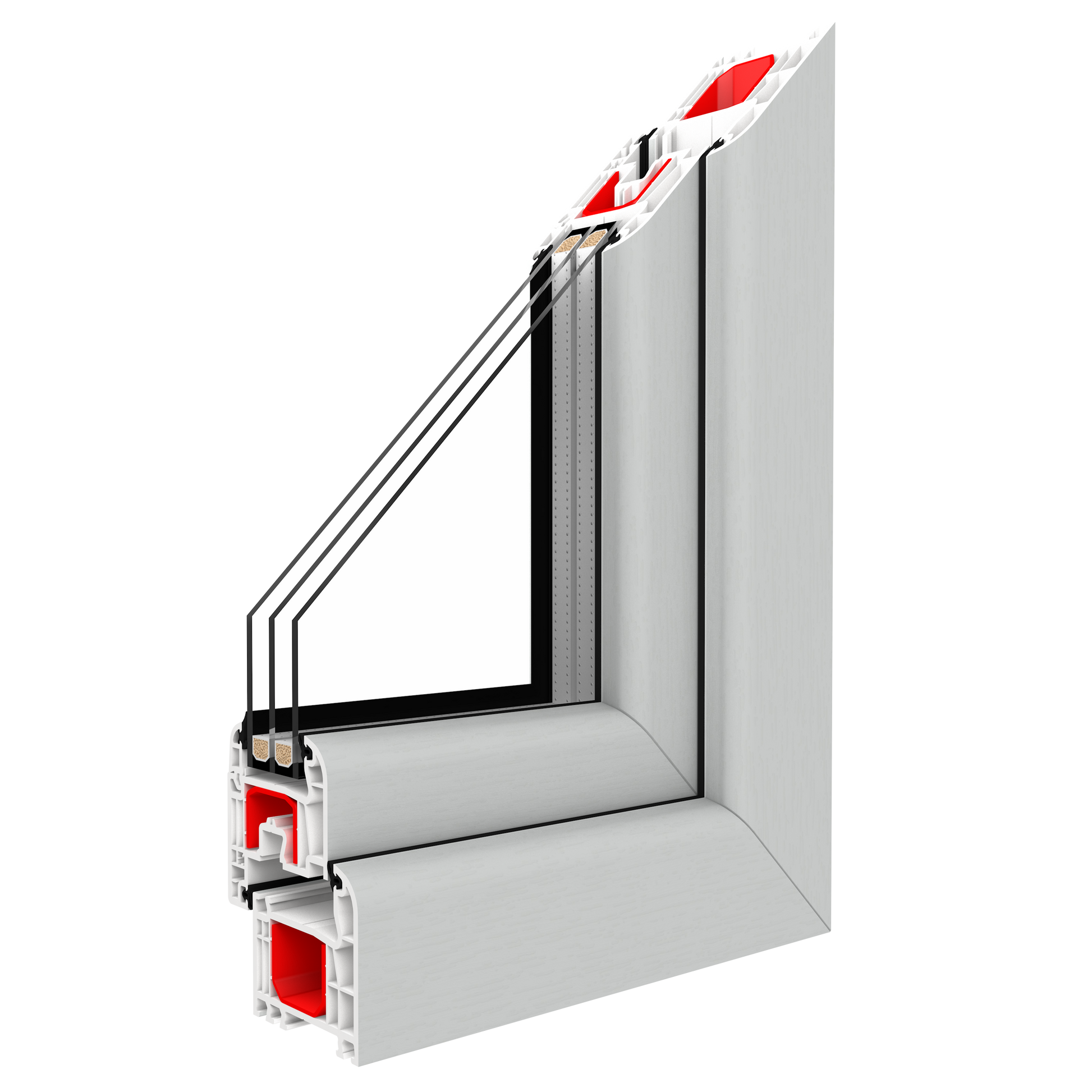

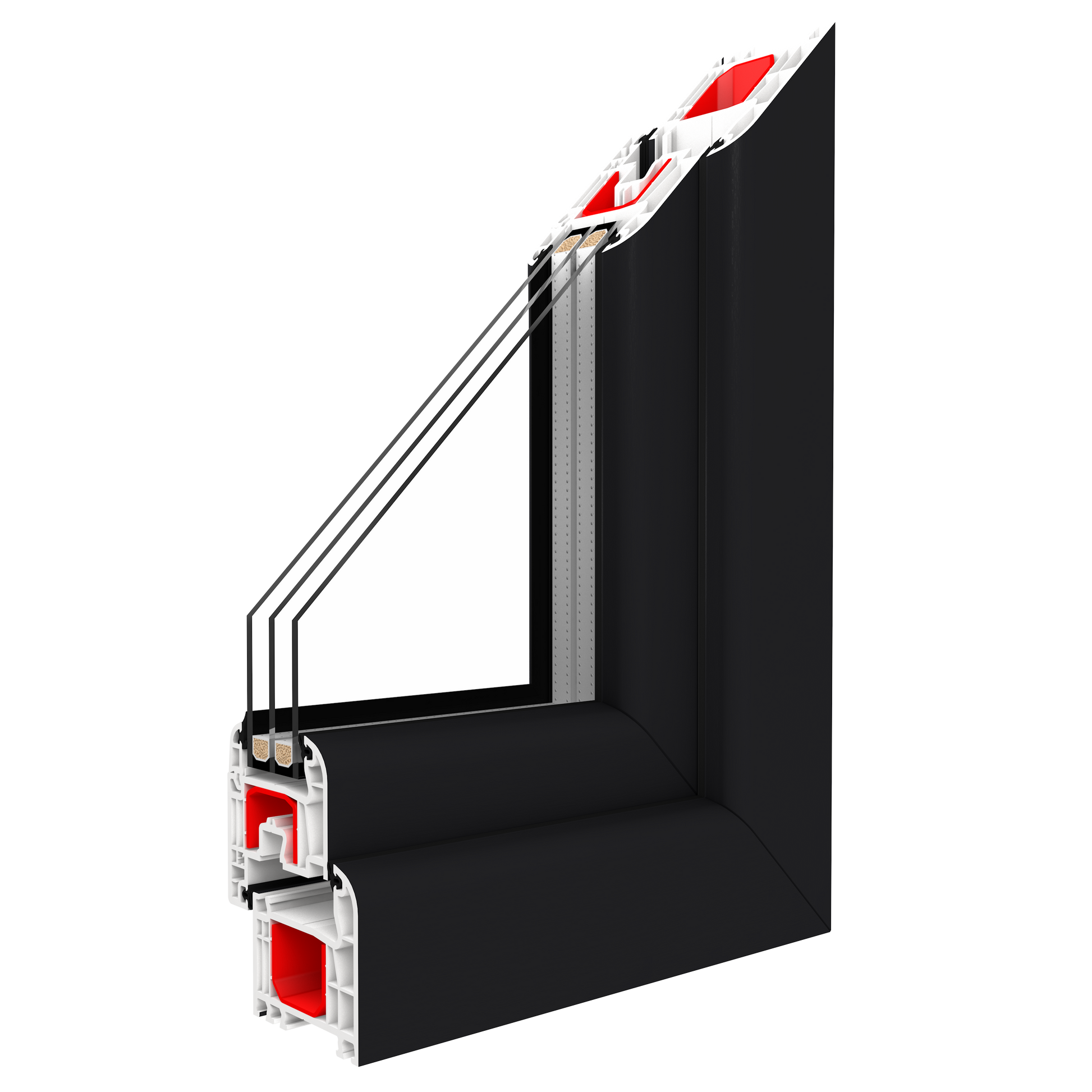

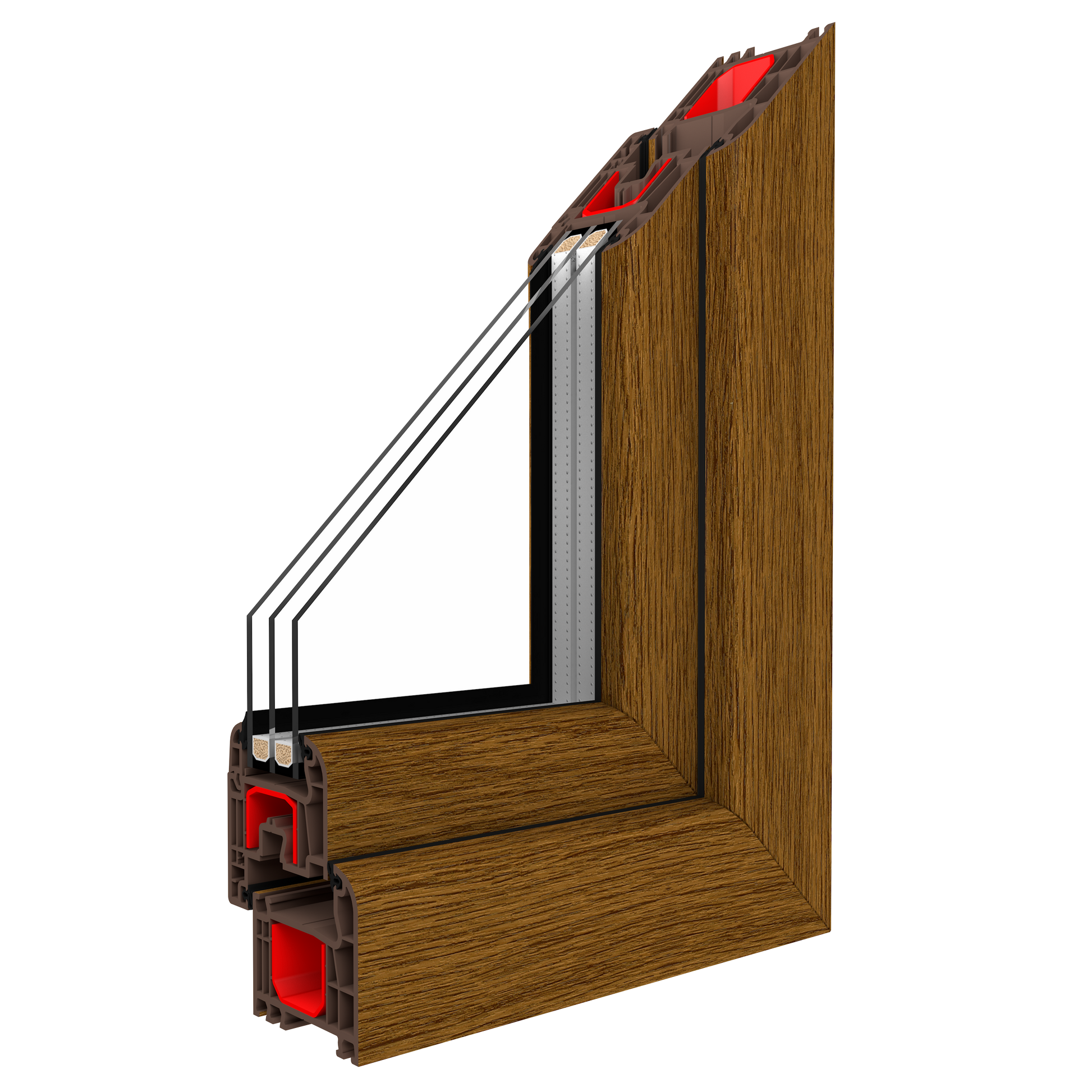

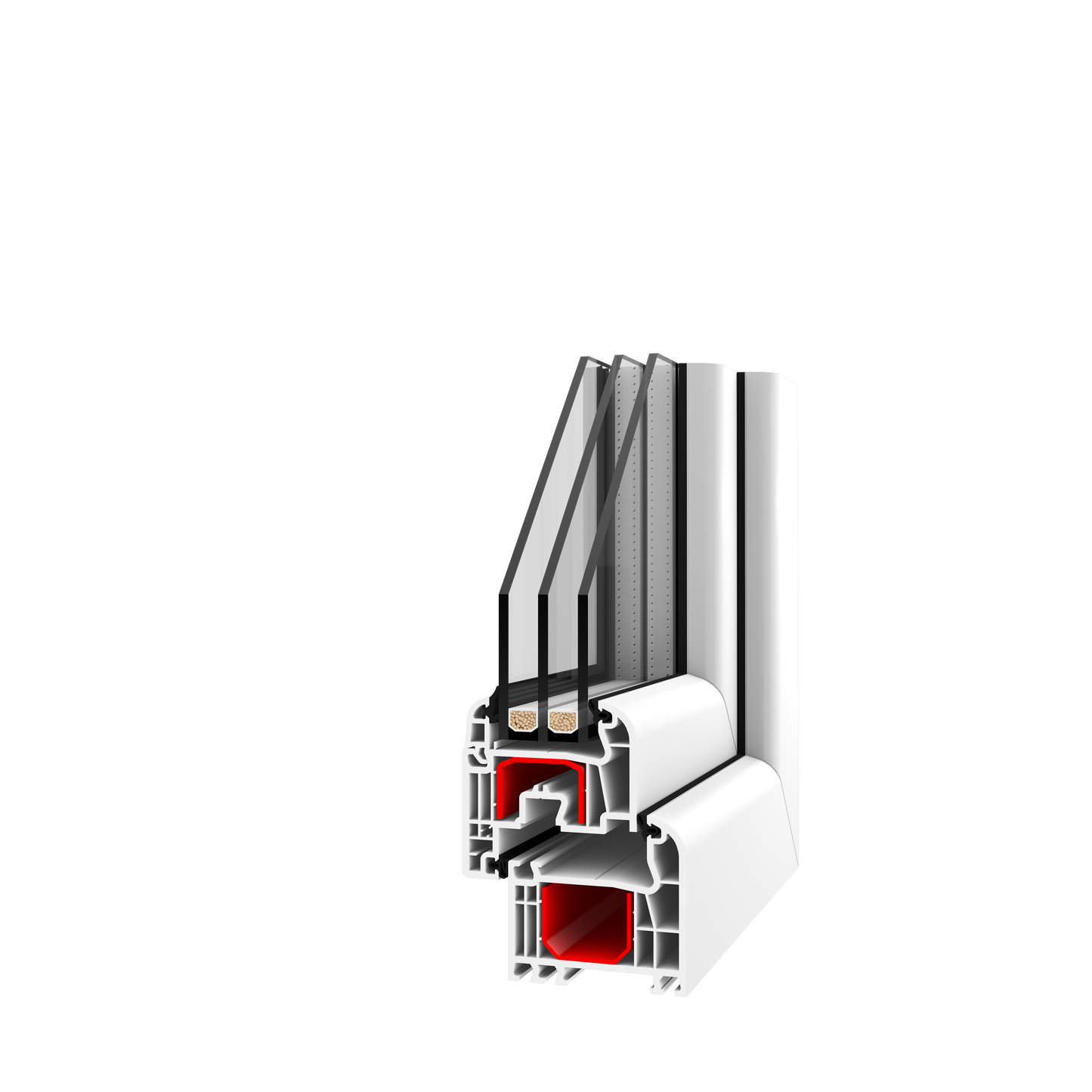

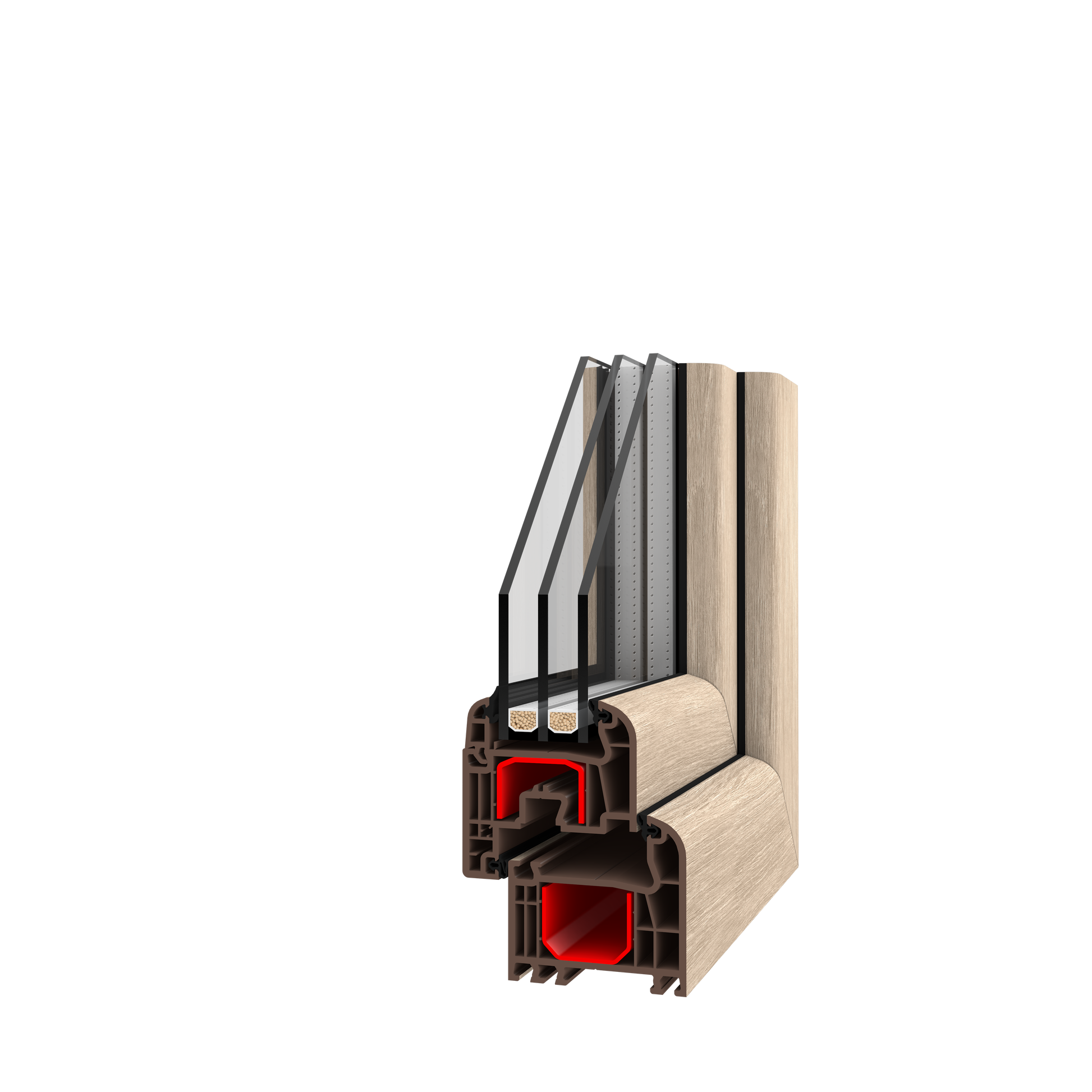

This 5-chamber and original system stands out for its high aesthetic values and thin frame and sash profiles.

Compared to traditional systems, it has a 32% thinner movable post to improve the amount of daylight that reaches a room.

Sound insulation:

dB = 34

EPDM gaskets:

2

THERMAL TRANSMITTANCE:

Uw = 0,88 W/(m2K)*

NUMBER OF CHAMBERS:

5

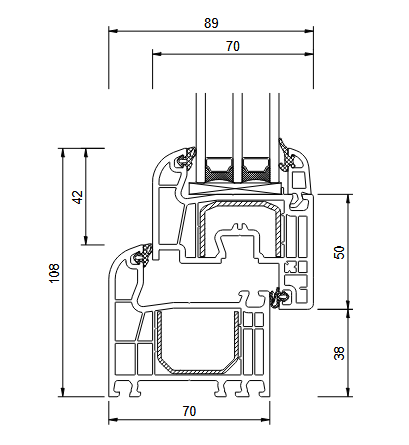

INSTALLATION DEPTH:

70 mm
