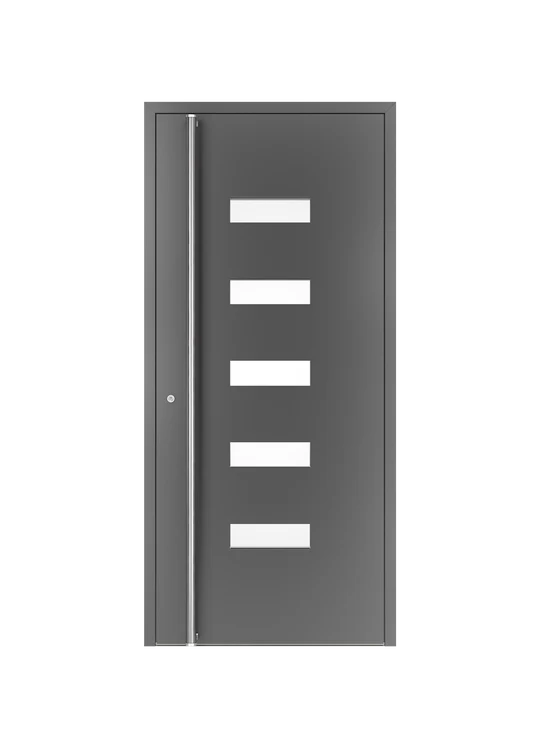

MB 86 SI doors California 1 C
MB 86 SI doors California 1 C
The MB-86SI is a high-performance aluminium door system designed for exceptional thermal insulation, durability, and security. Its advanced 3-chamber construction with reinforced polyamide thermal breaks makes it ideal for both residential and commercial buildings, including integration with aluminium facades.
Features
Features
- Outstanding Energy Efficiency:
Exceptional thermal performance thanks to enhanced multi-chamber insulation and wide thermal breaks. - High Security Options:
Multi-point MACO espagnolette locking system, with optional 1-point deadbolt, fingerprint ID, keypad, or manual access. - Superior Sealing:
Two-component EPDM central seal enhances both thermal and acoustic insulation. - Flexible Glazing Options:
Supports advanced glass units including acoustic, laminated, safety, solar-protective, and obscure glazing. - Durability & Design:
Robust aluminium construction with slim profiles for large glazing surfaces without compromising stability. - Ventilation & Ease of Use:
Integrated microventilation with turn-tilt sash lifter and operation lock for safety and convenience. - Fittings & Hardware:
High-quality MACO Multi Matic hardware with optional concealed fittings and long-term reliability.
Specifications
Specifications
- System Type: 3-chamber thermally insulated aluminium profile
- Frame Depth: 77 mm
- Sash Depth: 86 mm
- Sealing System: Central EPDM seal with disc and stop gaskets
- Glass Thickness: Up to 50 mm (double, triple, or quad glazing)
- Thermal Break: Polyamide with GRP reinforcement and extra insulating chamber
- Thermal Insulation (U-value):
- Colours: Over 270 RAL colours + woodgrain options
- Glazing Bead Styles: Standard, Prestige, Style
