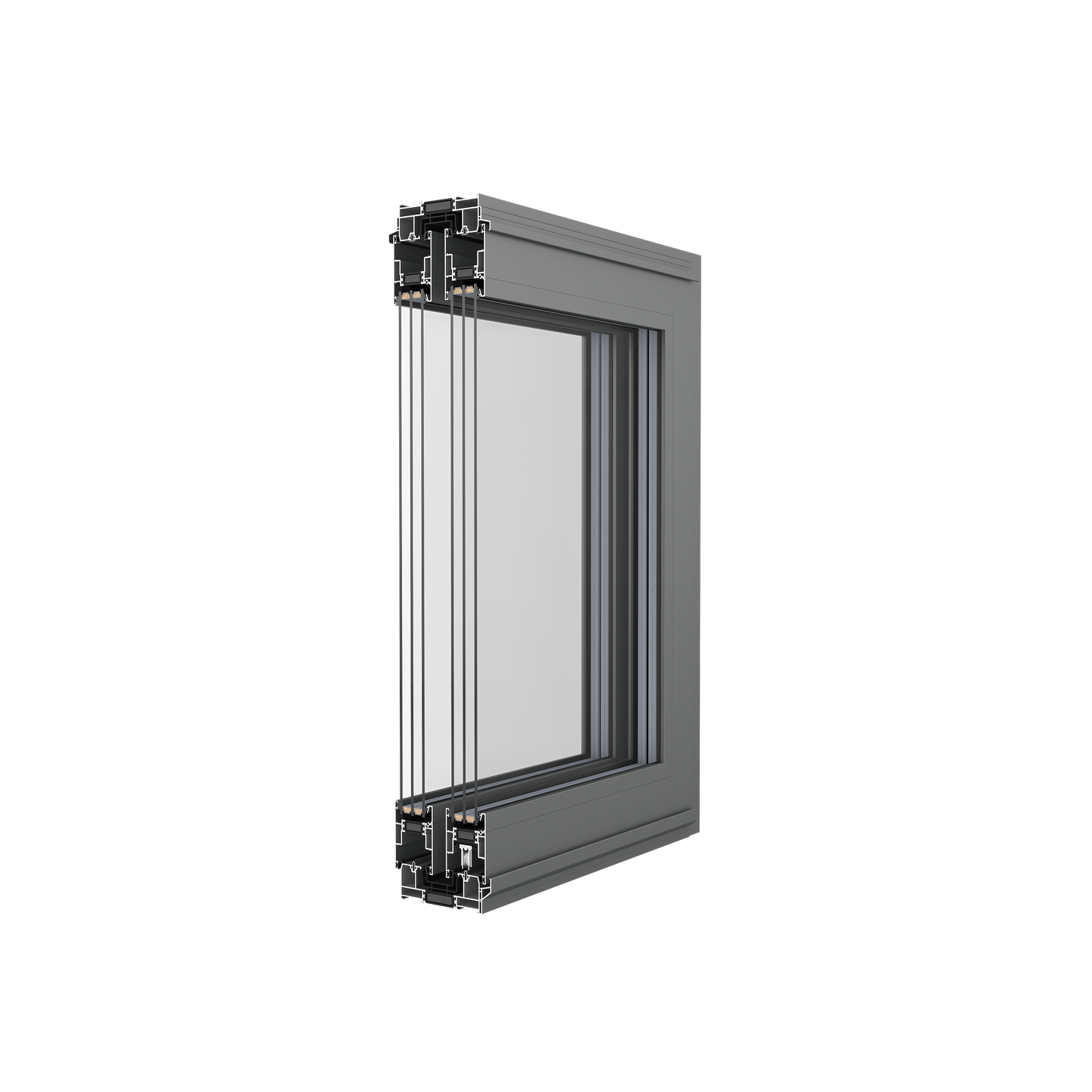

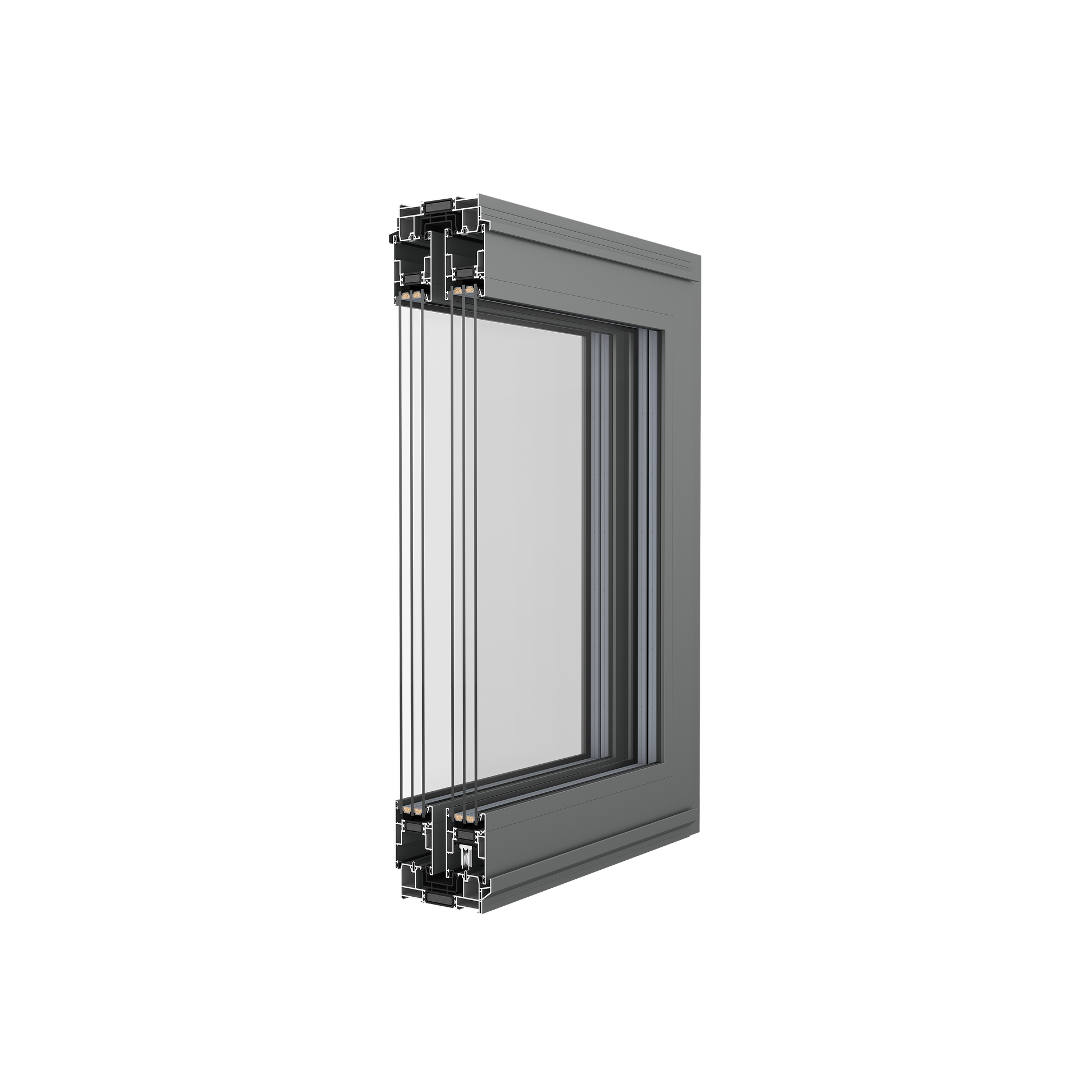

MB59 HS HI

• G-U lift and slide fittings with 3 locking bolts
• micro-ventilation striker
• aluminium handle on the inside, recessed grip on the outside
• 3-glazed (2-chamber) units infilled with argon gas, with Ug = 0.5 W/(m²K)
• glass-pane spacer made of galvanised steel
• 2 EPDM gaskets in black (external and internal)
• system carts with a load capacity of 300 kg
• 48 mm high threshold
• RAL matt color: white (9016), anthracite (7016)

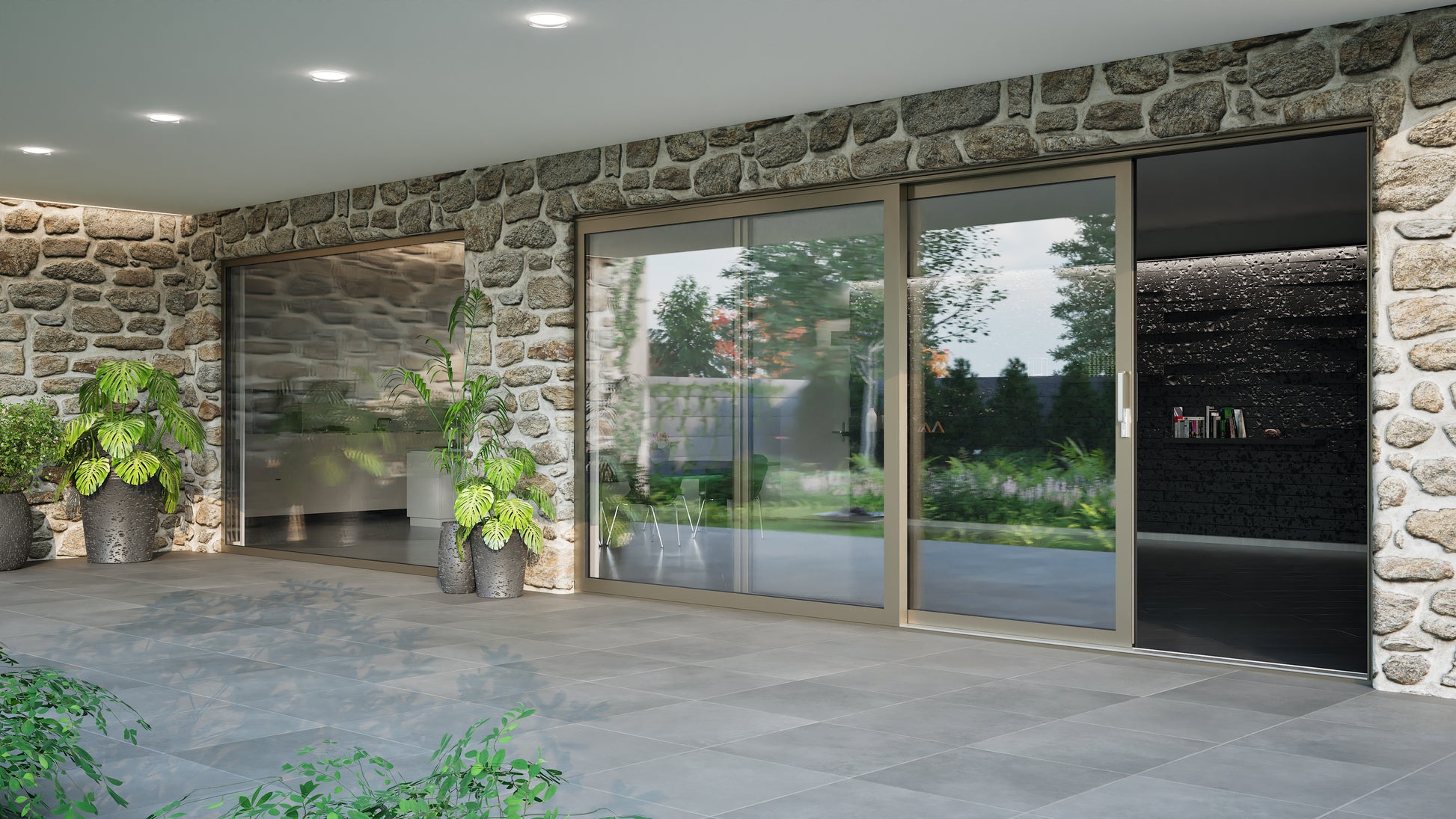

Lift & slide door is the perfect integrating element that connects rooms or winter gardens with external spaces. It provides a convenient exit to the balcony, terrace or garden.

EPDM gaskets:

2

THERMAL TRANSMITTANCE:

Uw = 1,5 W/(m2K)*

NUMBER OF CHAMBERS:

3

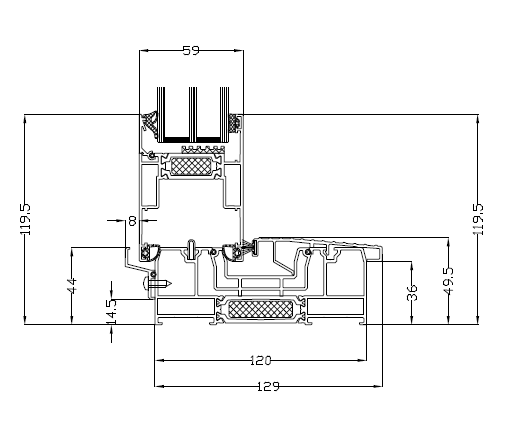

INSTALLATION DEPTH:

120 mm
