MB77 HS HI Lift and Glide 4 part Patio doors

• G-U lift and slide fittings with 3 locking bolts
• micro-ventilation striker
• aluminium handle on the inside, recessed grip on the outside
• 3-glazed (2-chamber) units infilled with argon gas, with Ug = 0.5 W/(m²K)
• glass-pane spacer made of galvanised steel
• 2 EPDM gaskets in black (external and internal)
• system carts with a load capacity of 300 kg
• 48 mm high threshold
• RAL matt color: white (9016), anthracite (7016)

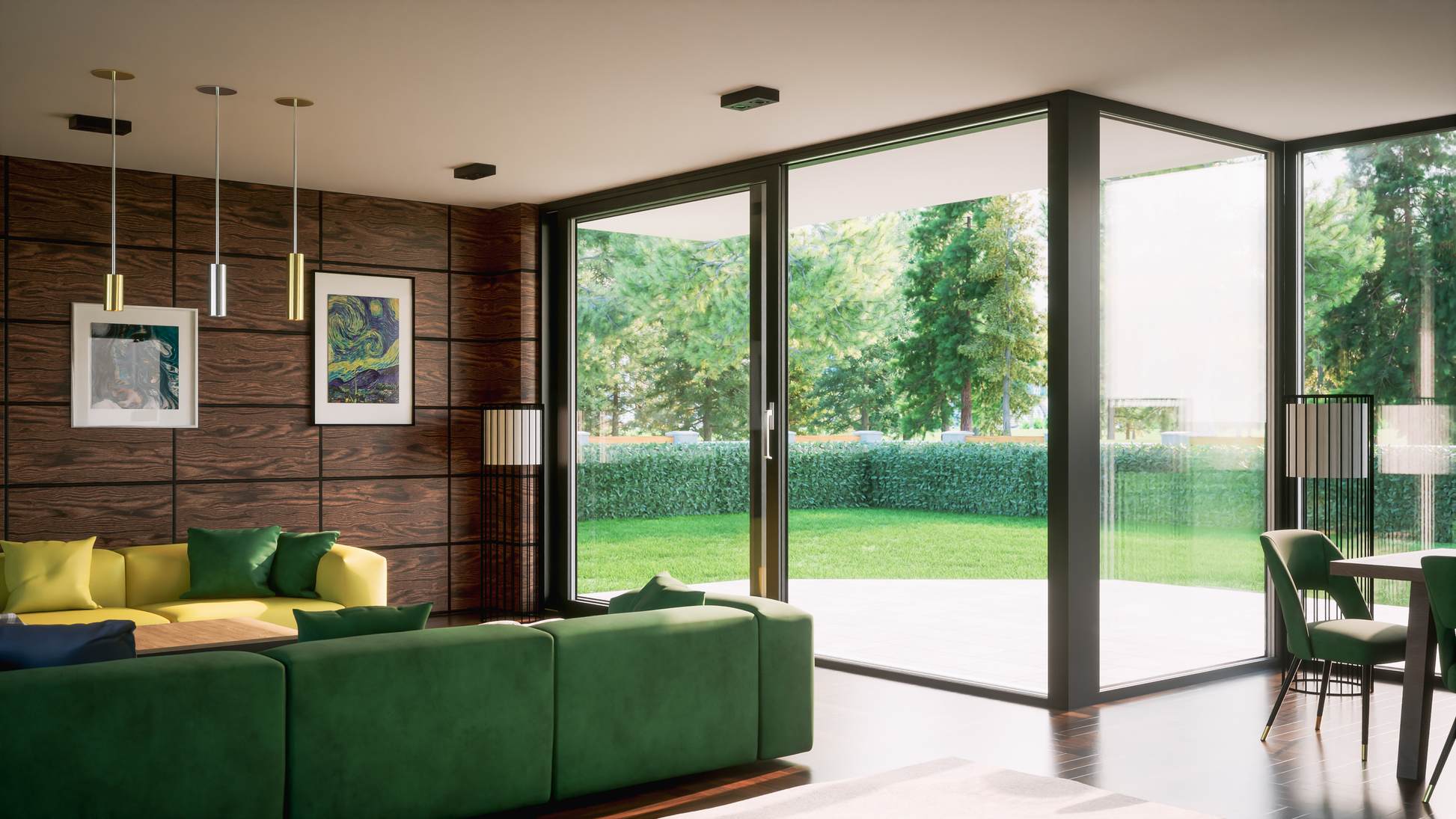

These aluminium terrace systems are an ideal solution to create trendy, large-size terrace and balcony glazing to give interiors a unique feel. With their extremely durable structure, you can use leaves up to 400 kg. A low aluminium threshold that can be hidden in the floor adds to its excellent functionality.
EPDM gaskets:

2

THERMAL TRANSMITTANCE:

Uw = 1,0 W/(m2K)*

NUMBER OF CHAMBERS:

3

INSTALLATION DEPTH:

174 mm
