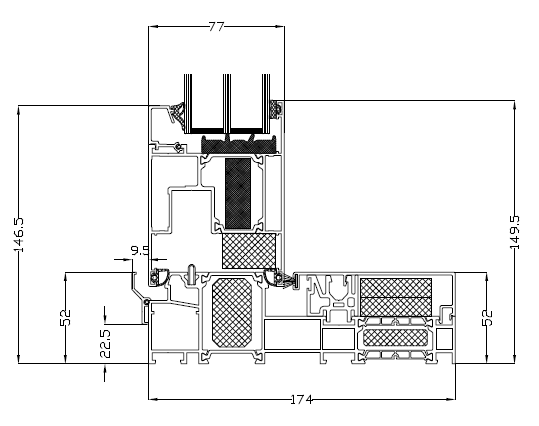

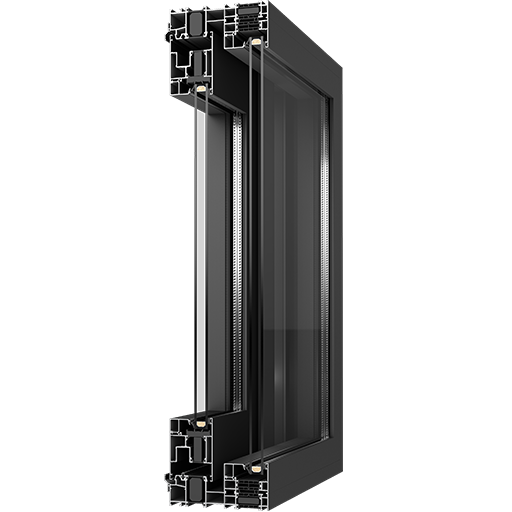

MB77 HS HI MONORAIL

• G-U lift and slide fittings with 3 locking bolts
• micro-ventilation striker
• aluminium handle on the inside, recessed grip on the outside
• 3-glazed (2-chamber) units infilled with argon gas, with Ug = 0.5 W/(m²K)
• glass-pane spacer made of galvanised steel
• 2 EPDM gaskets in black (external and internal)
• system carts with a load capacity of 300 kg
• 48 mm high threshold
• RAL matt color: white (9016), anthracite (7016)

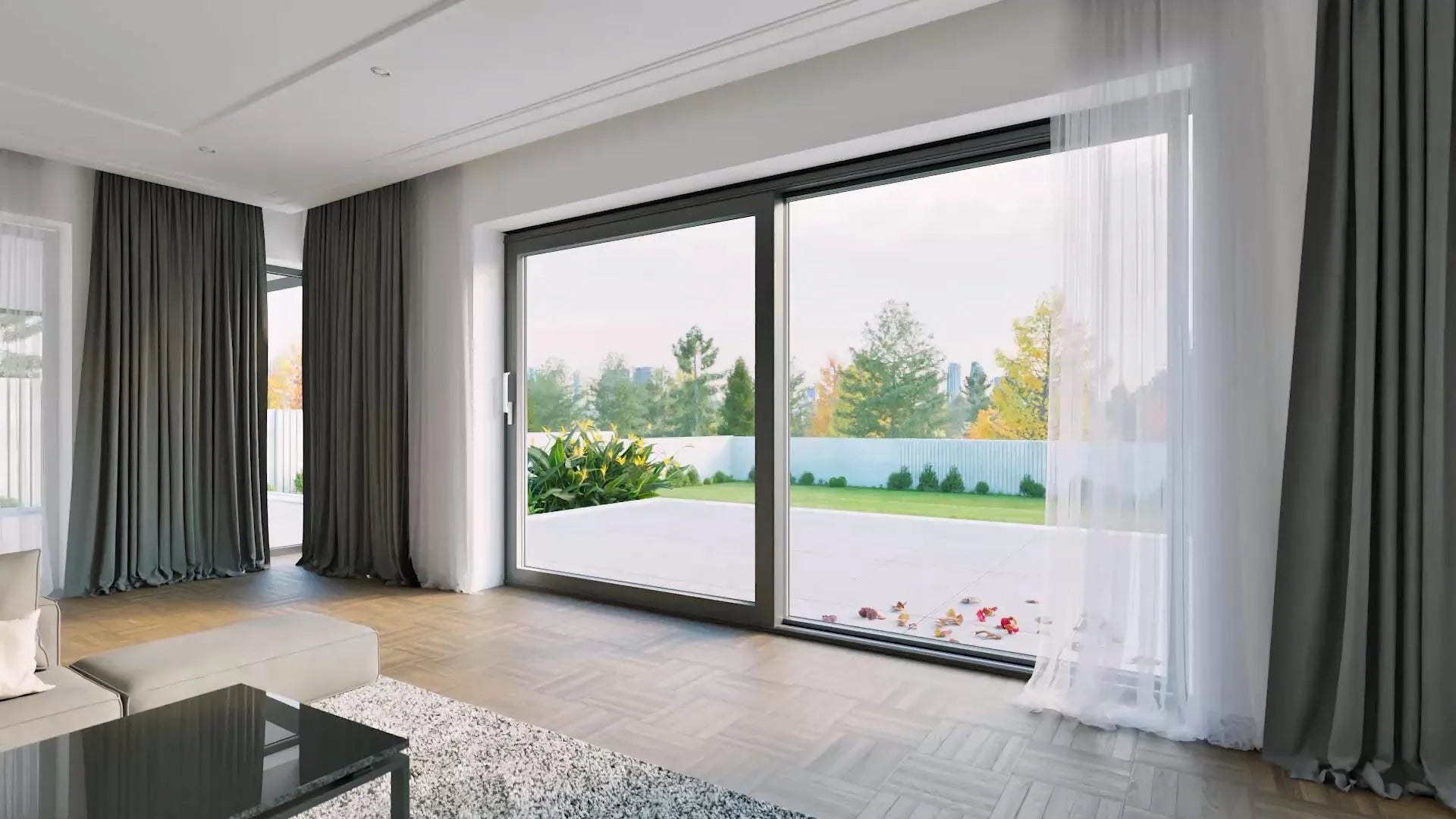

The MB-77HS HI MONORAIL "Lift & Slide" door product is an ideal solution for connecting interior space rooms or conservatories with the outside balcony, terrace or garden area.

EPDM gaskets:

2

THERMAL TRANSMITTANCE:

Uw = 0,75 W/(m2K)*

NUMBER OF CHAMBERS:

3

INSTALLATION DEPTH:

174 mm
