MB77 HS Lift & Glide 2 part Patio doors
MB77 HS Lift & Glide 2 part Patio doors
A stylish and thermally efficient 2-panel lift & slide aluminium door, offering smooth operation and excellent insulation—ideal for modern panoramic designs up to 6.5 metres wide.
Features
Features
- Ideal for medium-to-large panoramic openings (up to 6.5 m wide)
- Smooth and reliable lift & slide operation with heavy-duty hardware
- Strong thermal insulation with optional acoustic and solar protection
- Space-saving design for unobstructed indoor layouts
- Fully sealed with EPDM gaskets for air and water tightness
- High-security fittings with night vent position and burglar resistance
- Optional smart automation for remote operation
- Multiple customisation options for glazing, colour, and hardware style
Specifications
Specifications

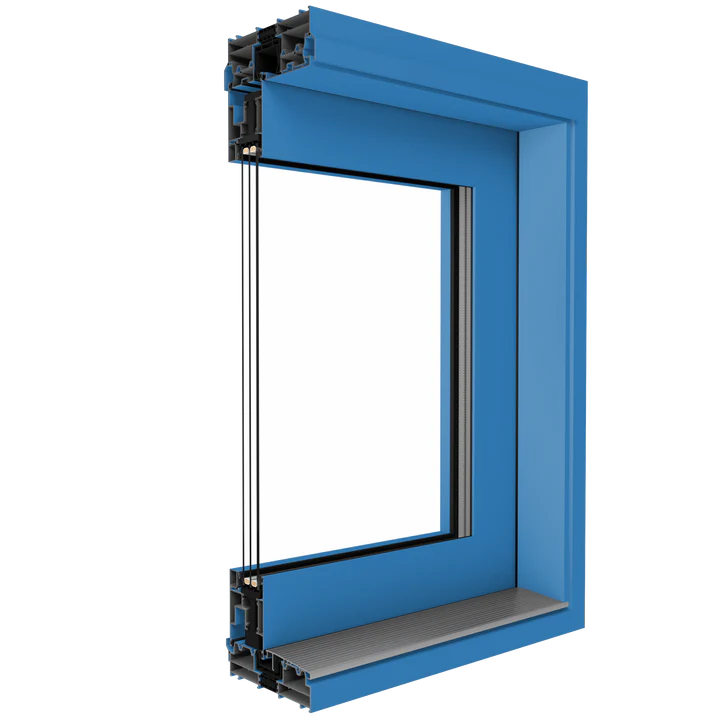

- System Type: Multi-chamber aluminium lift & slide door
- Configuration: 2-part, twin-track system
- Max Dimensions: Up to 6.5 m width x 2.6 m height
- Frame Depth: 174 mm
- Sash Depth: 77 mm
- Max Glazing Thickness: Up to 55 mm
- Compatible System: MB-86
- U-Value (Standard Double Glazed): ~1.0 W/(m²K)
- Optional U-Values:
- Sash Weight Capacity: Up to 400 kg
- Opening System: Manual or automatic (remote-controlled) lift & slide
- Threshold: Flush aluminium threshold with thermal break
- Colours: 200+ RAL colours, woodgrain and textured finishes
- Security: PAS 24 compliant
- Glazing Options:
- Standard: 4 mm toughened Low-E Thermofloat, Swiss spacer, argon-filled
- Optional: Triple/quad glazing, acoustic, solar control, laminated or security glass
