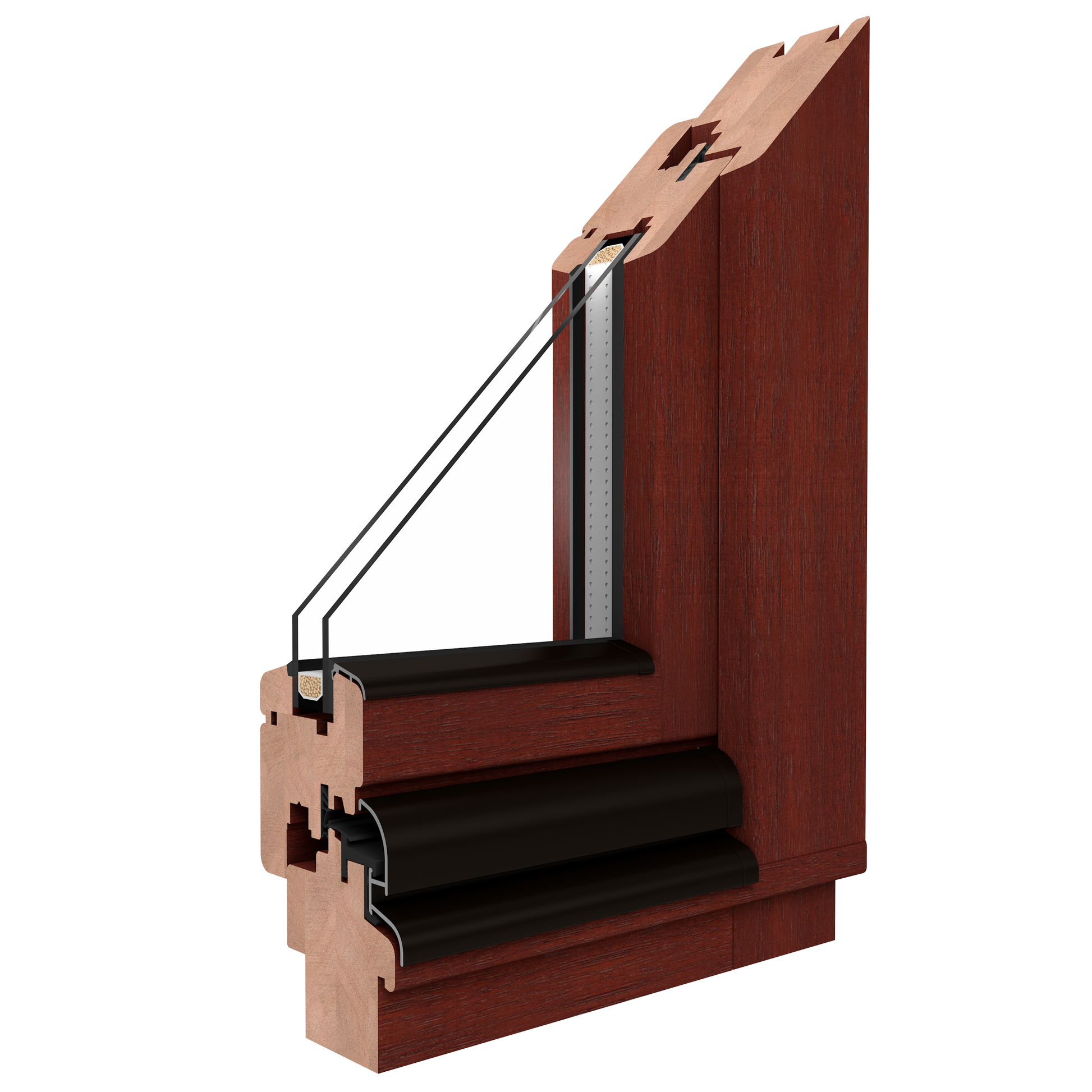

Softline 68 Meranti Windows Dummy Fixed

• Elegant Design
  Streamlined profile with soft, rounded contours and a smooth, shiny surface finish for a refined look.
• Premium Materials
  Crafted from carefully selected Meranti 450+ or pine wood, using only high-quality components for superior performance and durability.
• Ecological Approach
  Eco-friendly water-based varnishes and the use of natural wood promote sustainability and environmental care.
• Durability & Protection
  An external aluminium drip board protects the timber from UV radiation and moisture, while the integrated thermos-drip system ensures efficient water drainage.
• Versatile Interior Design
  Wide range of transparent and opaque stains and paints available, allowing for custom interior design options.
• Energy Efficiency
  Excellent thermal insulation thanks to advanced sealing systems, optimized glass packages, and resin-dipped timber for enhanced protection.

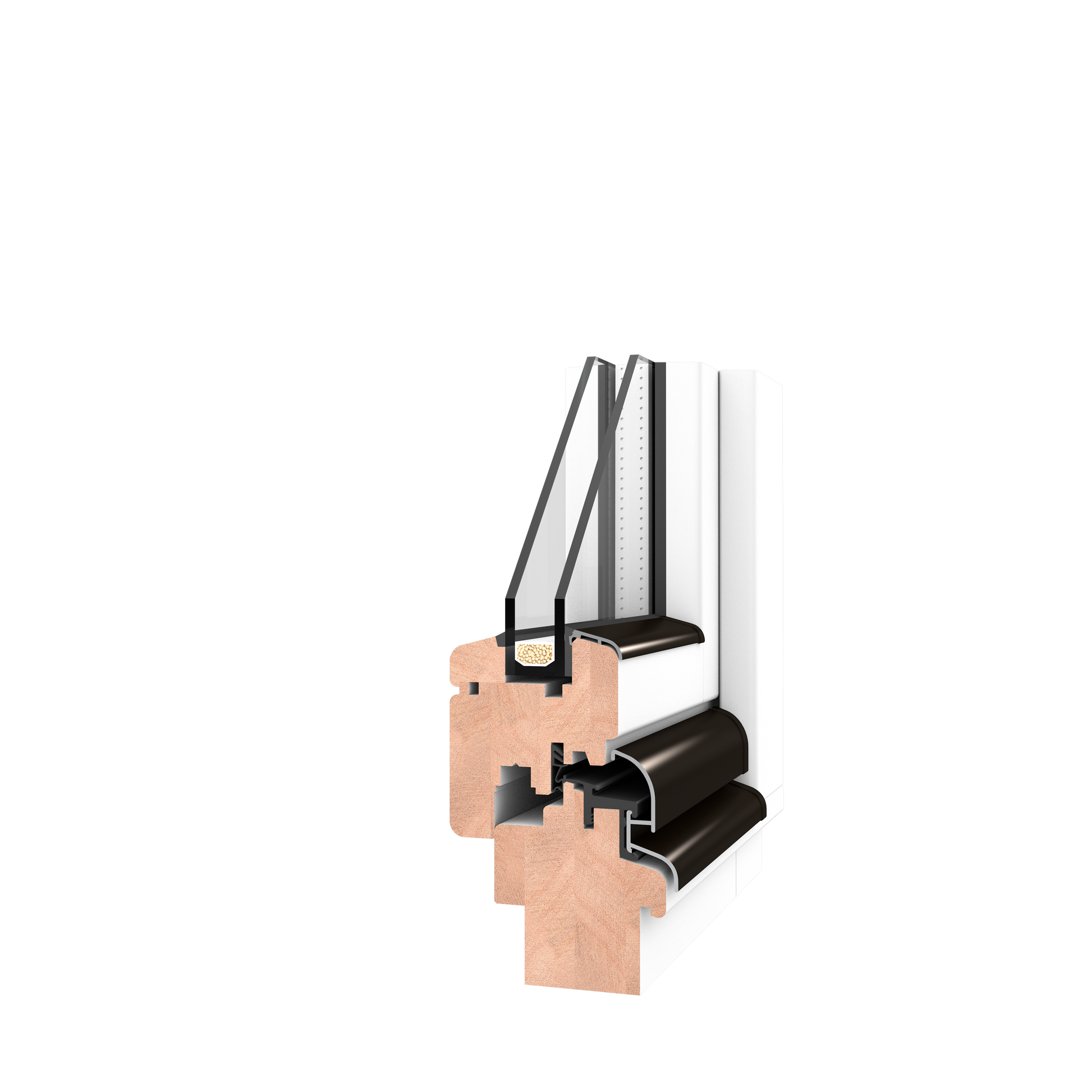

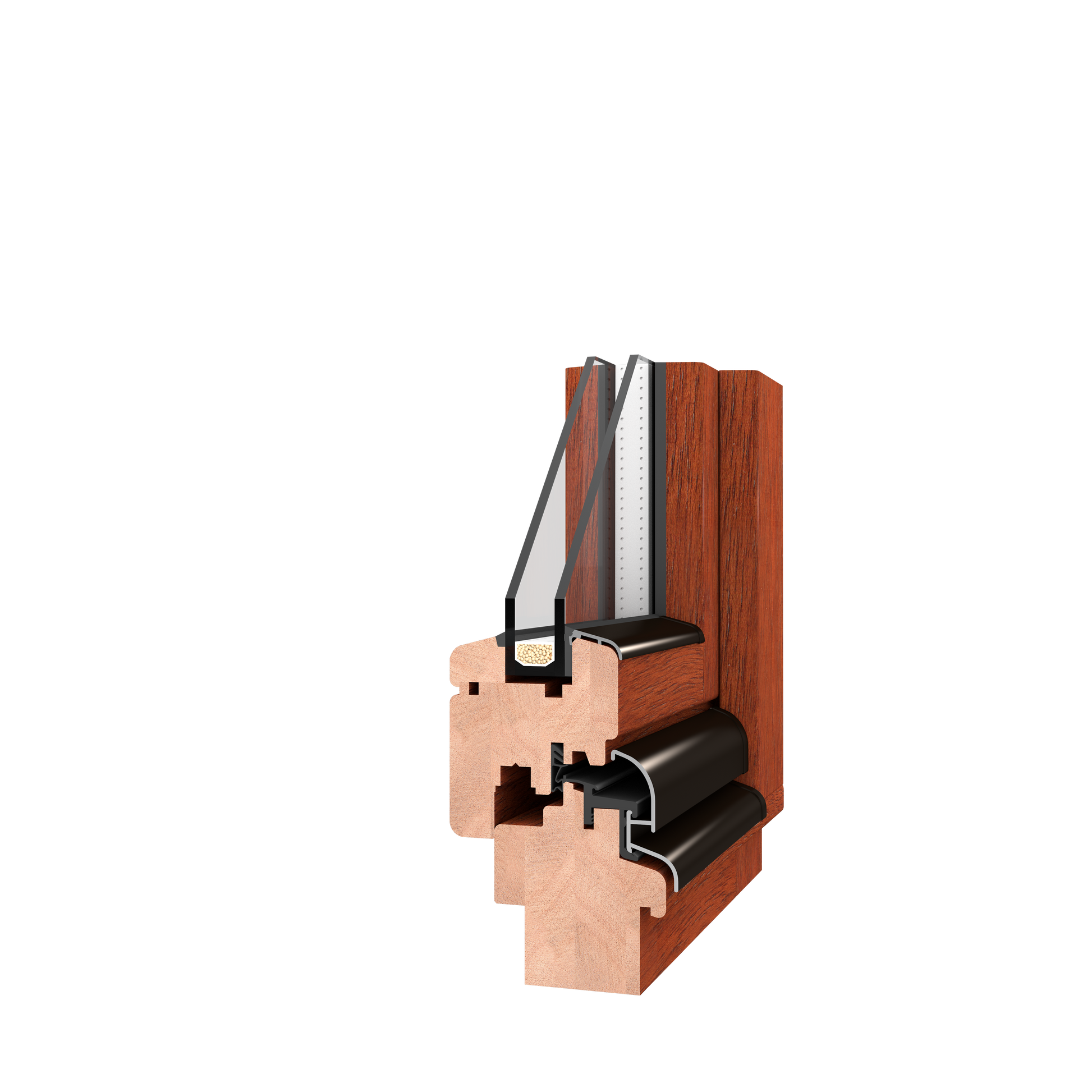

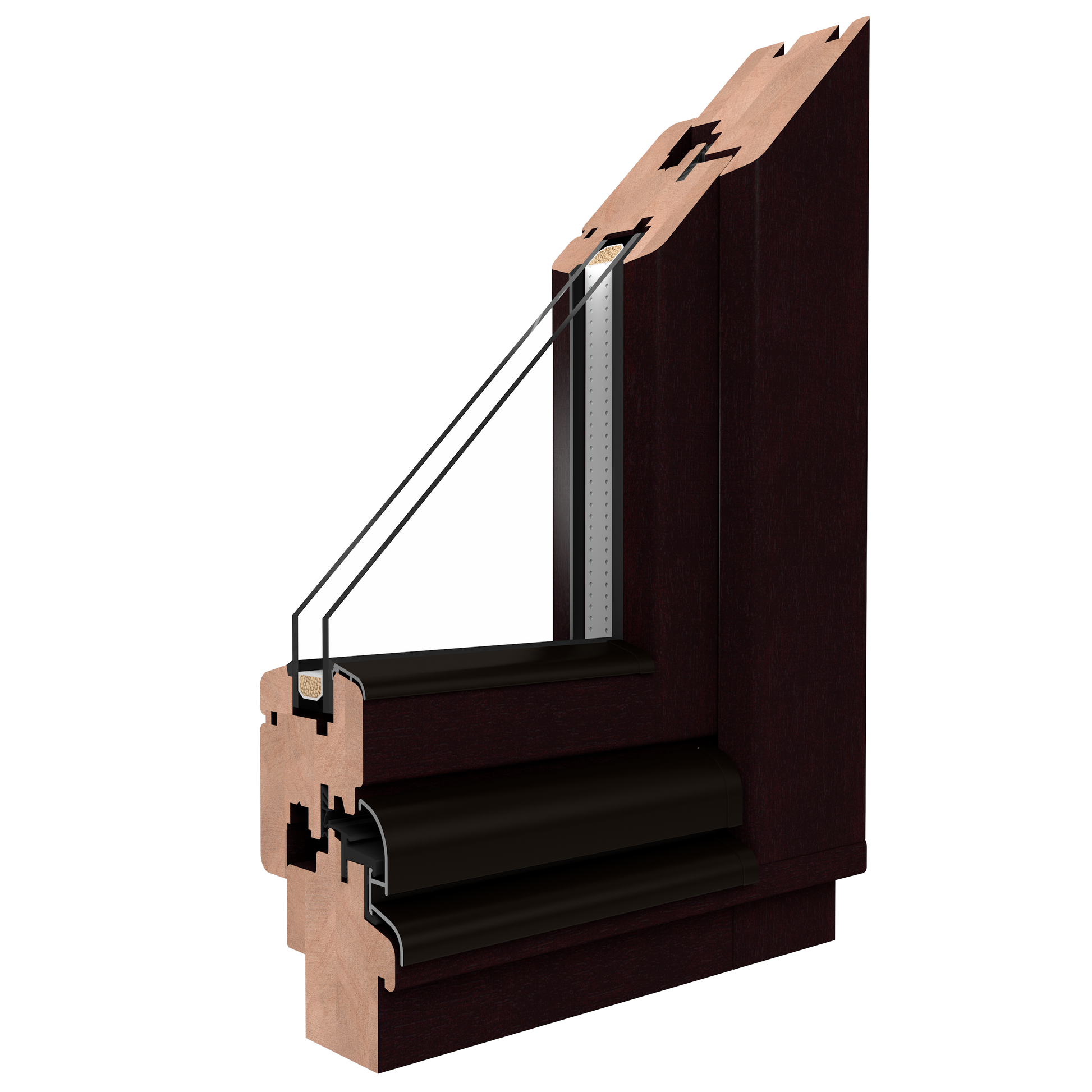

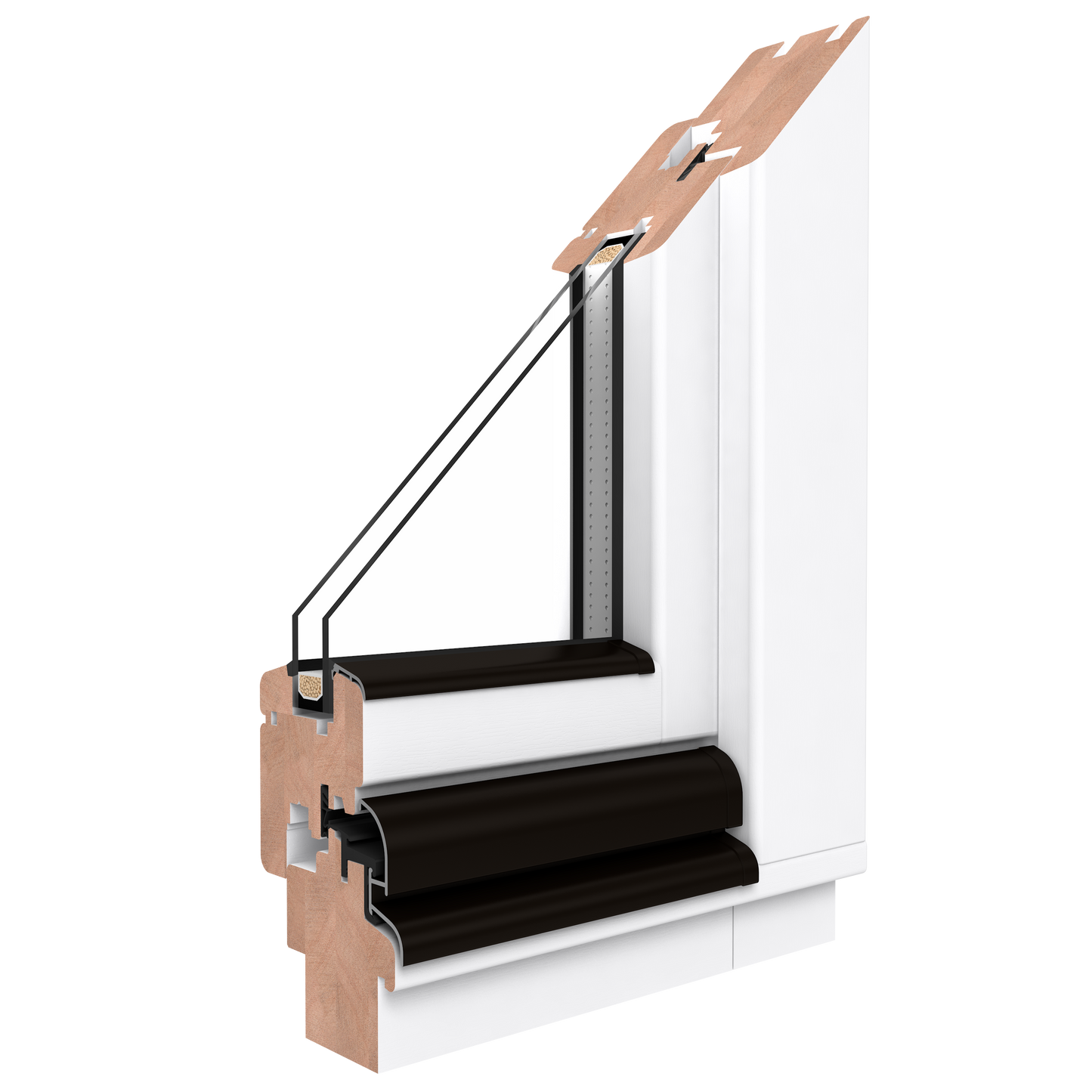

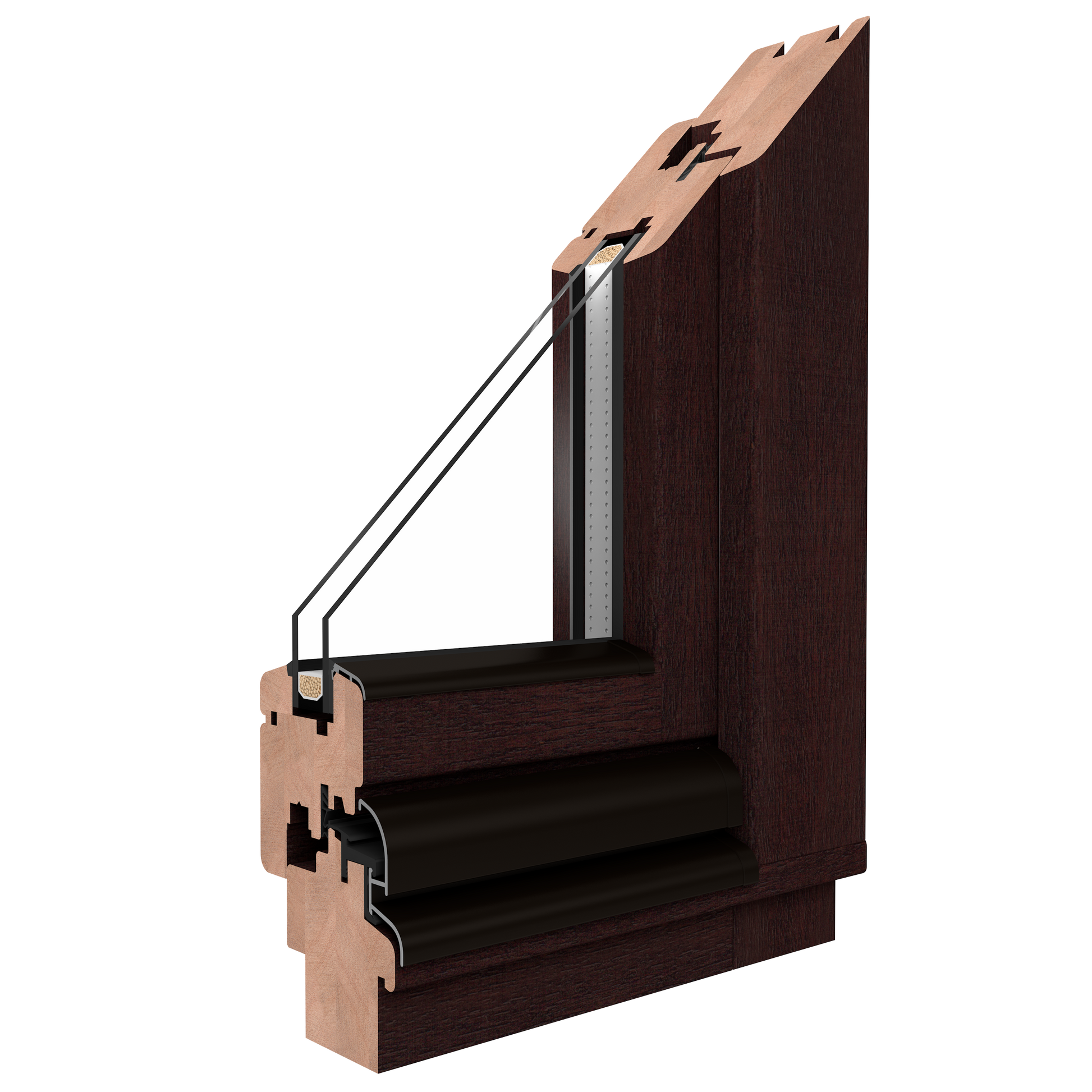

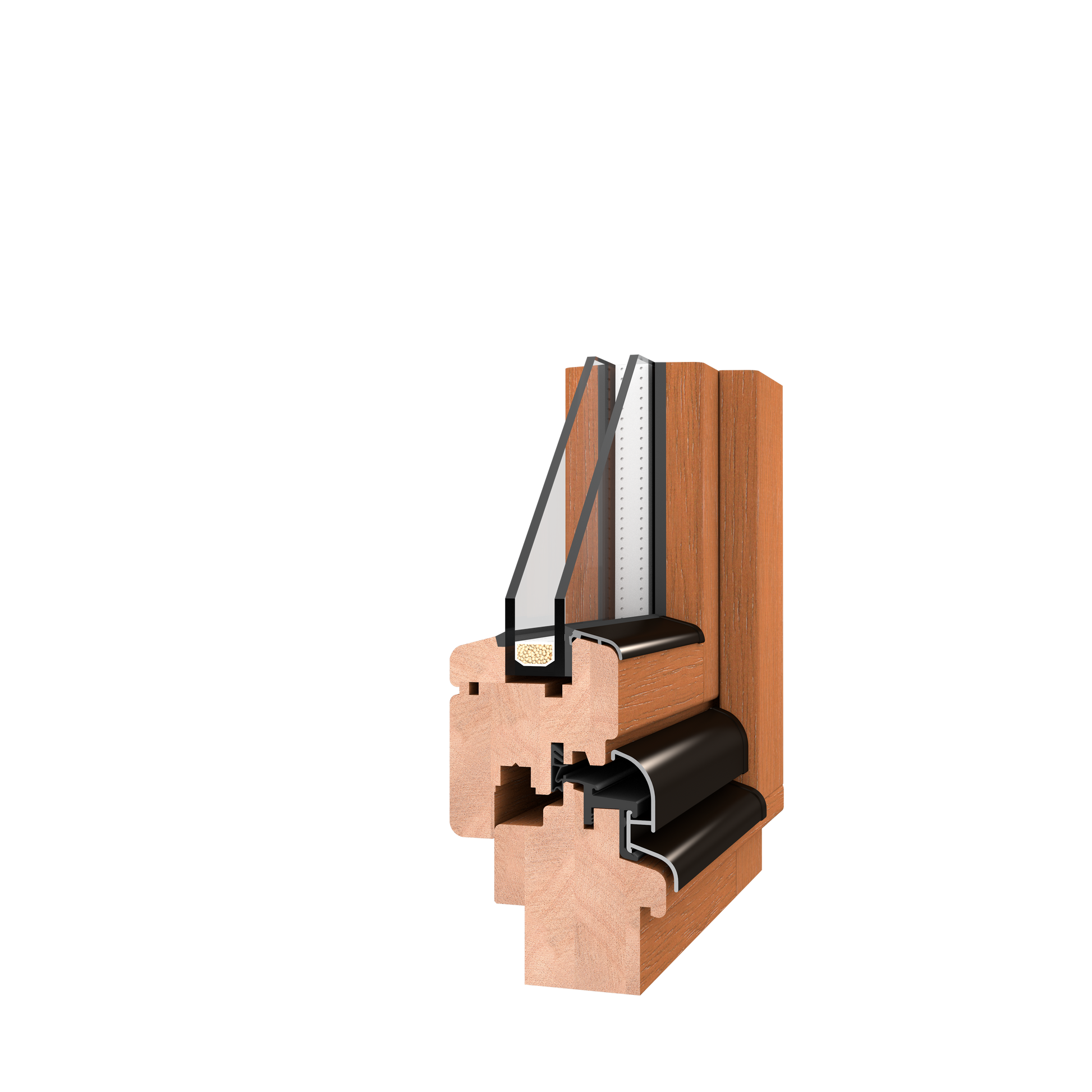

Softline 68 mm

• Max Glazing Thickness: 32 mm
• Glazing: Double glazing standard (24 mm), with options for triple or quad-glazing
• Thermal Transmittance (Uw):
• Wood Options: Meranti 450+, Pine
• Hardware: Maco Multi Matic KS with two anti-burglary bolts, misplacement block, sash lift, and optional hidden hinges
• Ventilation: Micro-ventilation slot for tilt-and-turn windows
• Frame Material: Galvanized steel (standard); optional Swisspacer Ultimate (various colours)

Other Available Systems in the Softline Range

Softline 78 mm

• Max glazing: 44 mm
• U-value: 0.6 W/(m²K)
• Extra internal seal for improved insulation

Softline 88 mm (Price on application)

• Max glazing: 54 mm
• U-value:
• Extra internal seal standard
• Enhanced glazing options: sound insulation, safety, anti-burglary, ornamental, and solar-protective glass
